TRUCKMAN Brand 6 Axle 40m3 Dump Trailer For Ghana
-1. 40m3 Dump Trailer Detail.
6 axle 40m3 dump trailer special design for the Ghana, suitable for bauxite, manganese ore, limestone etc haulage from mining site to loading port (Takoradi port). Also the axle suspension adopt the air and mechanical type, meet the loading request and also can help reduce the fuel consumption
-. The whole 40m3 dump trailer bucket adopt the manganese plate Q345. This collocation can assured the trailer meet the different road condition, and reduce the total cost.
-. The 40m3 dump trailer axle using FUWA brand 16 tons, total 6x16 tons. Can loading more than 80 tons cargoes
-2. 40m3 Dump Trailer Specification.
|
Description |
Parameter Value |
|
Product Name |
40m3 Dump Trailer |
|
Application |
For transport bauxite, limestone, manganese etc |
|
Main Frame |
Bottom 18mm, middle 8+8mm, upper 16mm |
|
Axle |
6 axle, 6x16000 tons, FUWA brand |
|
Suspension |
Air and mechanical model, heavy duty |
|
Support Leg |
28 tons, JOST or FUWA brand |
|
Brake System |
WABCO brand |
|
Fifth Wheel |
3.5 inch, for heavy duty loading |
|
Tire |
385/80R22.5 & 315/80R22.5, LINGLONG brand |
|
Rim |
18mm thickness, for heavy loading |
|
Bucket |
11500x2300x1500mm, 40m3 |
|
Loading Tons |
80 tons |
|
Dimension |
12500x2500x3450mm |
The 40m3 dump trailer specification only for your reference, we will recommend other model dump trailer according to your request.

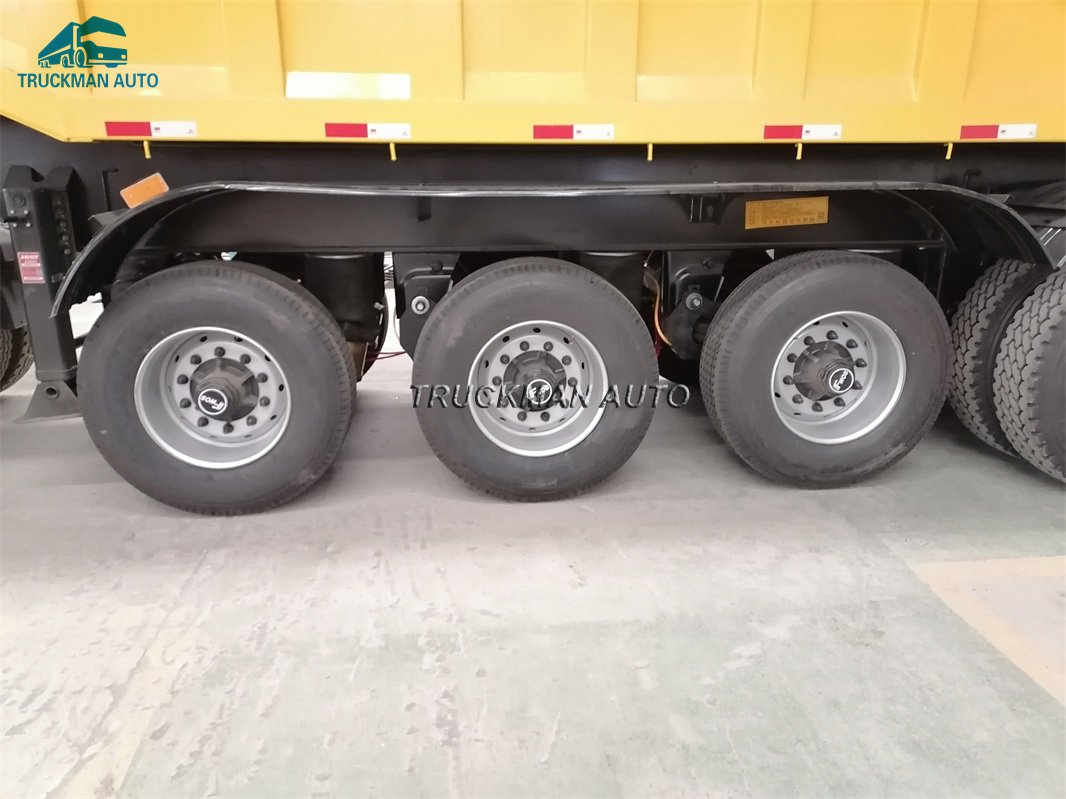

-3. 40m3 Dump Trailer Suspension Picture.
Our 40m3 dump trailer suspension is two model, air and mechanical suspension. When loading less cargoes, like loading 30 tons can lifting the front 3 axle, to save the fuel. When over 70 tons can put all axle down increase the dump trailer loading capacity.

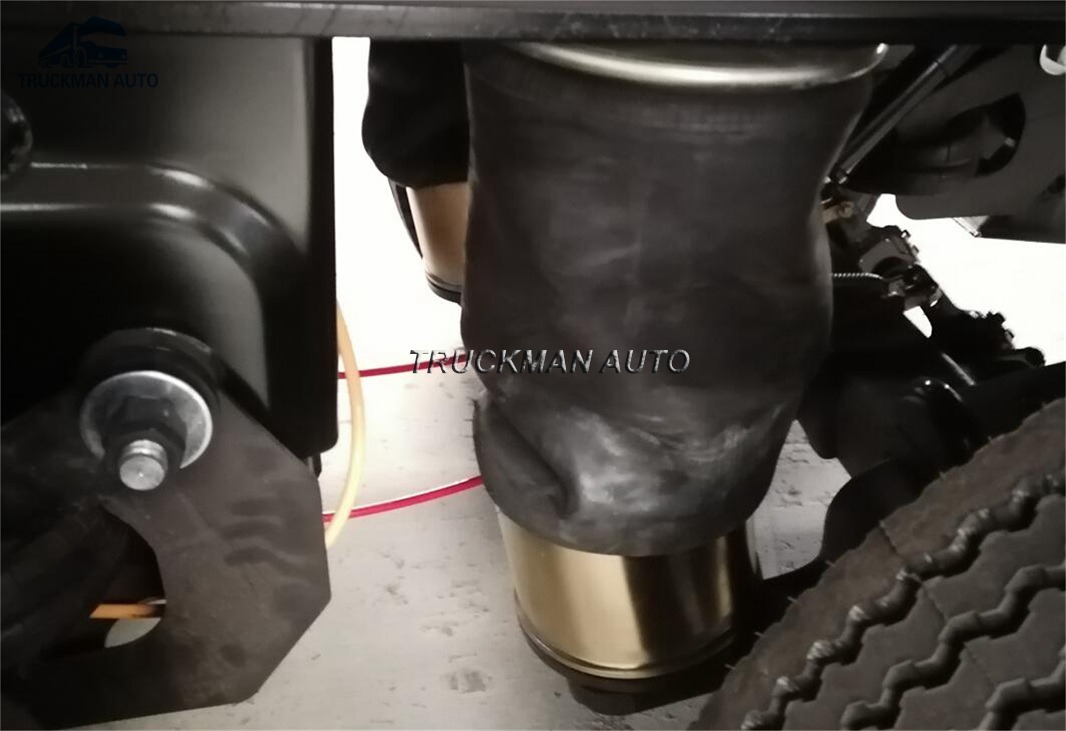

Air suspension for dump trailer
