TRΛKMAN Brand 40m3 Compressor Bulk Cement Tank Trailer
-1. TRΛKMAN Brand Compressor Bulk Cement Tank Trailer Main Specification
-. 35-54m³ tank body.
-. 3 Axles, use FUWA and BPW brand.
-. Transport cement etc
-. Carbon steel material
-. Choose stronger tire with TRIANGLE, LINGLONG etc brand tire.
-. Recommended WABCO brake system, for the safety driven.
-. DEUTZ / WEICHAI Compressor engine
|
Trailer Model |
45 M3 BULK CEMENT SEMI TRAILER |
|
Overall Dimension (Lx W x H)(mm) |
10700x2500x3950mm |
|
Function |
transport bulk powder |
|
Loading Weight( KG) |
54000 |
|
Thickness(mm) |
Tank body: Q235 5mm carbon steel End plate: Q235 5mm carbon steel |
|
Air compressor |
12m3/minute Bohai brand |
|
Engine |
Diesel engine: Weichai Tianhe 4102 |
|
Compartment |
1 inner fluidized bed: air bag |
|
Axle |
3x13Ton, FUWA or BPW brand |
|
Suspension system |
Mechanical leaf spring suspension |
|
Leaf spring |
90(W)mm*13(Thick)mm*10 Layer |
|
Manhole cover |
500mm manhole cover. 2 sets |
|
Landing Gear |
28Ton, double speed,Yahua brand |
|
Tire |
12R22.5, LINGLONG brand 12units |
|
Traction Pin |
2” or 3.5” bolts in, changable |
|
Spare Wheel Bracket |
2 pieces |
|
Tool Box |
1 Standard |
|
Side guard |
According to customer’s requirement |
|
Brake system |
Dual Line braking system |
|
Emergency valve |
WABCO |
|
Brake air chamber |
Six big double air chambers |
|
Electrical system |
1. Voltage: 24v 2. Receptacle: 7 ways (7 wire harness) |
|
Tail lamp with turn signal, brake light & reflector, side lamp etc. |
|
|
One set 6-core standard Cable. |
|
|
Painting |
Shot blast at Standard SA 2.5 prior to application of primer, polyurethane top coat. Total DFT not less than 100um,A layer of anti-rust paint,two-layer finish. |
|
Packing |
Polish with wax before shipping |

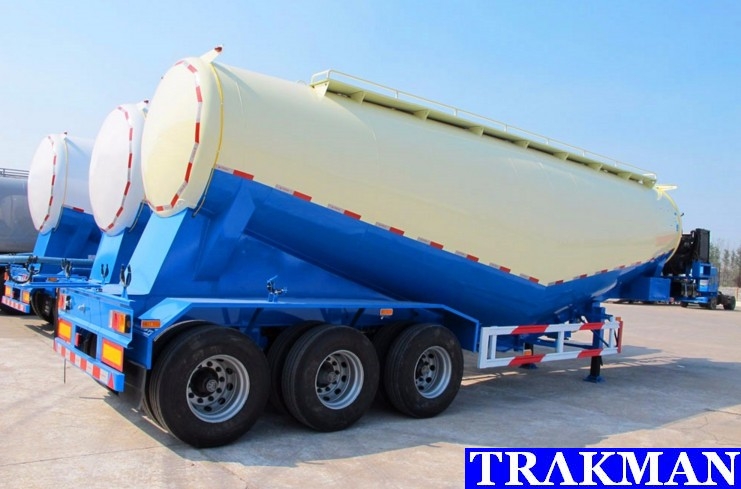

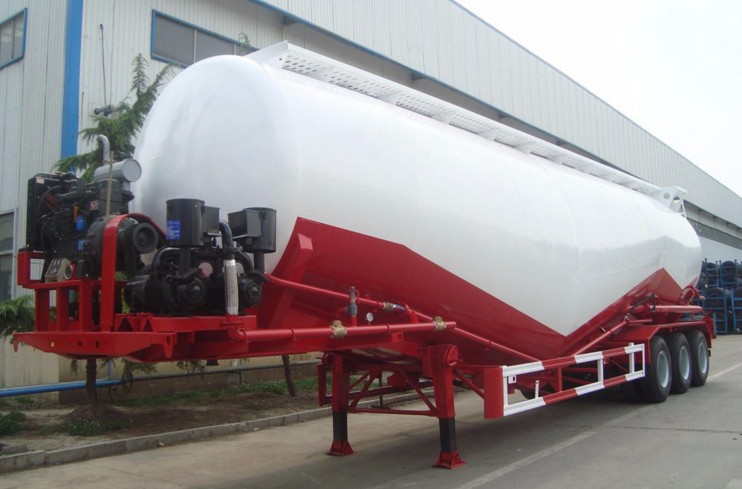

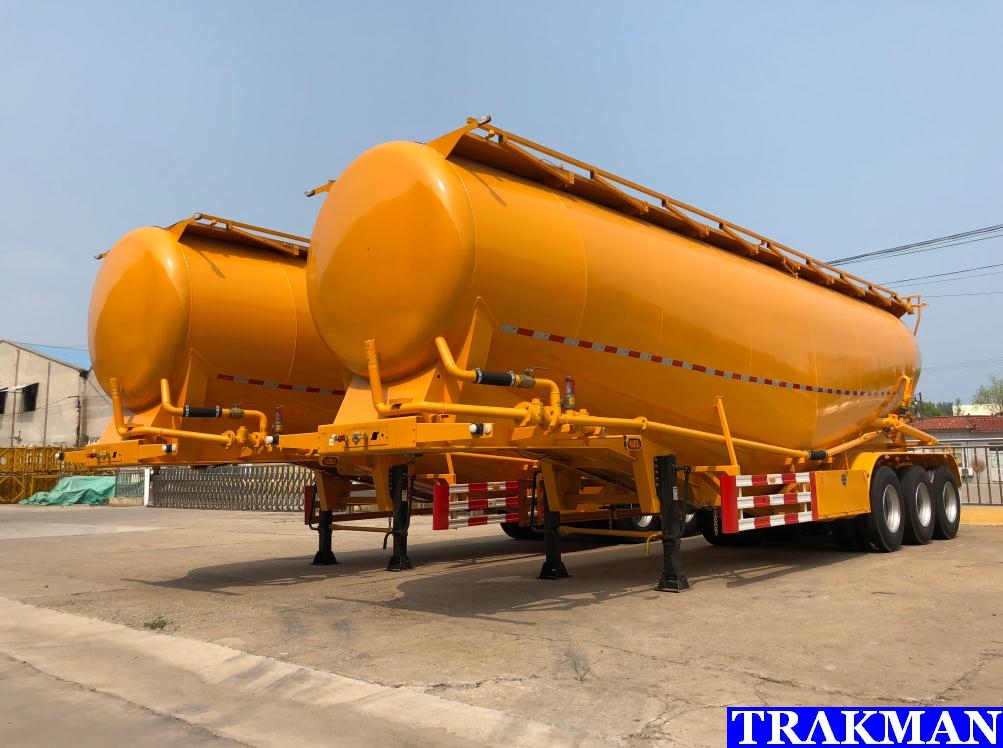

-2. Picture For Reference.

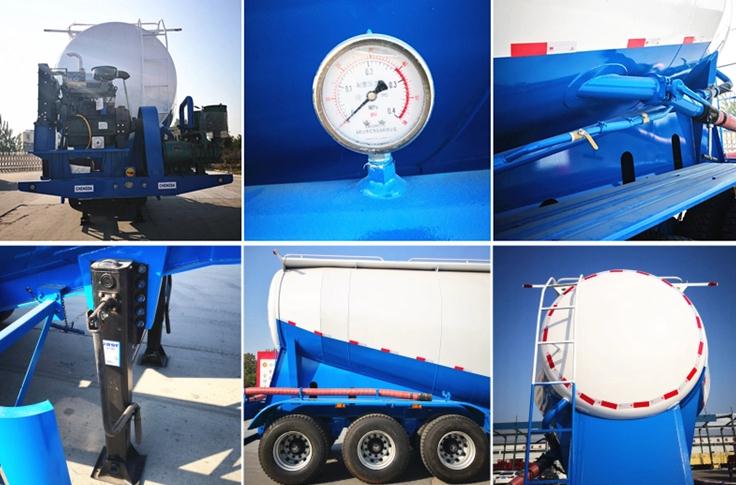

-3. Detail Picture.

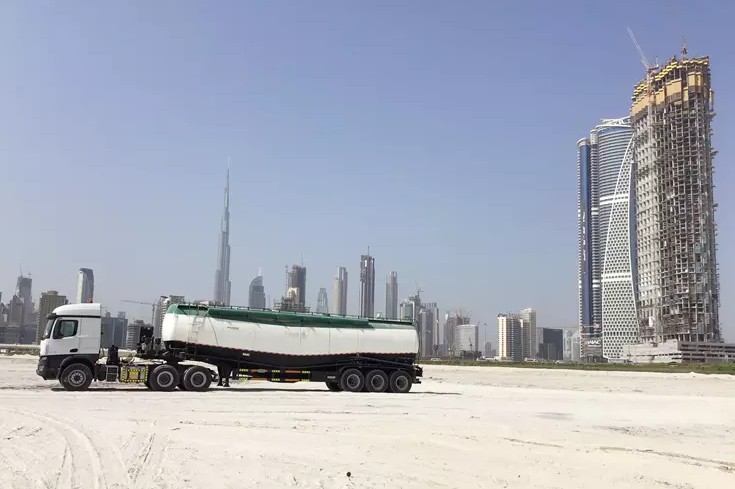

-4. Customers Received Goods.
Our customers received machinery last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
