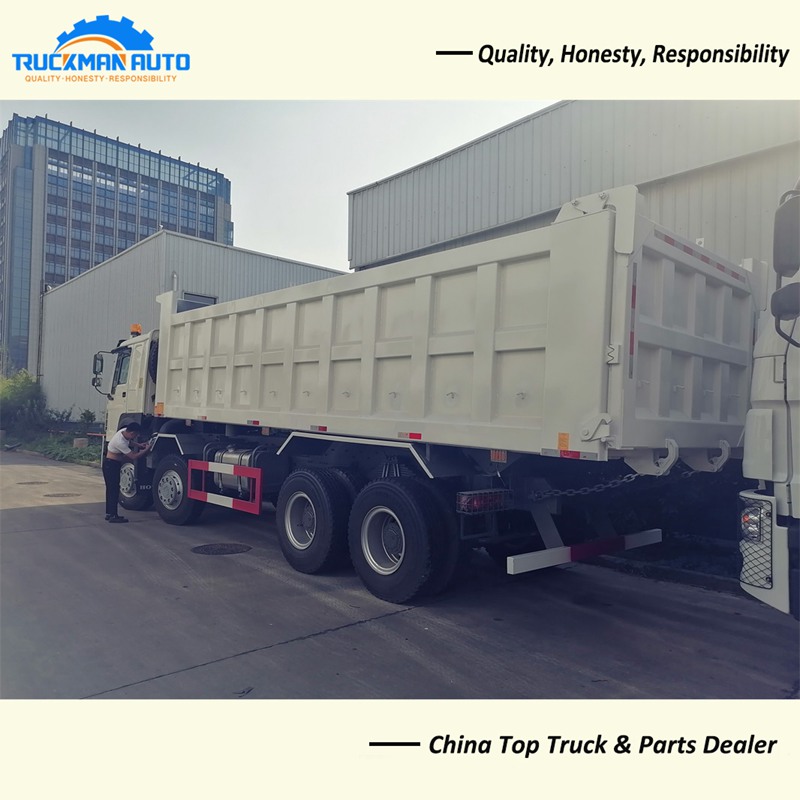

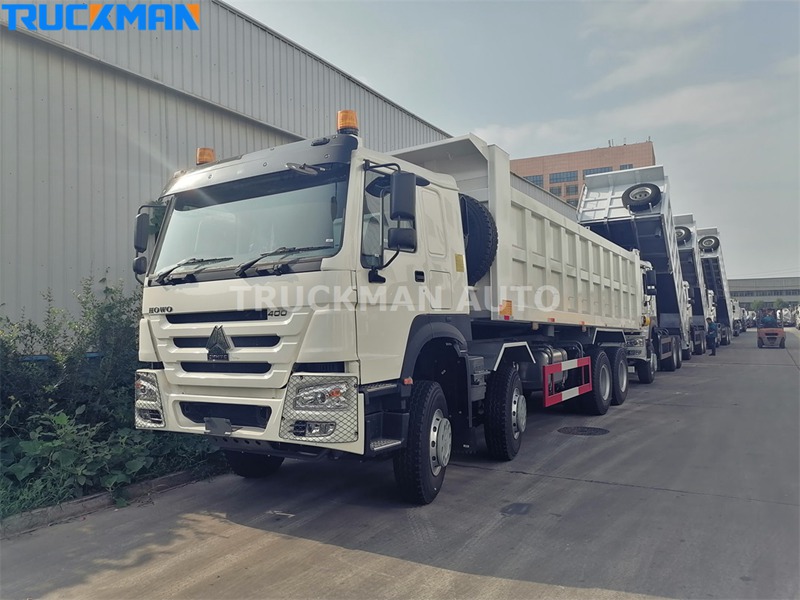

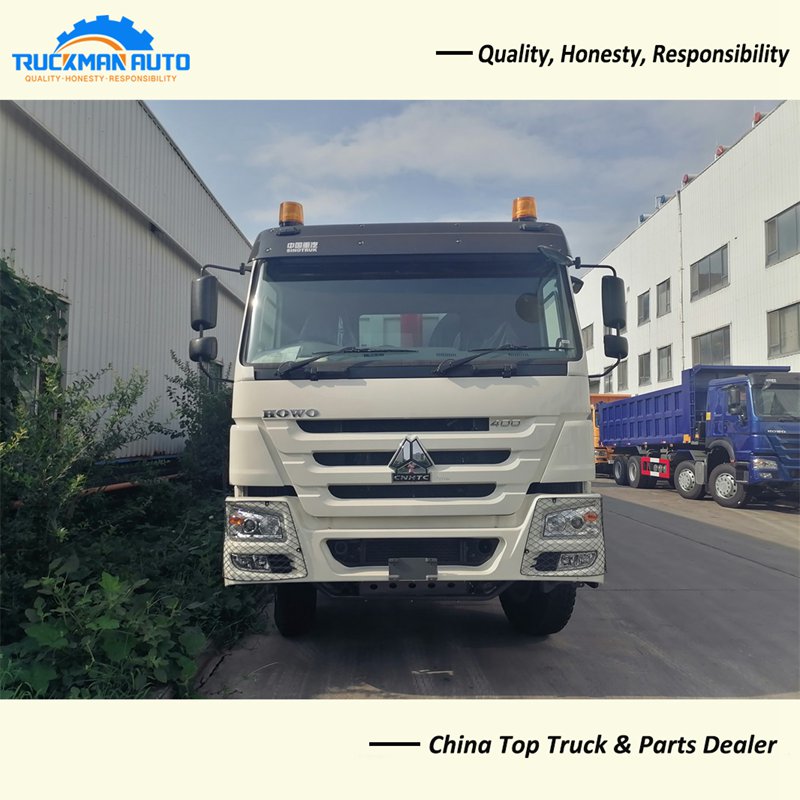

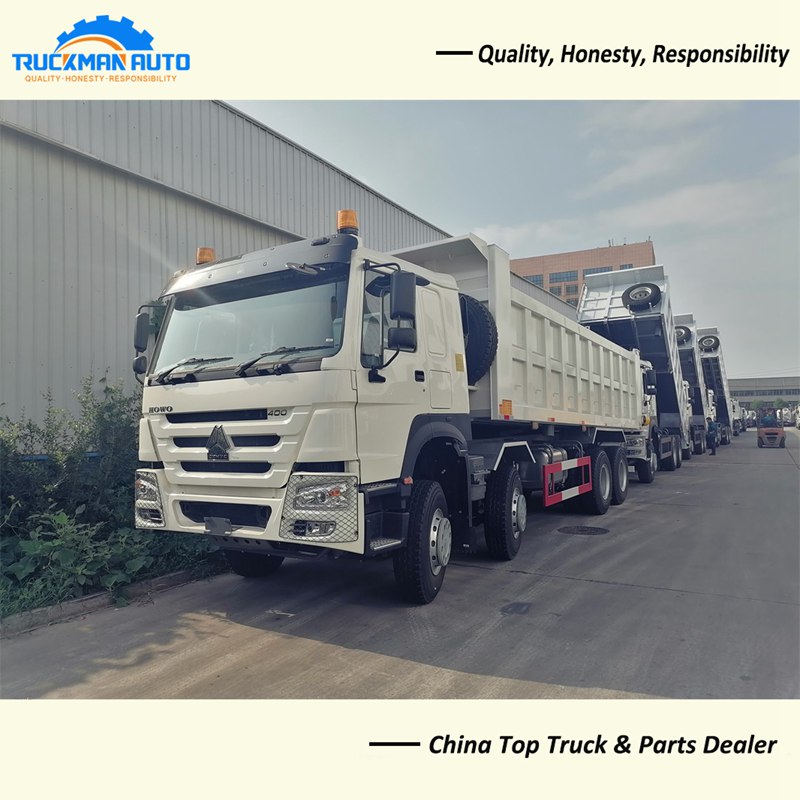

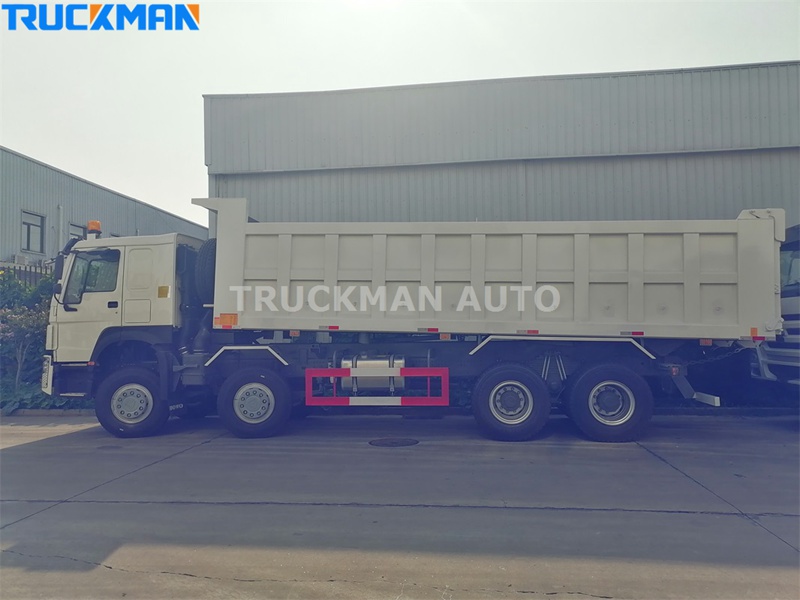

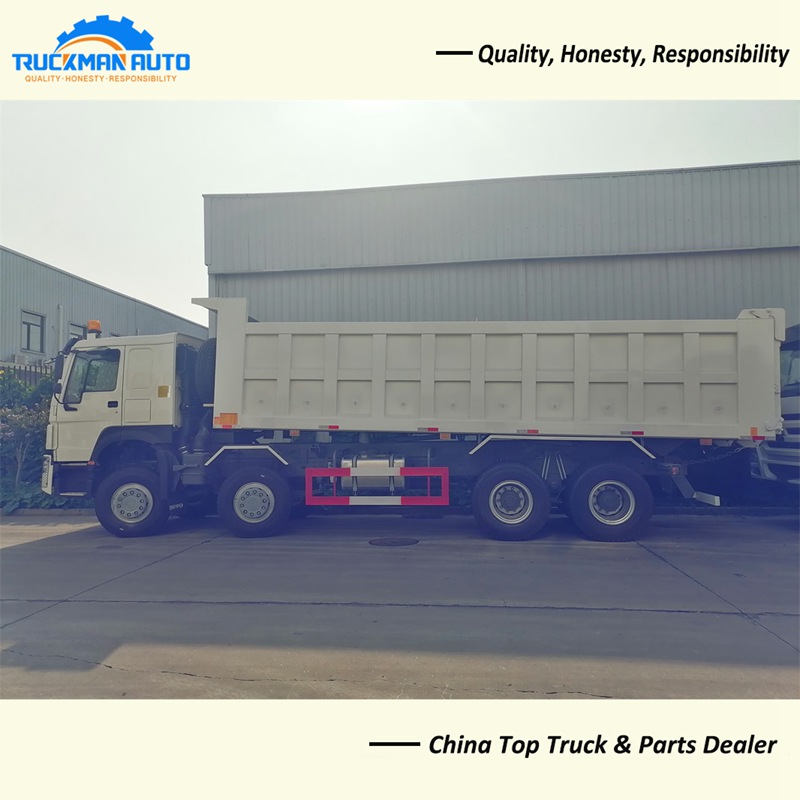

Sino Truck 50 Tons Dump Truck
Sino Truck 50 Tons Dump Truck Features
The sino truck dump truck total have 12 wheel, cargo body is 25 cubic meter, max loading capacity is 50 tons. The cargo body adopt the manganese steel to meet the heavy duty and wear-resistant, impact-resistant requirements.
-. The engine horsepower is 400HP, can meet the requirements of most working conditions.
-. The tire is tubeless model, meet the high temperature resistance request, not easy to blow out tires.
Sino Truck 50 Tons Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
Sino Truck 50 Tons Dump Truck |
|
Application |
Construction and mining work |
|
Engine |
WP12.400E201, 400HP |
|
Cabin |
HW76 model, with one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
400L |
|
Tire |
315/80R22.5, 12+1 pcs |
|
Cargo Body |
7300x2300x1500mm |
|
Loading Capacity |
50 Tons |
Sino Truck 50 tons dump truck specification only for your reference, we will recommend other model SINOTRUCK 50 tons dump truck basic your request.
Sino Truck 50 Tons Dump Truck Gearbox Detail
The Sino truck 50 tons dump truck match 10 forward and 2 reverse gearbox, model is HW19710. This model gearbox It has been used in more than 1 million vehicles, with very stable performance, mature technology and high reliability. Shifts gears quickly and is easy to maintain. With HW50 model power take off, supply power to cargo body lifting system, to helps to raise and unload cargo body quickly. There are also have other model gearbox optional, such as HW19712, HW19710C etc.
