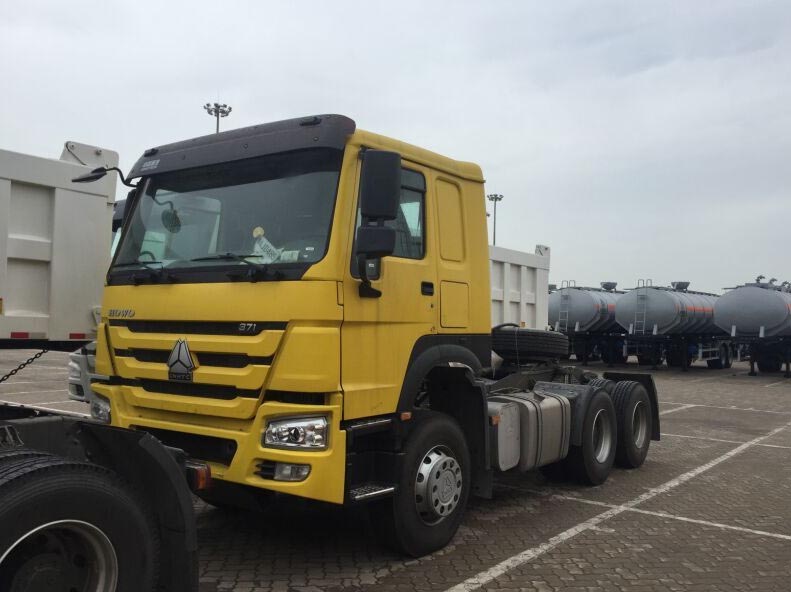

SINOTRUK HOWO 6x4 371HP Tractor Truck Head
Product Name : SINOTRUK HOWO 6x4 371HP Tractor Truck Head
Product ID : ZZ4257S3241W
Engine : WD615.47, 371HP
Gearbox : HW19710
Cabin : With one sleeper, A/C
Axle : HC16,
Loading Capacity : 70 tons
Directions
SINOTRUK HOWO 6X4 Prime Mover
-1). Product features:
a. Oil saving, safety, driving comfort, reliability, low application cost
b. Maintenance cost is lower.
c. Can loading 50-60 tons.
d. Big horsepower engine is available
-2). Specification For The HOWO Prime Mover
| Truck model | ZZ4257S3241W | |
| Dimensions (unloaded) | 6800x2496x3386mm | |
| Approaching angle/departure angle (°) | 16/70 | |
| Overhang (front/rear) (mm) | 1500/725 | |
| Wheel base (mm) | 3200+1350 | |
| Max speed (kph) | 102 | |
| Curb weight (kg) | 9180 | |
| Loading weight (kg) | 50000 | |
| Engine | Model | WD615.47, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and interfolding, directly injection |
| Fuel type | Diesel | |
| Horse power, max (kW/rpm) | 371HP,247/2200 | |
| Emission | Euro 2 | |
| Fuel tanker capacity | 400 | |
| Transmission | Model | HW19710 |
| Brake system | Service brake | Dual circuit compressed air brake |
| Parking brake | spring energy, compressed air operating on rear wheels |
|
| Steering system | Model | ZF8198 |
| Front axle | HF9 Drum, Steering with double T-cross section beam | |
| Rear axle | HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels |
|
| Tyre | 12.00R20, radial tire | |
| Electrical system | Battery | 2X12V/165Ah |
| Alternator | 28V-1500kW | |
| Starter | 7.5kW/24V | |
| Cab | HOWO76 cab, single-sleeper, all-steel forward control, 55º hydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
|
-3). Truck Detail Picture
a. Cabin: HW76 and HW79 model, have one or two sleeper, the driver can have a rest also. With A/C. Driven will more comfortable and relax.
b. Engine: 371-420HP. Easily suitable for loading 50 tons.
c. Gearbox: 10 forwarder gear and 2 reserve gear, gear shift is very easy.
-4) Shipment Picture
a. You can choose RO-RO, BULK, FRAME ship for the delivery.
b. We also will recommend suitable and safety delivery term for you
