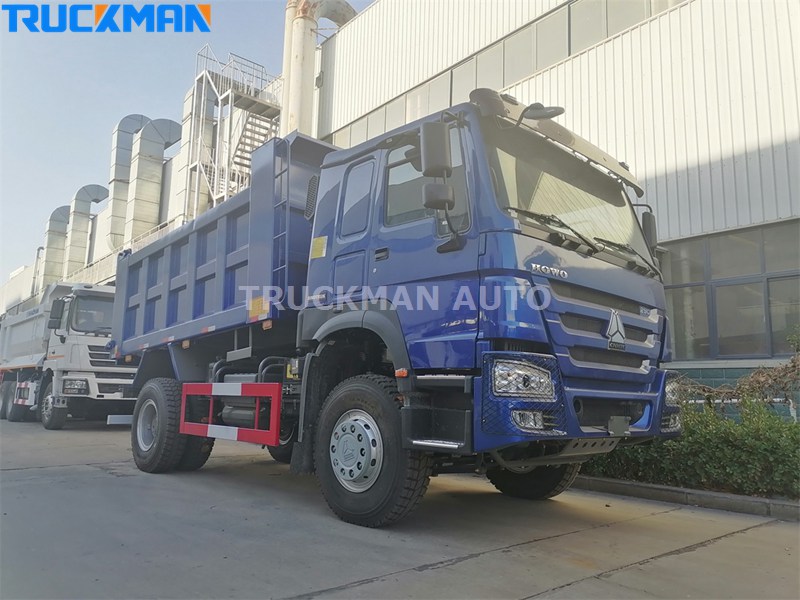

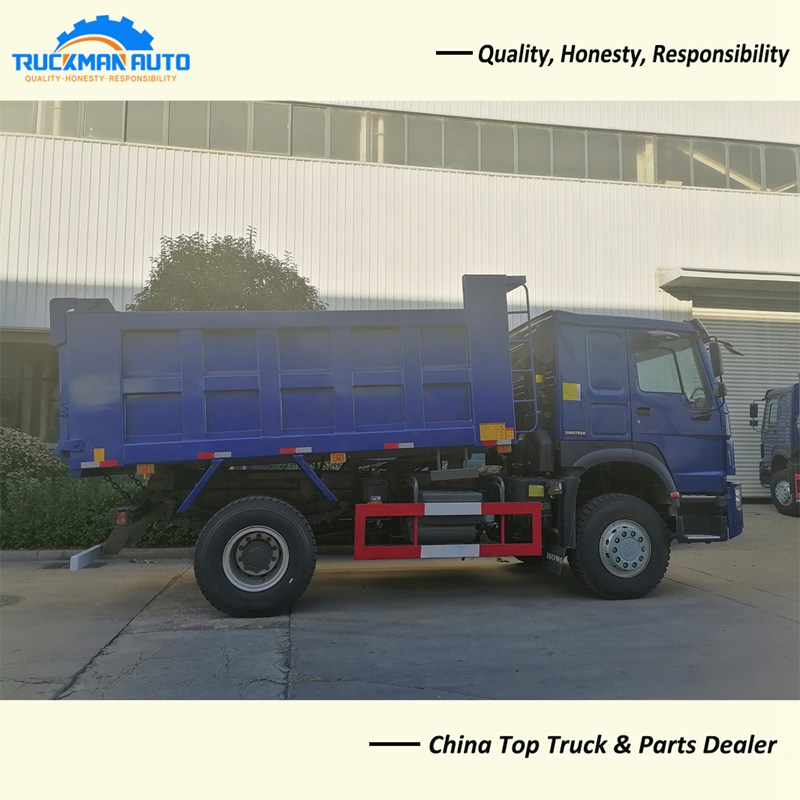

SINOTRUK HOWO 6 Wheel Dump Truck
SINOTRUK HOWO 6 Wheel Dump Truck Features
SINOTRUK HOWO 6 wheel dump truck is used to city construction, the loading capacity around 15 ton. Adopt the SINOTRUK 290HP engine, 6 cylinder, optional the EVB.
-. With high level bumper, chassis with high pass ability.
-. Manganese plate cargo box for sand, stone and gravel etc haulage.
SINOTRUK HOWO 6 Wheel Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 6 Wheel Dump Truck |
|
Application |
Transport mining material etc |
|
Loading Capacity |
15,000kg |
|
Engine |
WD615.87, 290HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 pcs, radial model |
|
Cargo Box |
4500x2300x1300mm, bottom 8mm, side 6mm |
|
Front Axle |
9.5 ton, 1x9500kg |
|
Driving Axle |
16 ton, 1x16000kg |
|
Fuel Tank |
300L |
|
Dimension |
7500x2560x3450mm |
The SINOTRUK HOWO 6 wheel dump truck specification only for your reference, we will recommend other model SINOTRUK HOWO dump truck basic your request.

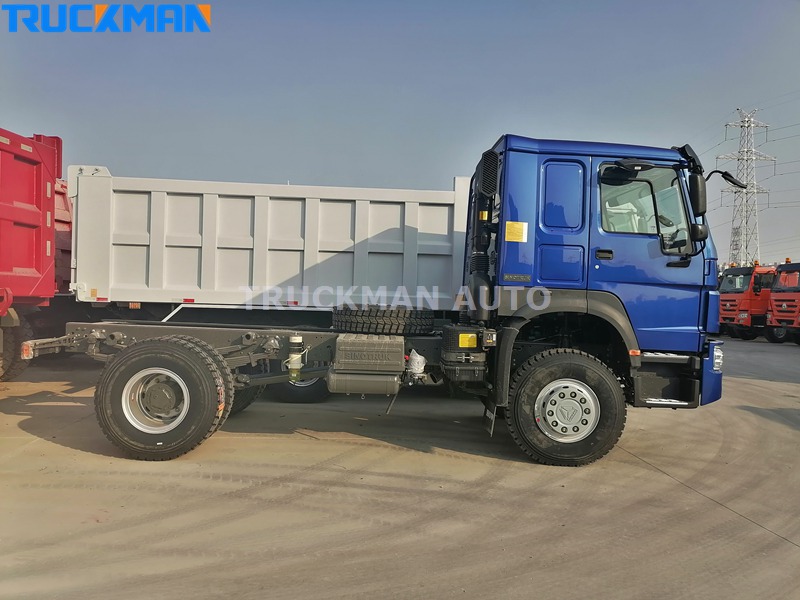

SINOTRUK HOWO 6 Wheel Dump Truck Chassis
The HOWO 6 wheel dump truck is equipped with a 9.5 tons reinforced front axle and reinforced steel rims, which are durable and not easily deformed, and are more in line with the use scenario of urban construction sites. The addition of cross-tie bars, as well as the balanced suspension structure, enhances the chassis' anti-torsion capability and reliability.
