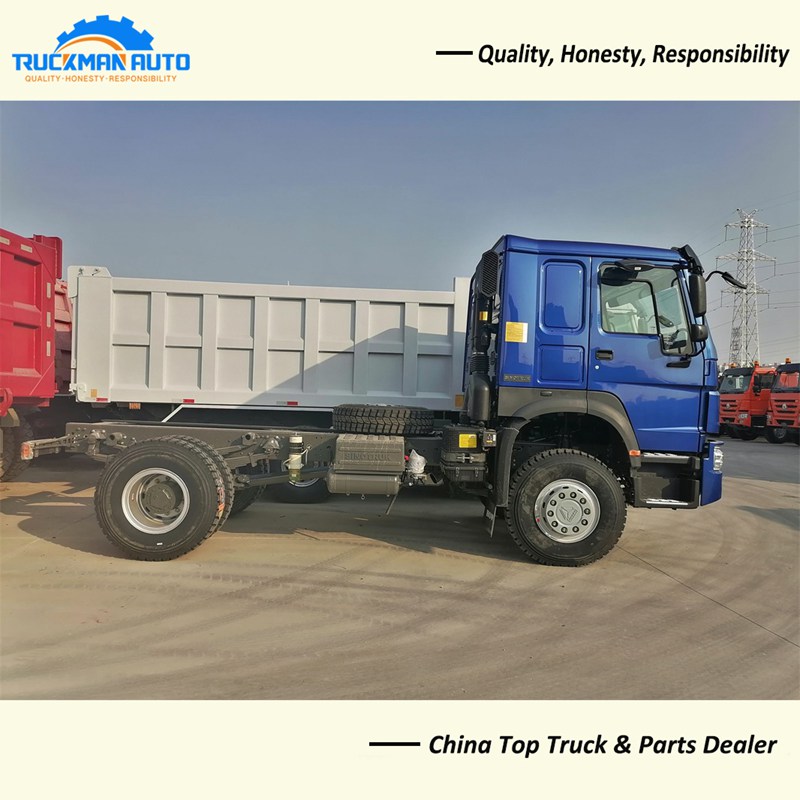

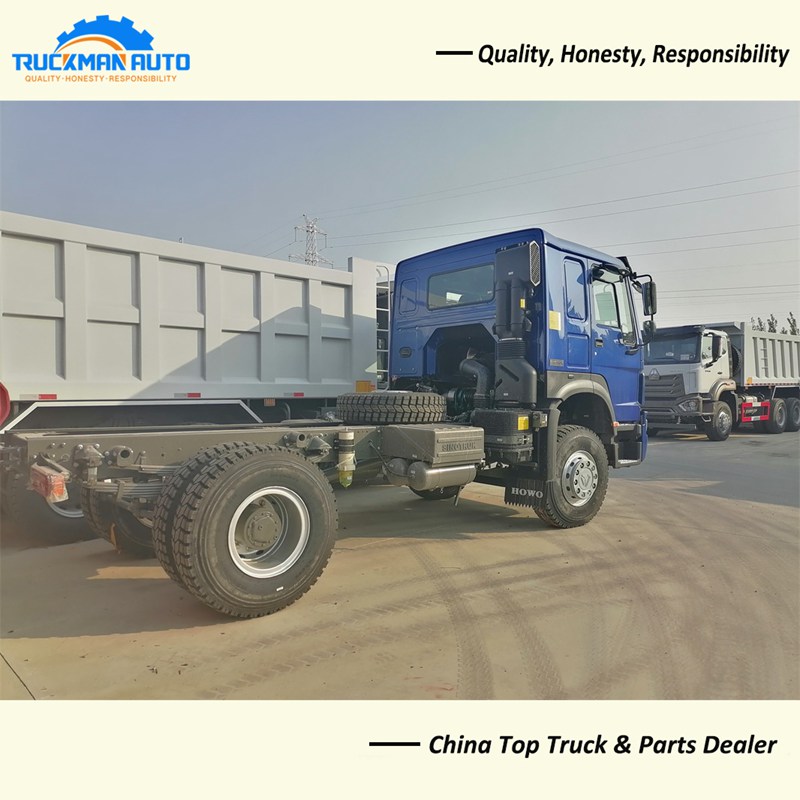

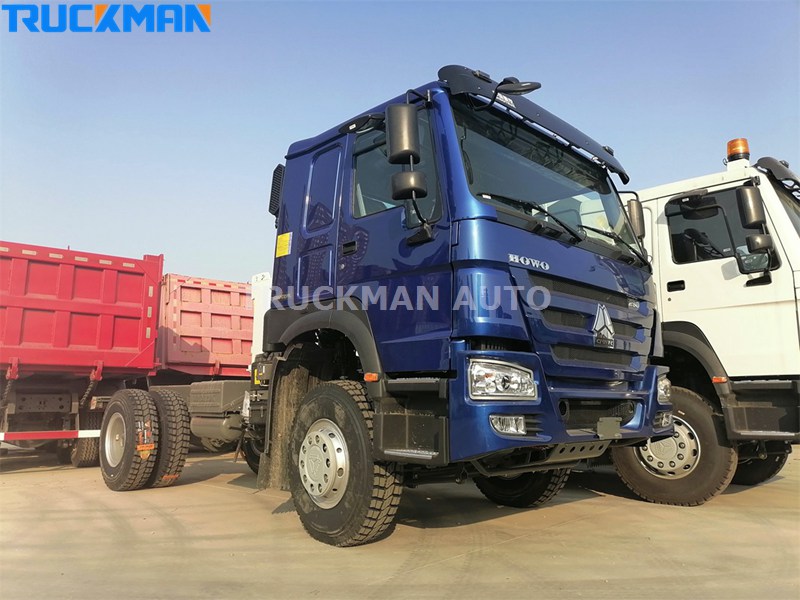

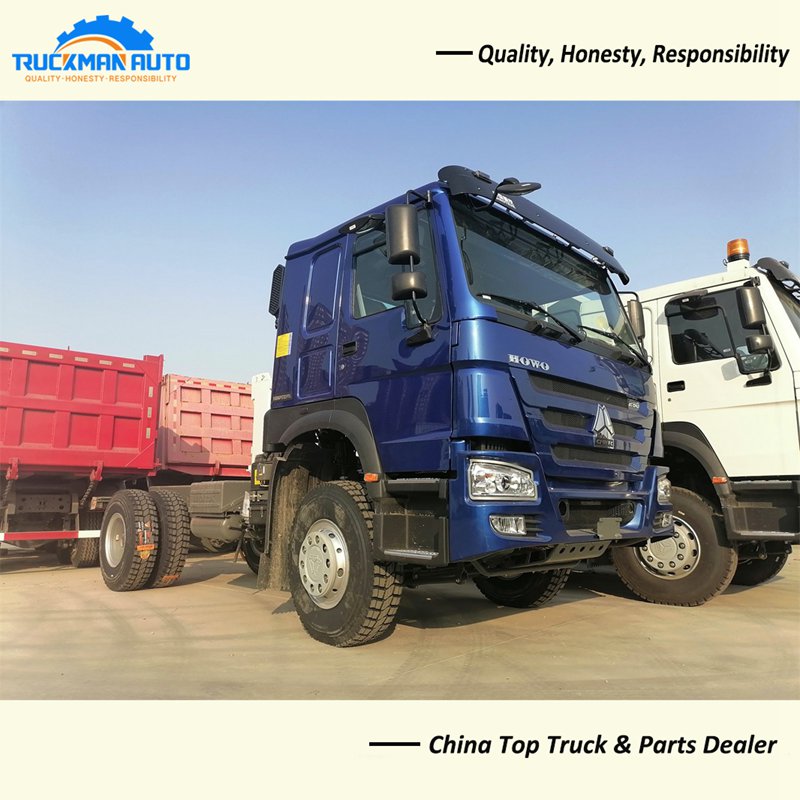

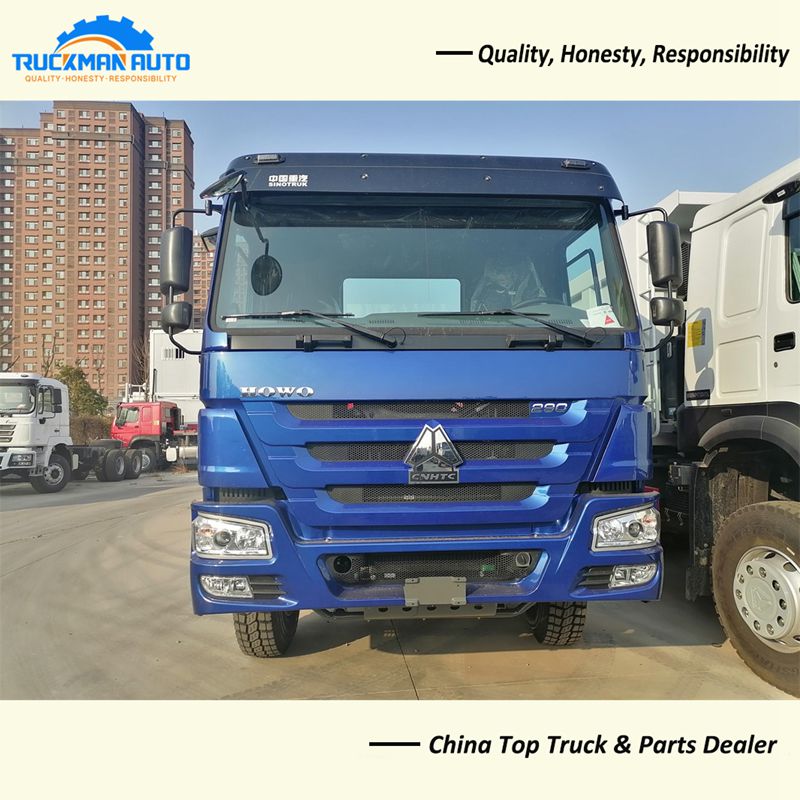

SINOTRUK HOWO 4x2 Tipper Truck Chassis
SINOTRUK HOWO 4x2 Tipper Truck Chassis Features
4x2 tipper truck suitable for loading 10-15 tons cargoes, for light duty work. And cargo box material have Q355 manganese and NM450 wear-resistant steel.
-. Transport all kind of mining and construction material.
-. Engine horsepower have 266HP, 290HP, 336HP optional.
SINOTRUK HOWO 4x2 Tipper Truck Chassis Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 4x2 Tipper Truck Chassis |
|
Application |
Transport sand and gravel |
|
Loading Capacity |
15,000kg |
|
Engine |
WD615.87, 290HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
315/80R22.5, 6+1 pcs, tubeless model |
|
Cargo Box |
4300x2300x1200mm |
|
Front Axle |
VGD95, 1x9500kg |
|
Driving Axle |
HC16, 1x16000kg |
|
Fuel Tank |
300L |
|
Dimension |
7600x2560x3200mm |
The SINOTRUK HOWO 4x2 tipper truck specification only for your reference, we will recommend other model SINOTRUK tipper truck basic your request.

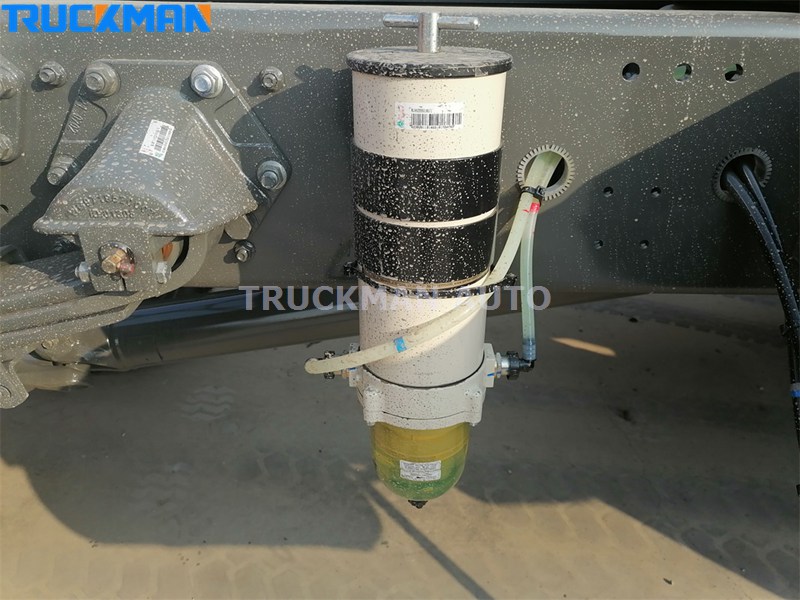

SINOTRUK HOWO 4x2 Tipper Truck Parker Filter Detail
Our tipper truck is equipped with Parker fuel filter, which has good filtration performance and can play a uniform surface filtration performance for 2-200um filter size. It avoids clogging of the fuel system, shortens mechanical wear and tear, ensures stable engine operation and improves reliability. After cleaning, it can be used again without replacement.
