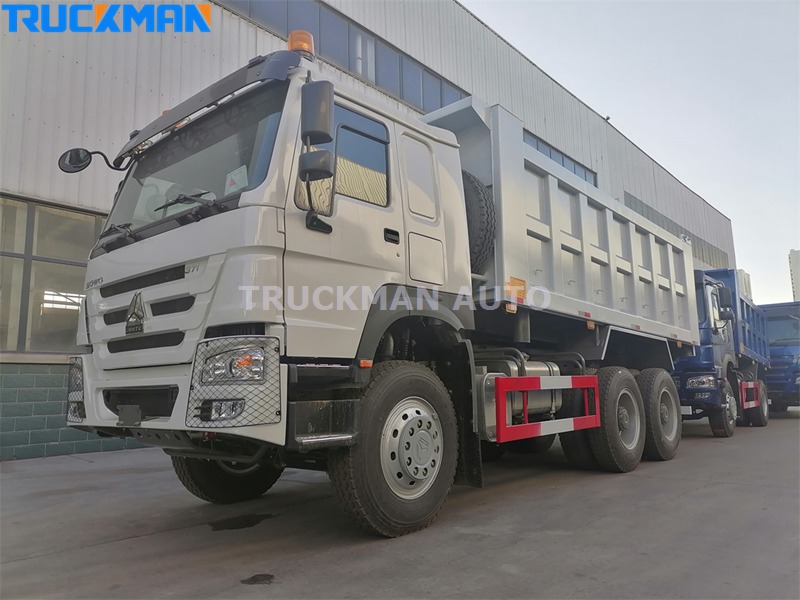

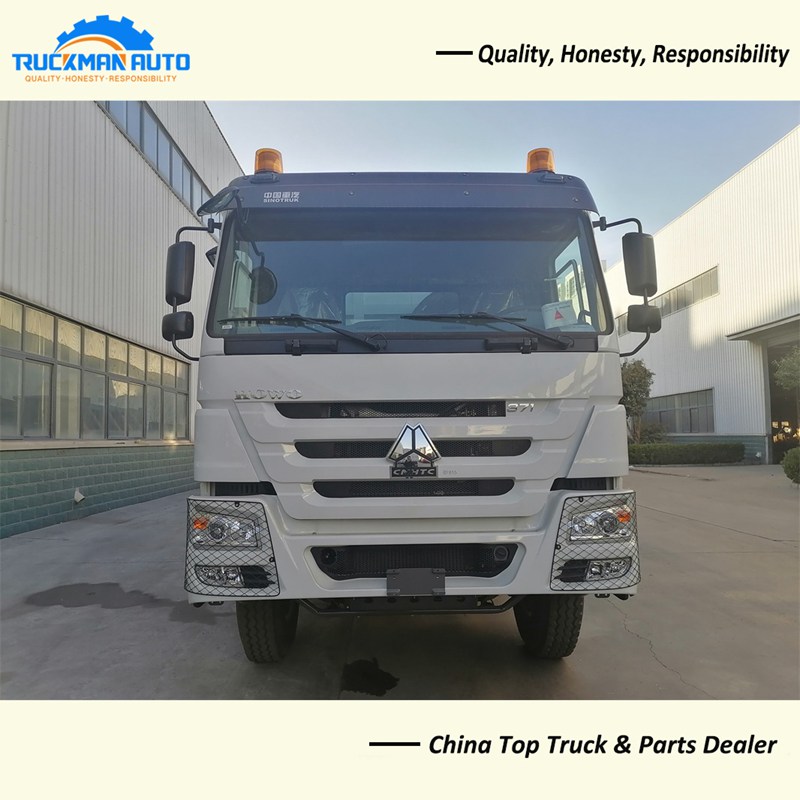

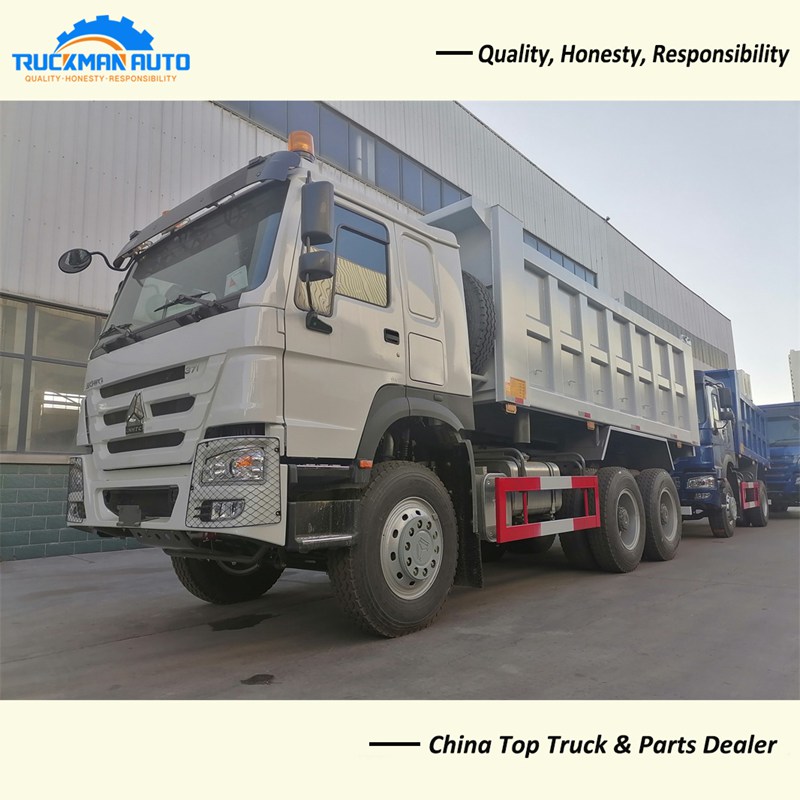

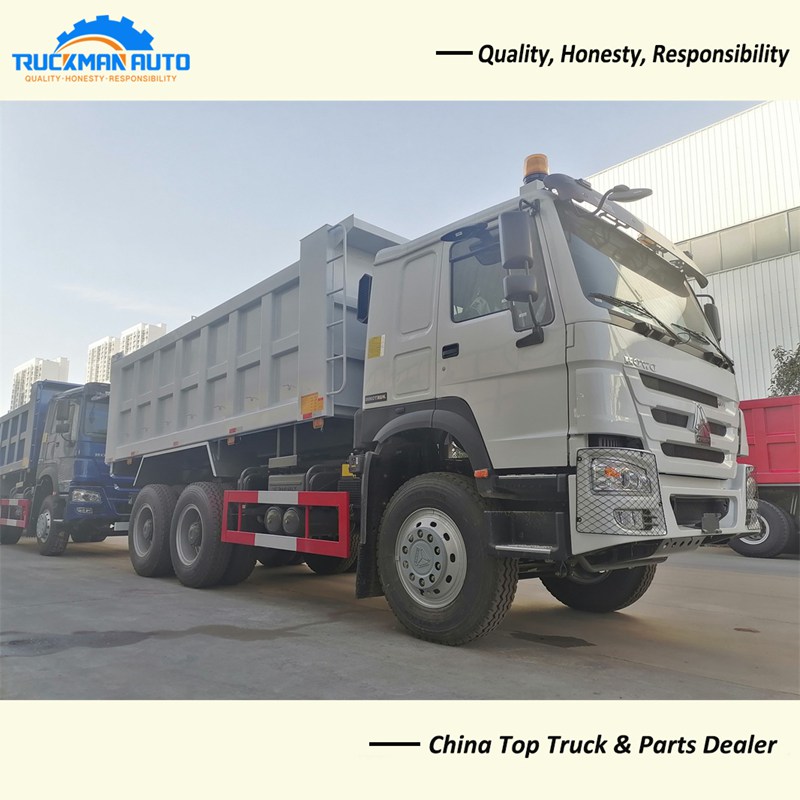

SINOTRUK HOWO 20 Cubic Meter Dump Truck For Mauritania
SINOTRUK HOWO 20 Cubic Meter Dump Truck Features
SINOTRUK HOWO dump truck cargo box have 15-20 cubic meter, loading capacity around 30 tons. The driving type is 6x4, can suitable for construction and mining site work.
-. Tubeless and radial model tire is optional, brand like TRIANGLE, LINGLONG etc.
-. 371HP engine, with 9.726L displacement, 290HP, 336HP and 430HP engine is available.
SINOTRUK HOWO 20 Cubic Meter Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINOTRUK HOWO 20 Cubic Meter Dump Truck |
|
Application |
Transport mining material etc |
|
Loading Capacity |
30,000kg |
|
Engine |
WD615.47, 371HP, 371HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
12.00R24, 10+1 pcs, radial model |
|
Cargo Box |
5400x2300x1500mm, bottom 8mm, side 6mm |
|
Front Axle |
9.5 ton, 1x9500kg |
|
Driving Axle |
16 ton, 2x16000kg |
|
Fuel Tank |
400L |
|
Dimension |
8400x2560x3450mm |
The SINOTRUK HOWO 20 cubic meter dump truck specification only for your reference, we will recommend other model SINOTRUK HOWO dump truck basic your request.

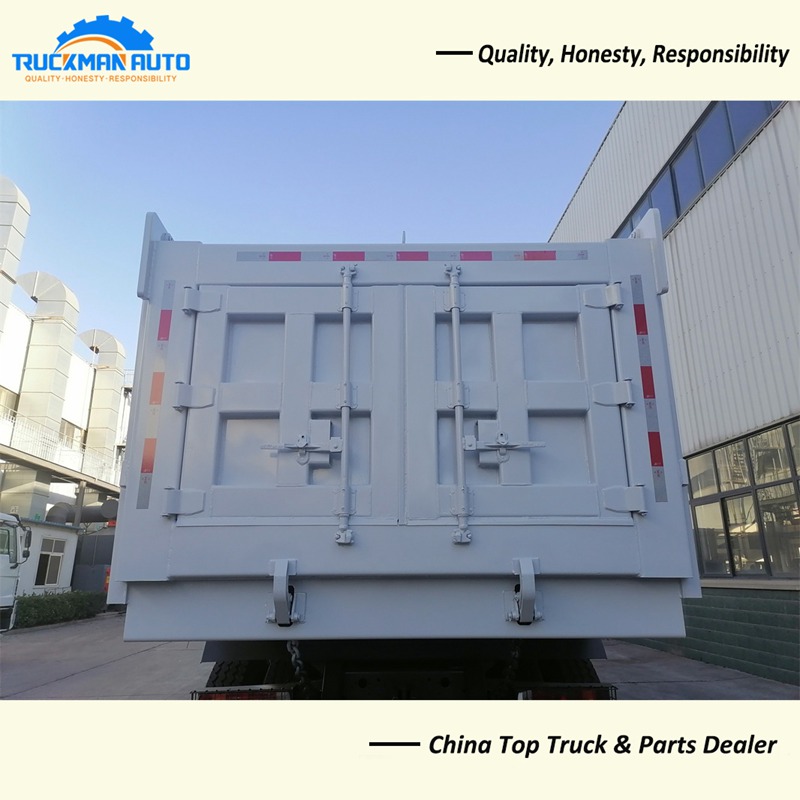

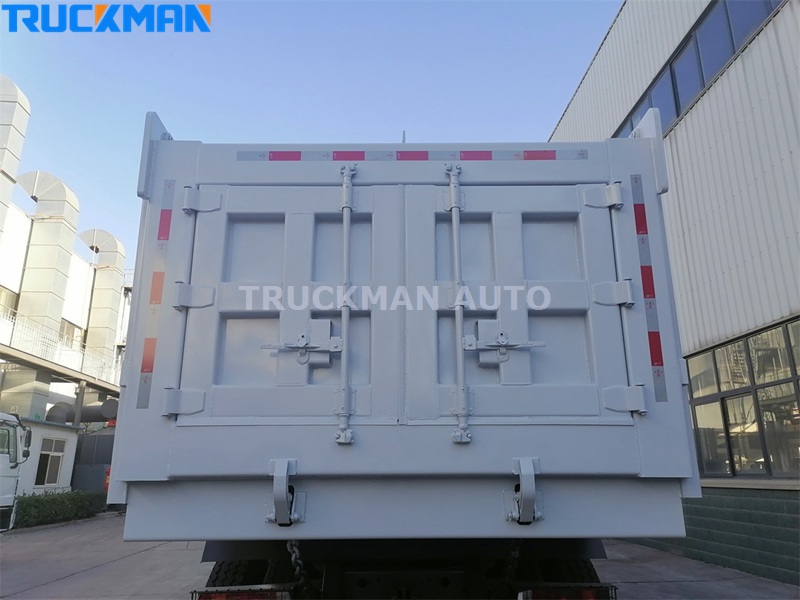

SINOTRUK HOWO 20 Cubic Meter Dump Truck Cargo Box
The dump truck cargo box is 20 cubic meter, and material is Q355 manganese plate. Suitable for stone, sand, gravel and limestone etc transport, welding by robot arm automatic tech, which can guarantee the welding not open after using with long time.
