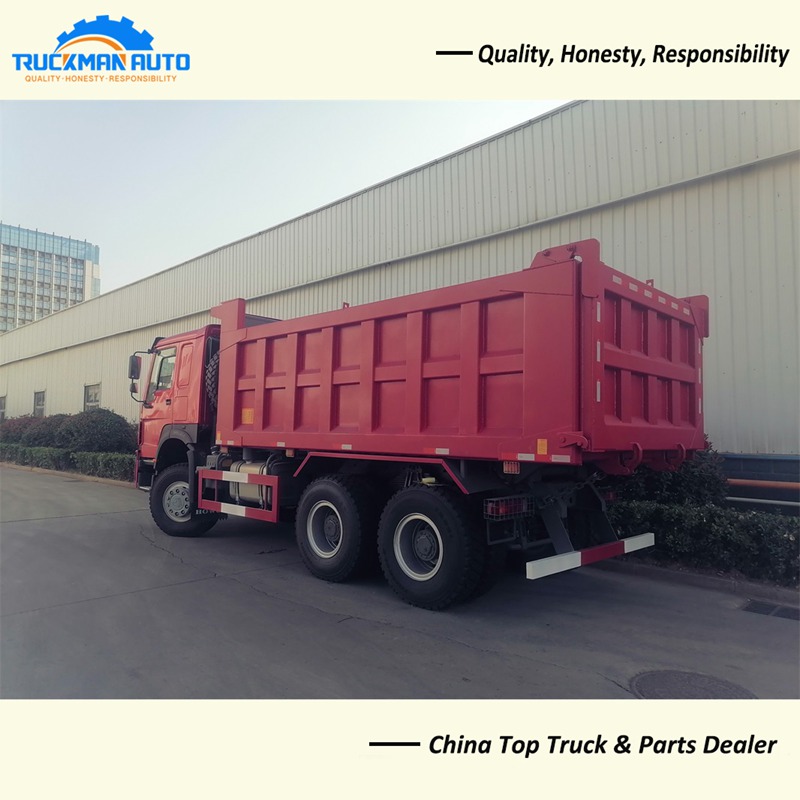

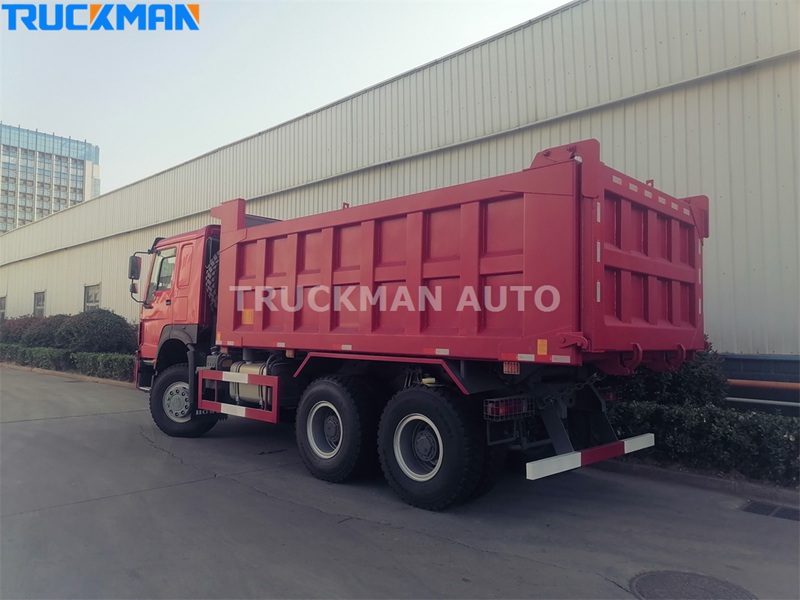

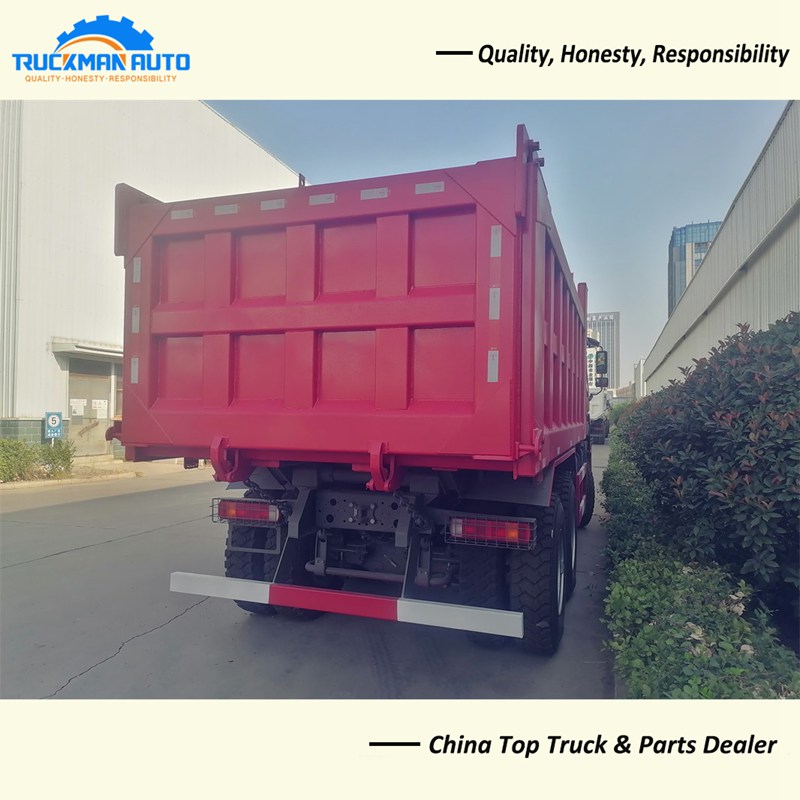

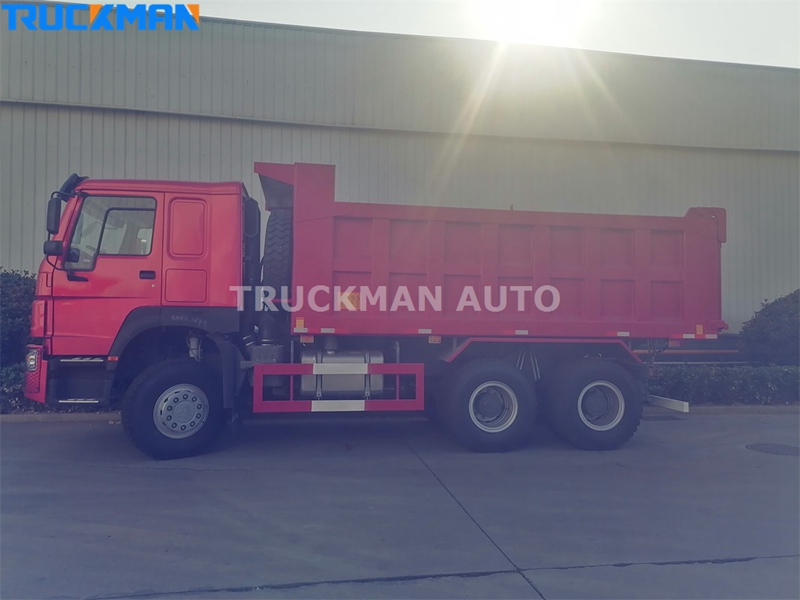

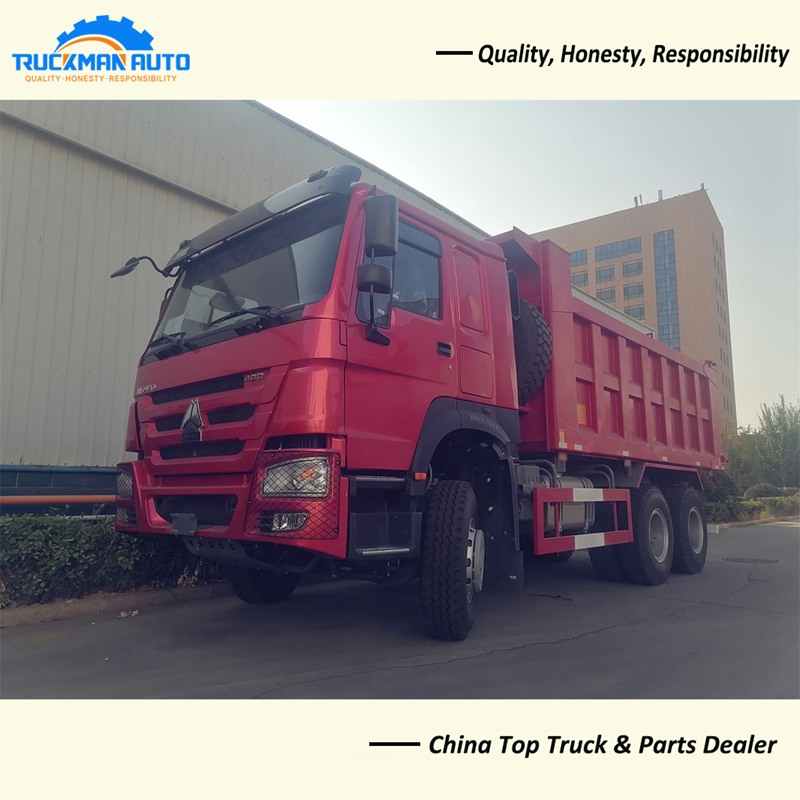

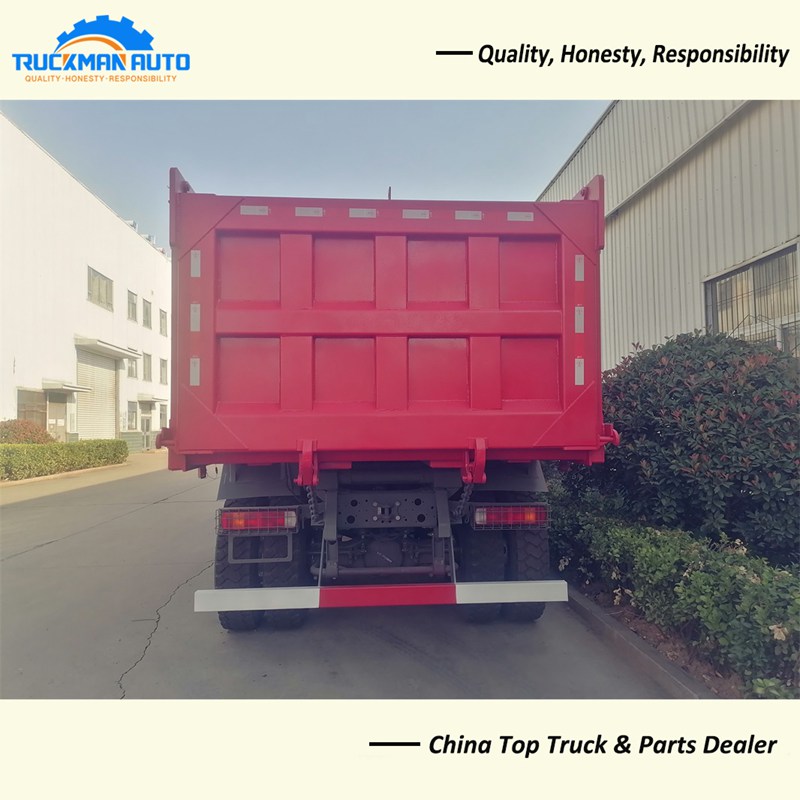

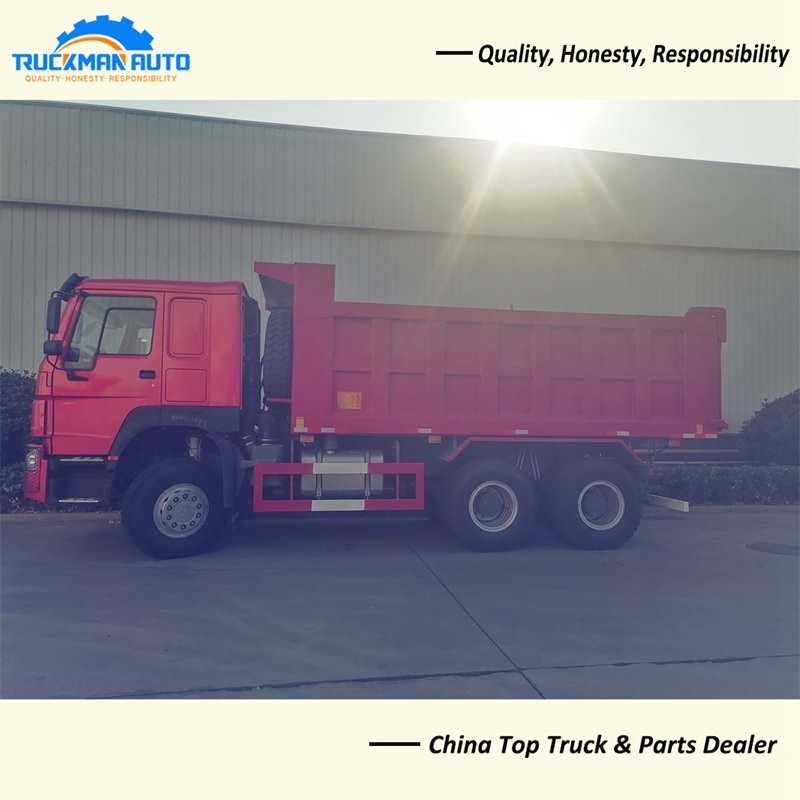

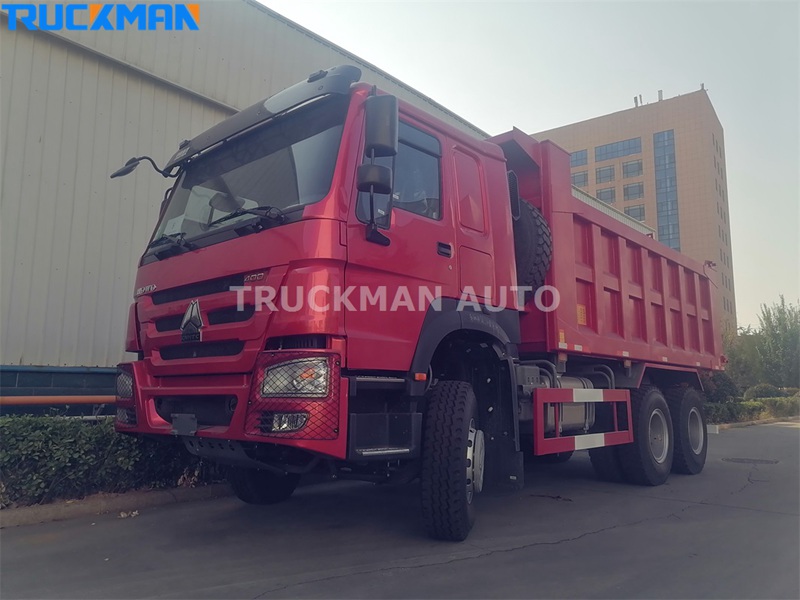

SINO TRUCK 6x4 Rectangular Dump Truck
SINO TRUCK 6X4 Rectangular Dump Truck
Dump trucks are commonly used for transportation special vehicles. This dump truck drive form is 6x4, 2 axles with steel plate suspension. It is also retrofitted with headlight protection. We can customize various colors according to customer's needs.
SINO TRUCK 6X4 Rectangular Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
SINO TRUCK 6X4 Rectangular Dump Truck |
|
Application |
Loding work |
|
Engine |
WP12.400E201, 400HP, EURO II |
|
Cabin |
With one bed, A/C |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
315/80R22.5, 10+1 pcs |
|
Lifting Cylinder |
Mechanical lifting |
|
Fuel Tank |
300L |
|
Color |
Optional |
|
Dimension |
5600x2300x1500mm |
SINO TRUCK 6X4 rectangular dump truck specification only for your reference, we will recommend other model SINOTRUCK tractor basic your request.
SINO TRUCK 6X4 Rectangular Dump Truck Body
Dump trucks come in field, U-shaped and tic-tac-toe body appearances. The field shaped trucks are suitable for hauling cargoes such as sand, gravel and aggregates, while the U-shaped bucket trucks are suitable for hauling viscous cargoes, and there is no residue from unloading as there is no dead space within the cargo.
SINO TRUCK 6X4 Rectangular Dump Truck Lifting Cylinder
The standard lifting cylinder for heavy duty trucks is ANWEEL, we can also choose other brand lifting cylinders according to customer's requirements, such as imported brand HYVA.6x4 dump trucks can choose belly lift and front lift; 8x4 dump trucks must have front lift. Front lift is simpler in structure, easy to maintain and more durable than belly lift.
