North Benz 380HP 10 Wheel Dump Truck
-1. NORTH BENZ Dump Truck Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine: 340HP-380HP, WEICHAI technology
-. T- or F-type, middle or front lifting type
-. Tipper body: square or U-shaped
-. Tipper body: 15 to 20cbm
-. Heavy-duty load capacity: 30 to 40 tons
-. Floor thickness: 4 to 16mm, Side wall thickness: 3 to 14mm for customer's different use
-. Hydraulic system: HY-VA brand or Chinese famous brand
-. Military industry truck chassis, very strong and durable
|
Model |
ND3252B38J |
|
|
Traction type |
LHD/RHD |
|
|
Drive System |
6×4 |
|
|
Cabin |
NG80 flat cabin, air conditioner, one sleeper |
|
|
Engine |
Brand |
WEICHAI |
|
Model |
WP10.380E32 |
|
|
Rated power |
380hp |
|
|
Engine displacement |
9.726 liters |
|
|
Gearbox |
12JS160T |
|
|
Clutch |
430 Diaphragm type |
|
|
Steering |
ZJ120D |
|
|
Axle |
Front |
BEIBEN 7.5T |
|
Rear |
BEIBEN 13T, double reduction axle, ratio:5.921 |
|
|
Maxrunning speed (km/h) |
85 |
|
|
Tire |
12.00R20 |
|
|
Spring |
10/13 |
|
|
Fuel tank |
300L |
|
|
Kerb weight (kg) |
12400 |
|
|
Total mass (kg) |
25000 |
|
|
Wheel base (mm) |
3800+1450 |
|
|
Overhang (mm) (front/rear) |
1410/1870,1410/1687,1410/1630 |
|
|
Track (mm) (front/rear) |
1995/1800 |
|
|
Approach / departure angle(°) |
26/32 |
|
|
Overall Dimensions(L*W*H)(mm) |
8530×2500×3310 |
|
|
Box dimensions |
5600x2300x1500 |
|

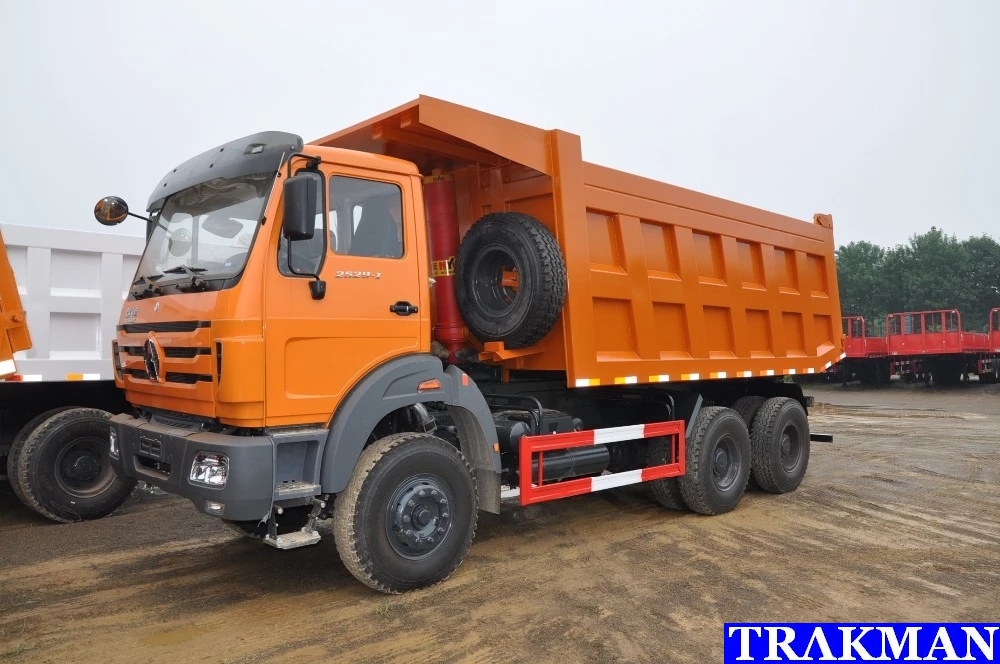

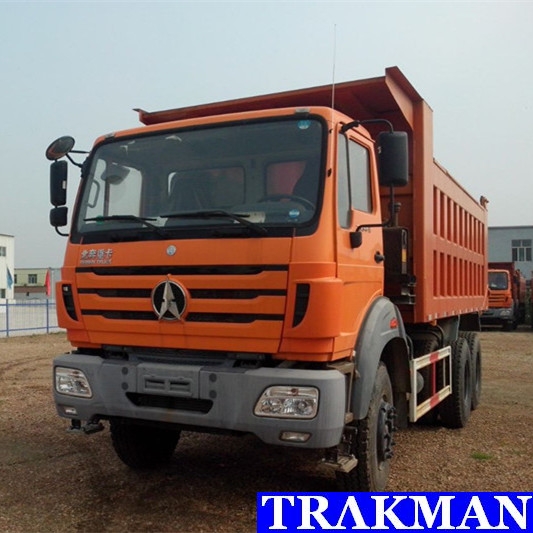

-2. Truck Picture For Reference.

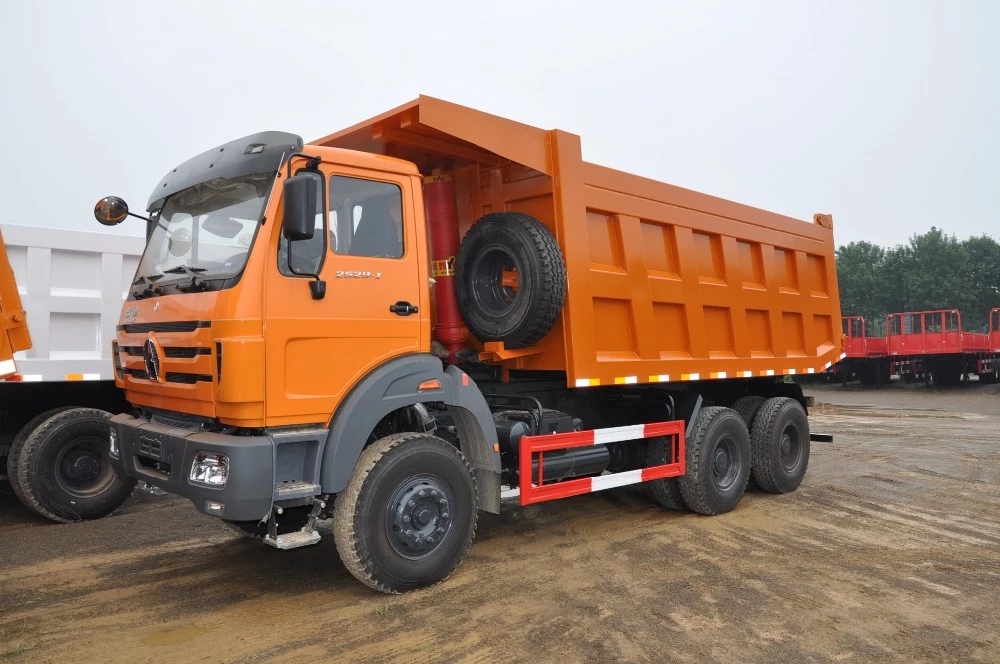

-3. Truck Detail Picture.
-4. Customers Received Truck.
Our customers received trucks last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
