BEIBEN Brand New Truck Head
-1. BEIBEN North Benz Brand Truck Head Main Specification
-. Oil saving, safety, driving comfort, reliability, low application cost
-. Engine: 340HP-380HP, WEICHAI technology
-. Heavy-duty load capacity: 40 to 100 tons
-. FAST brand gear box, easily shift gear
|
Wheel base |
3450+1450 |
||
|
Dimension |
7050×2495×3260mm |
||
|
Curb weight |
8800kg |
||
|
Front overhang/rear overhang |
1410/740mm |
||
|
Approach angle/Departure angle |
26/64 |
||
|
Max Speed |
≥85 |
||
|
Engine |
Model |
WP10.340E32,water-cooled,four strokes,6 cylinders straight in line,turbocharged, |
|
|
Fuel type |
Diesel |
||
|
Emission |
EUROIII |
||
|
Rated Power / rotating |
250Kw/2200rpm (340HP) |
||
|
Displacement(ml) |
9726 |
||
|
Fuel tanker capacity (L) |
400L |
||
|
Clutch |
Model |
#430, Single dry frictional disc,Hydraulic boosting |
|
|
Gearbox |
Model |
12JS160T |
|
|
Brake system |
Service brake |
Brake gap can be adjusted automatically, double circulation air brake system |
|
|
Assistant brake |
Engine exhaust brake |
||
|
Park brake |
Potential springs pressing on middle and rear wheels |
||
|
Steering system |
Model |
TAS85 |
|
|
Front axle |
7.5 tons no-driving steering axle |
||
|
Rear axle |
13 tons double reduction driving axle, speed ratio5.263 |
||
|
Tire |
12.00R20 radial tire |
||
|
Cabin |
NG80B Long cab with one sleeper Interior trimming: Integral interior trimming, Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted. With inner A/C. |
||
|
Fifth wheel |
#50 single direction (JOST) |
||

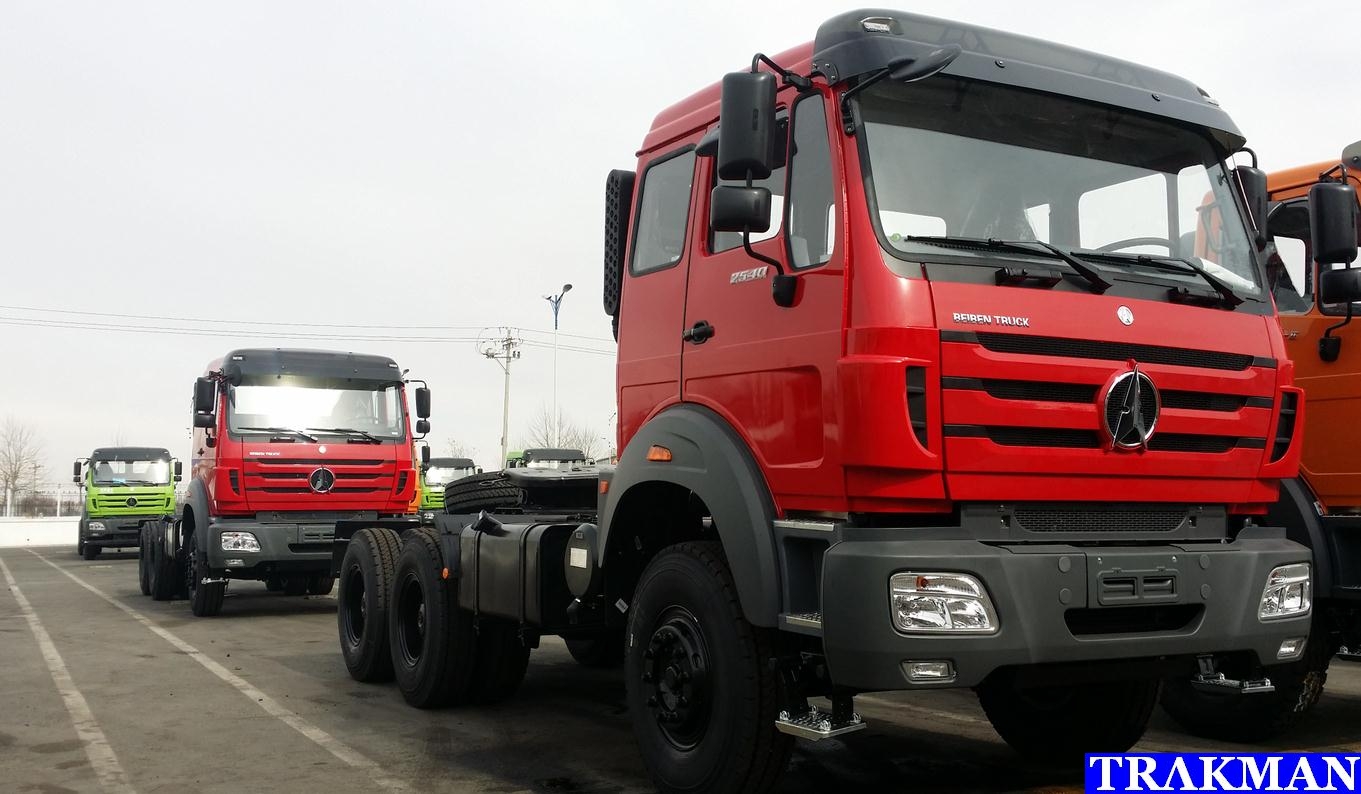

-2. Truck Picture For Reference.

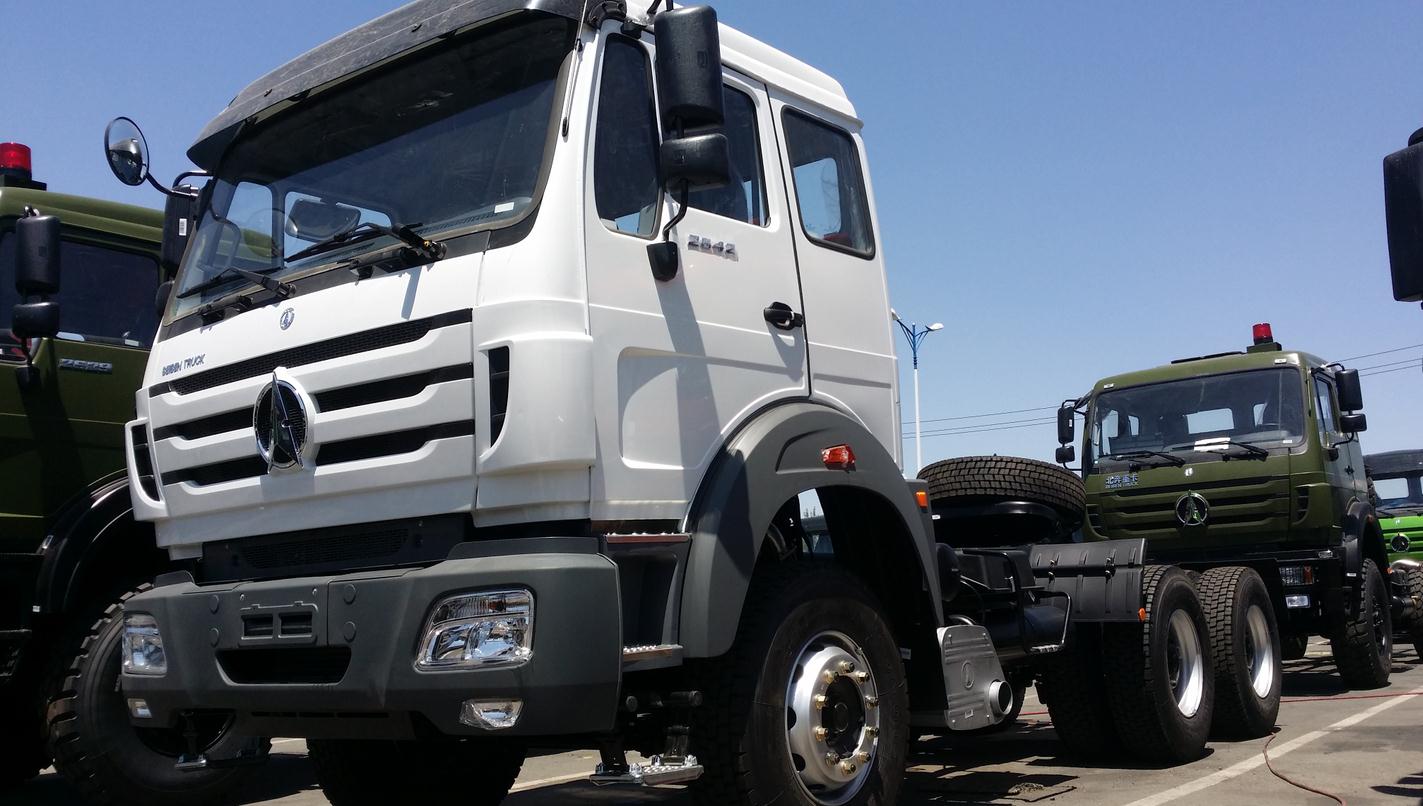

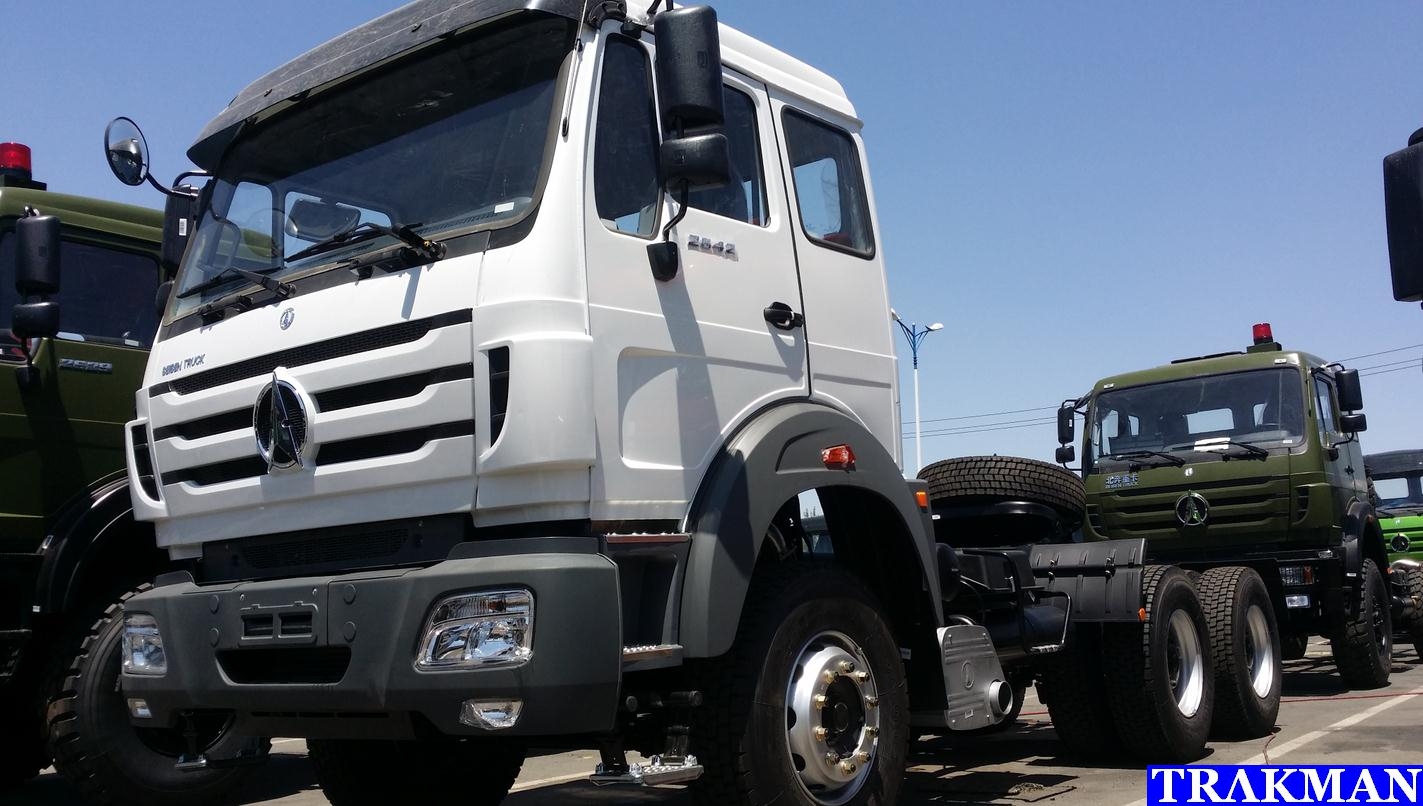

-3. Truck Detail Picture.
-4. After Sales Service.
Now Our company built one big spare parts warehouse for our customer's trucks, all parts could arrange DHL or TNT as soon. In addition, we also could arrange the engineer for the maintenance.
