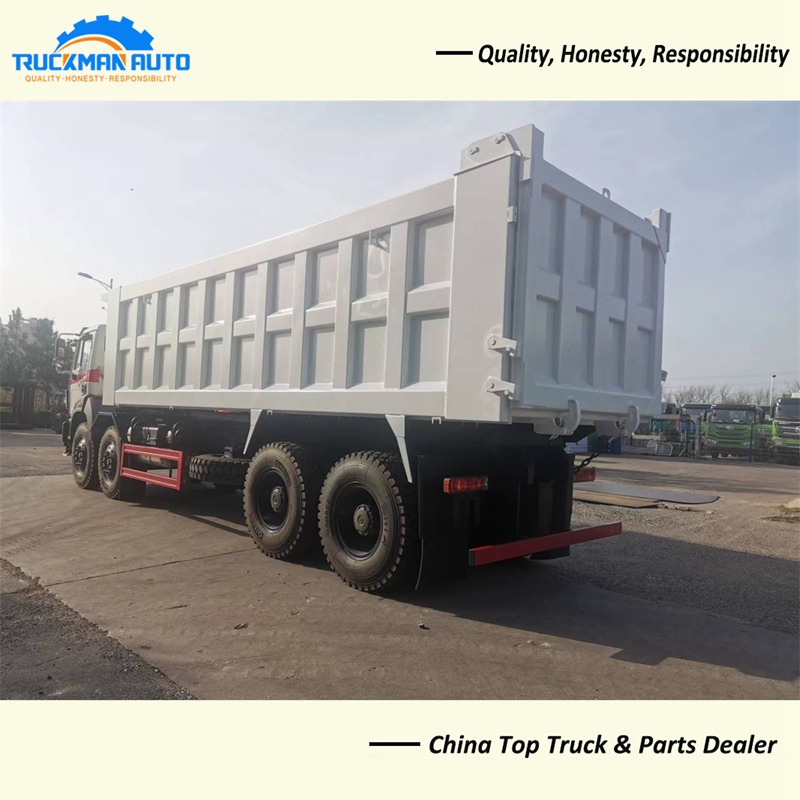

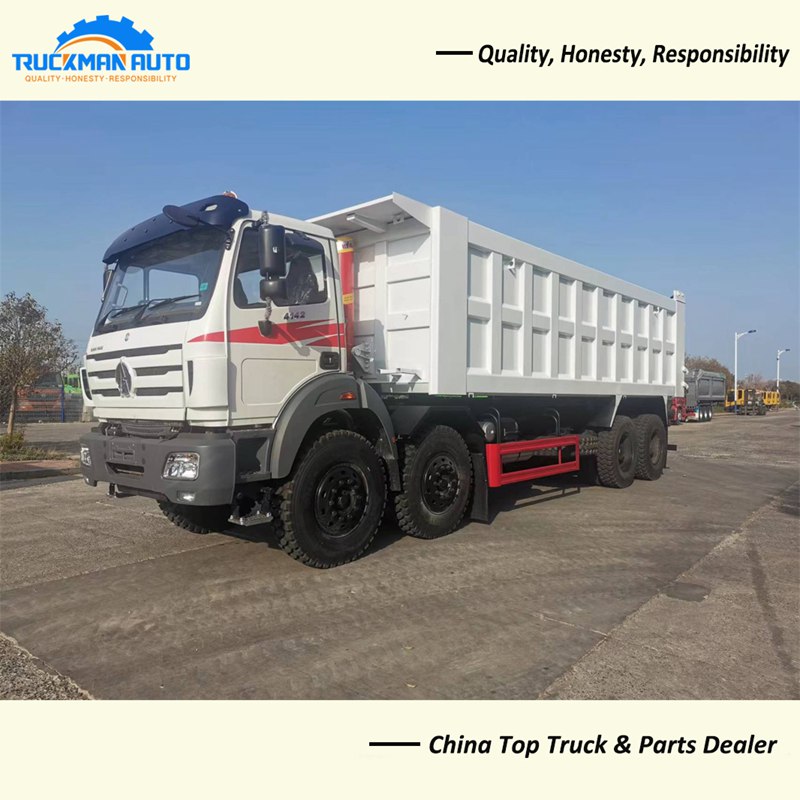

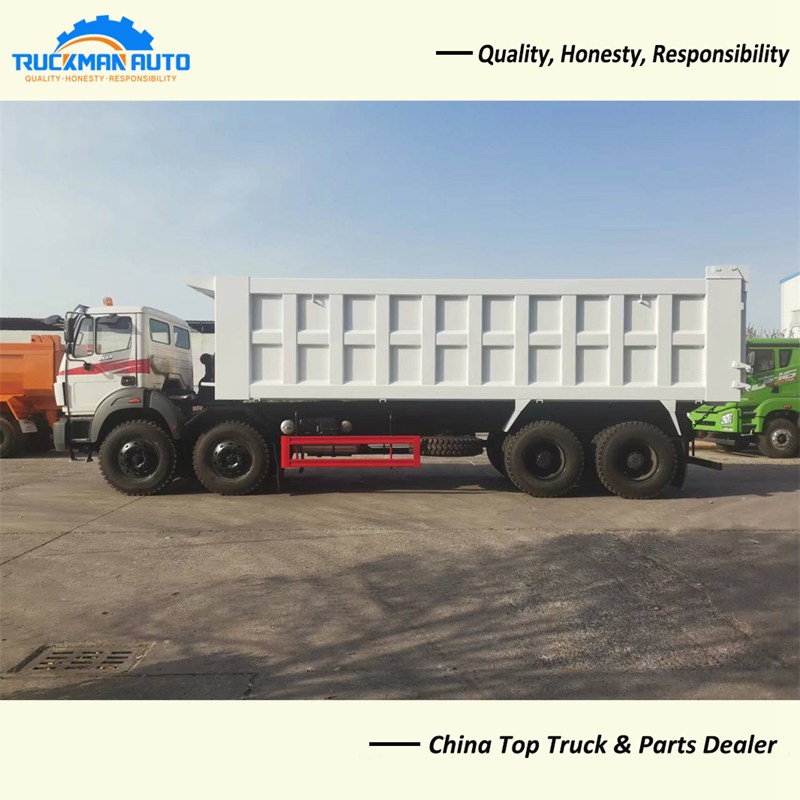

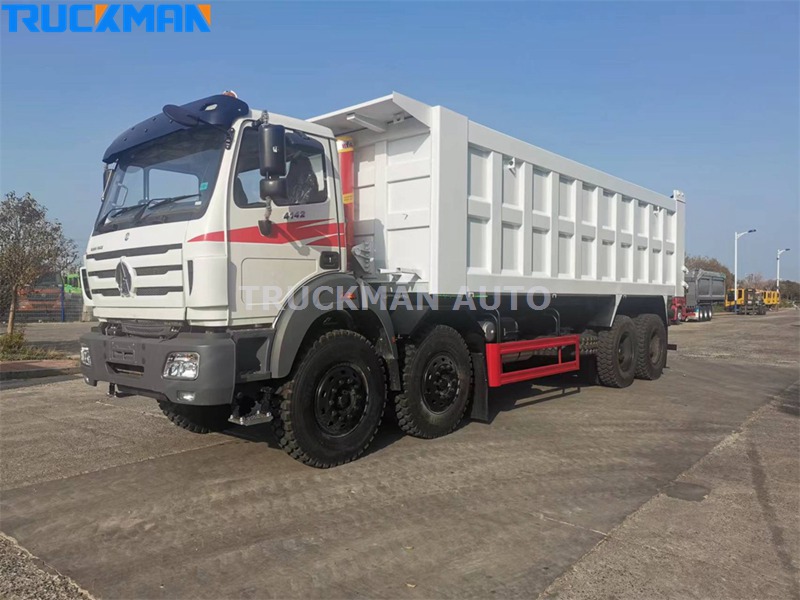

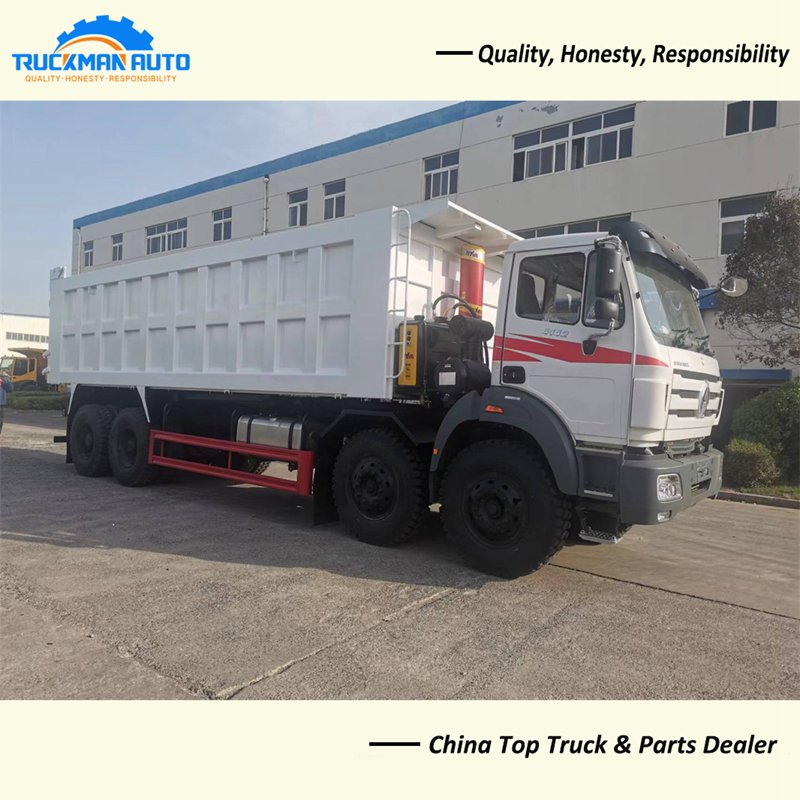

BEIBEN 8x4 3138 Dump Truck For Kenya
BEIBEN 8x4 3138 Dump Truck Features
BEIBEN 8x4 dump truck can transport more cargoes, the chassis weight reach to 15000kg. And adopt the 380HP engine, strong power. Displacement at 9.726L, 1500Nm maximum torque.
-. #430, dingle dry frictional disc, hydraulic boosting.
-. ZF brand steering wheel, whole circulation in ball type, hydraulic boosting.
BEIBEN 8x4 3138 Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
BEIBEN 8x4 3138 Dump Truck |
|
Application |
Transport mining material etc |
|
Loading Capacity |
40,000kg |
|
Engine |
WP10.380E32, 380HP, EURO III |
|
Cabin |
NG80B, with one bed, A/C, rightt hand drive |
|
Gearbox |
12JS160T, 12 forward and 2 reverse gear |
|
Tire |
12.00R20, 12+1 pcs, radial model |
|
Steering |
ZF8098, hydraulic boosting |
|
Front Axle |
7.5 ton, 2x7500kg |
|
Driving Axle |
13 ton, 2x13000kg |
|
Fuel Tank |
400L |
|
Dimension |
10200x2560x3450mm |
The BEIBEN 8x4 3138 dump truck specification only for your reference, we will recommend other model BEIBEN dump truck basic your request.

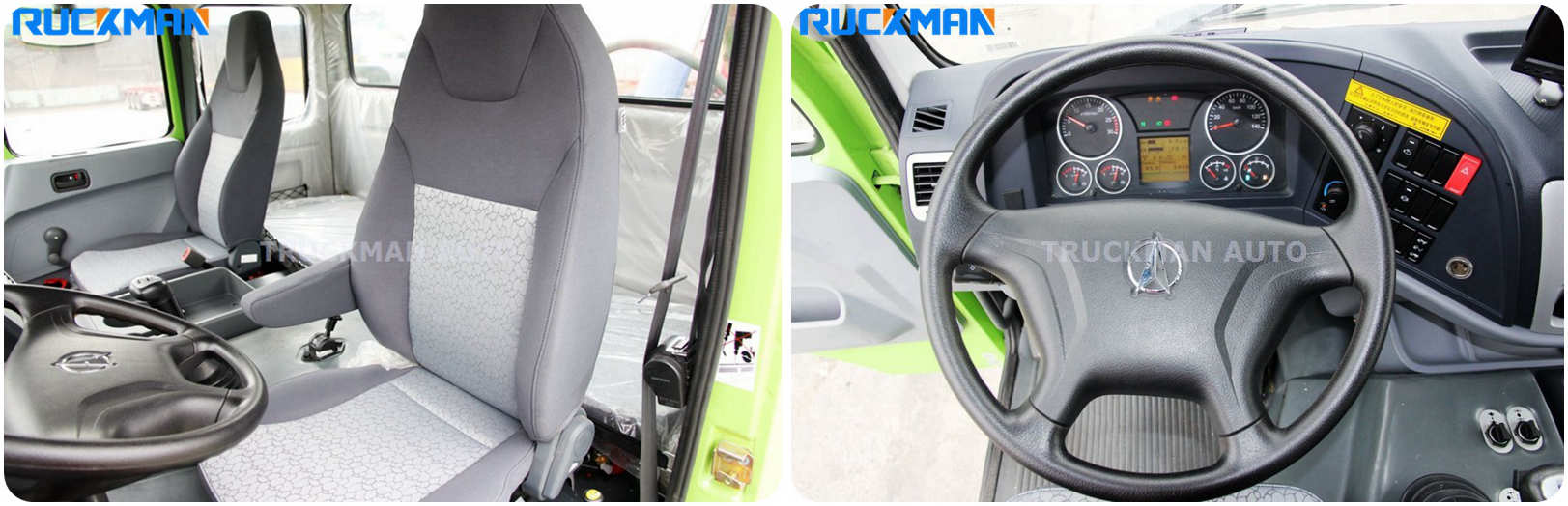

BEIBEN 8x4 3138 Dump Truck Cabin
BEIBEN dump truck cabin model is NG80B, without sleeper or 1 sleeper (according to customer request), A/C. Interior trimming as follow: Integral instrument, digital instrument, radio (with USB interface+MP3), high back/shock absorption seat for driver, high back seat for co-driver. Steering wheel can be adjusted, with inner A/C.
