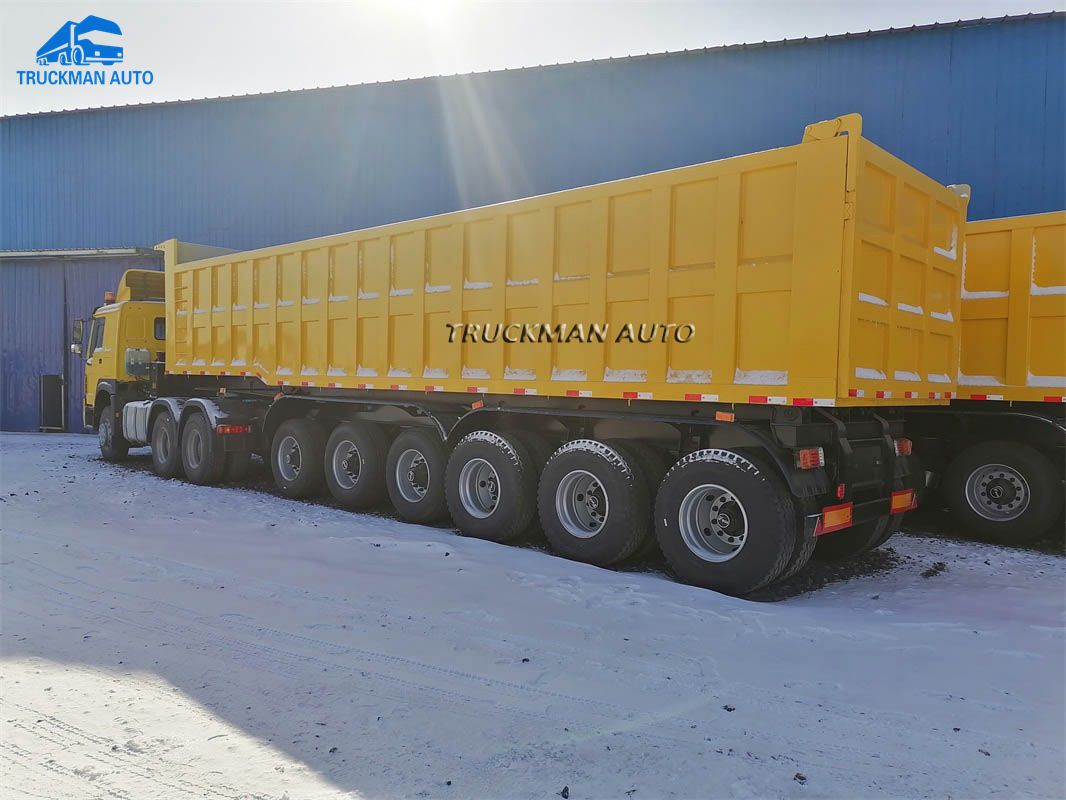

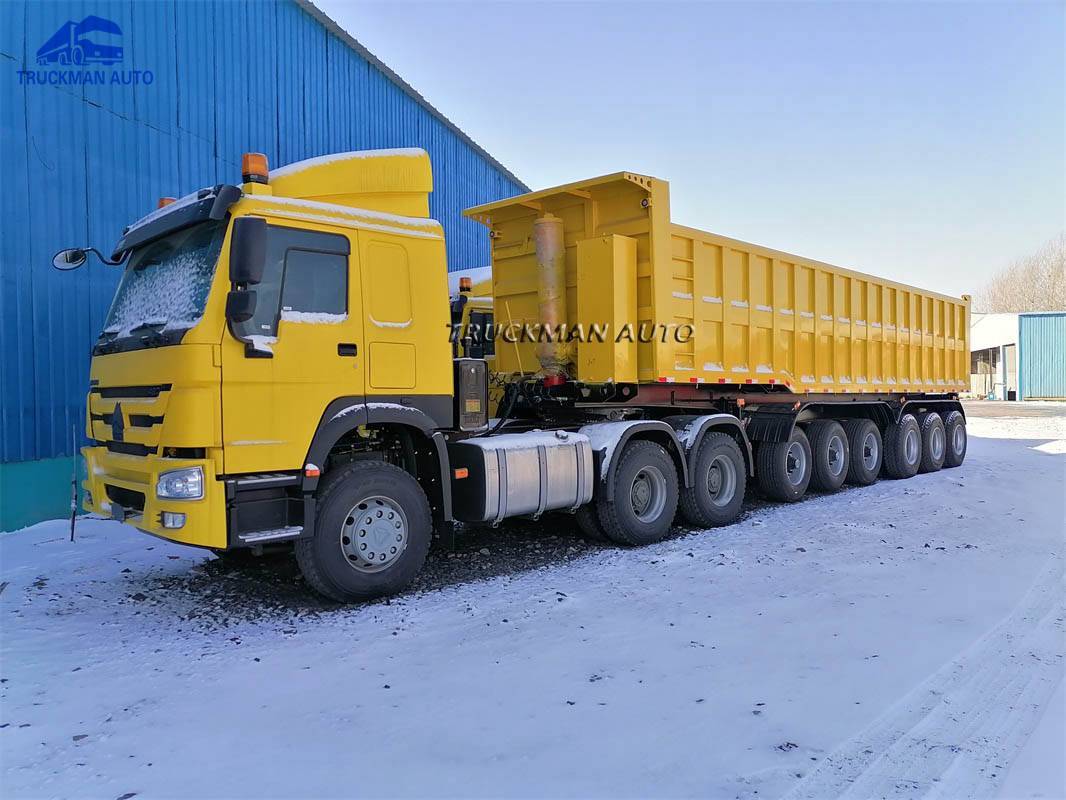

9 Axles SINOTRUCK 45 Cubic Meters Dump Trailer For Ghana
-1. SINOTRUCK 45 Cubic Meters Dump Trailer For Ghana.
SINOTRUCK 45 cubic meter dump trailer is main design for Ghana market, with front 3 axle adopt the air lifting suspension, the rear 3 axle mechanical suspension. 45 cubic meter dump trailer (45m3 truck) could used for the bauxite, manganese ore, stone, coal, sand etc transport. The lifting system adopt the famous brand, cylinder diameter could reach to 240mm.
|
Description |
Item |
|
Production Name |
45 cubic meter dump trailer |
|
Loading Tons |
60-80 Tons |
|
Machine weight |
17200kg |
|
Axle |

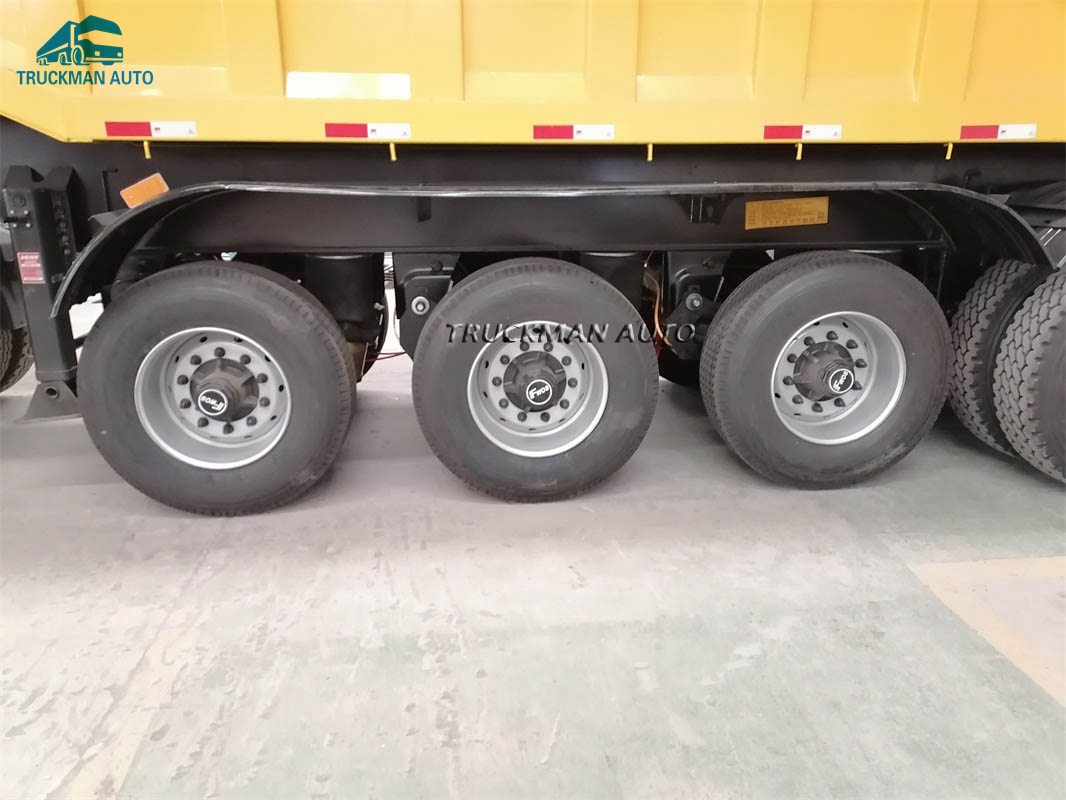

6 axles, 6x16 tons, with front 3 axle could lifting, rear axle is mechanical suspension |
|
Tire |
385/60R22.5+13R22.5 tubeless model tire |
|
Support Leg |
JOST brand, 30 tons support |
|
Brake System |
WABCO brand, 6 pcs small and 6 pcs big brake chamber |
|
Thickness Of Frame |
18mm for up plate, 8+8mm for middle plate, 20mm for low plate |
|
Welding |
Adopt the automatic welding, full welding |
|
Cargo Box |
11000x2400x1700mm, 45m3 |
|
Overall machine dimension |
11500x2500x3950mm |
-2. SINOTRUCK 45 Cubic Meters Dump Trailer Video For Review.

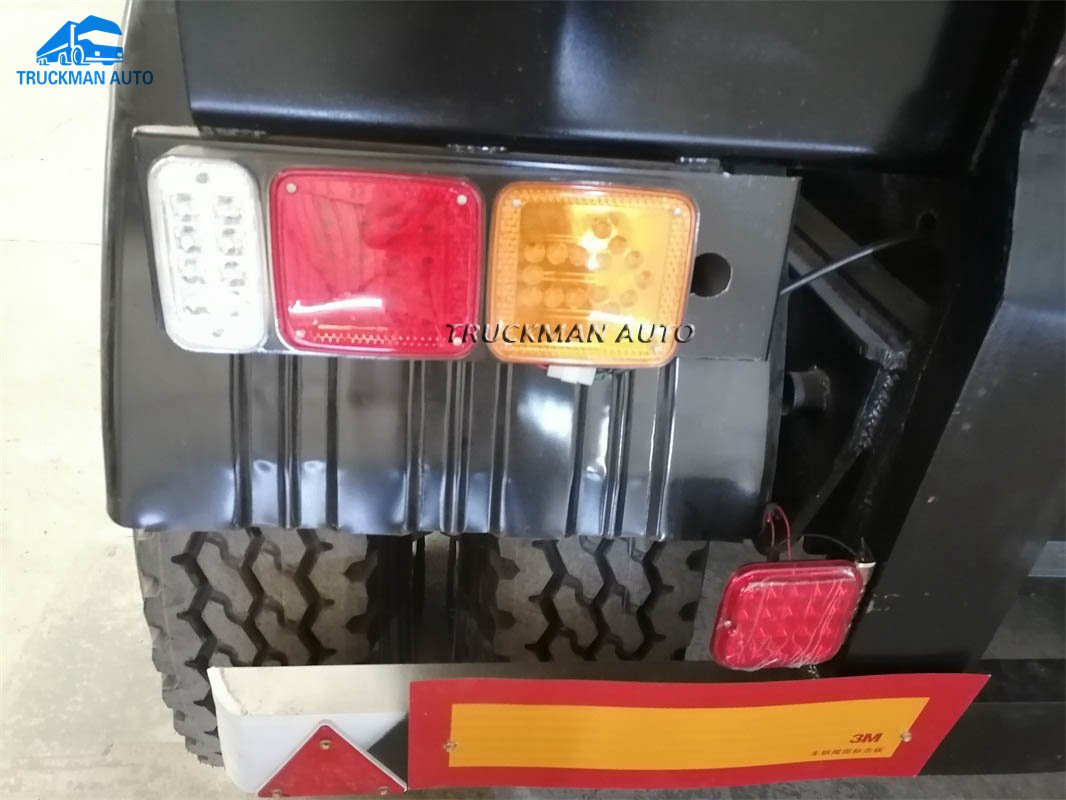

The SINOTRUCK 45 cubic meters dump trailer total 6 axles, meet the Ghana road loading limit request. The whole dump trailer adopt the high strength material, with 5 pcs push rod in the cargo box. As usual we add the mark lamp, buffer lock, complete mudguard for the 45 cubic meters dump trailers. Main parts work with famous brand factory directly, such as LINGLONG brand tire, WABCO brake system, BPW brand axle etc. And with warranty.
