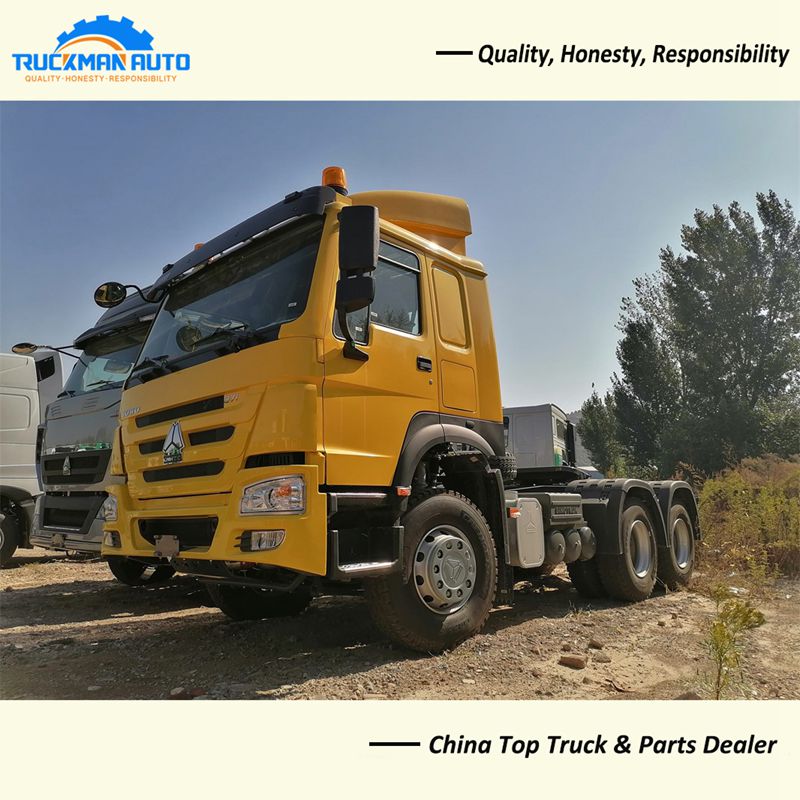

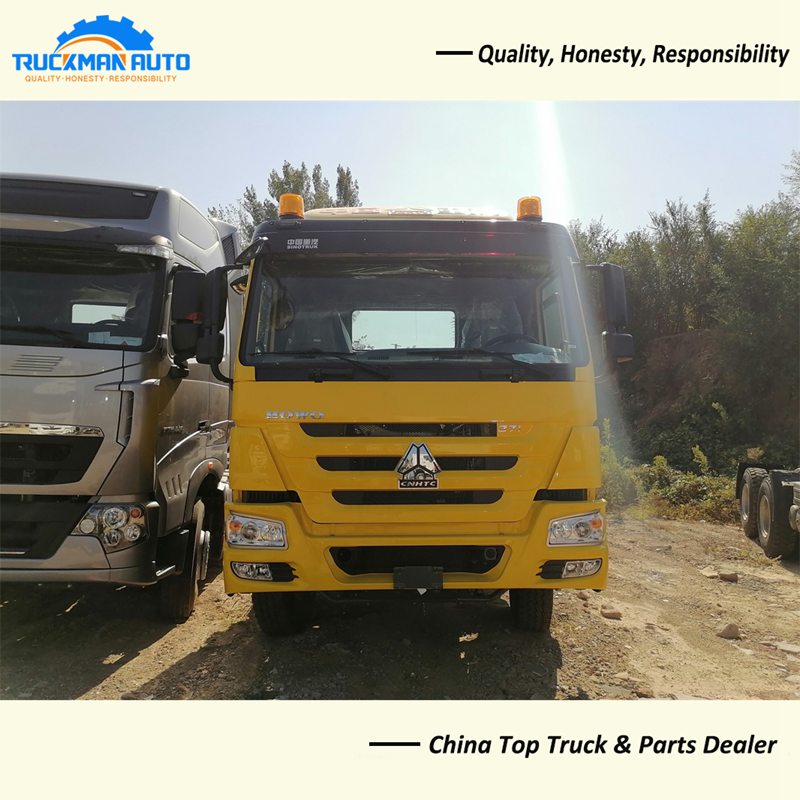

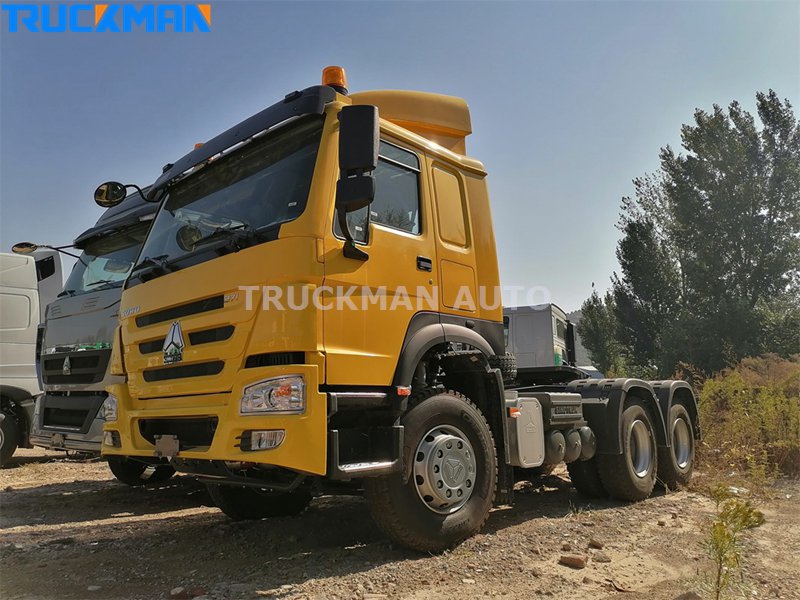

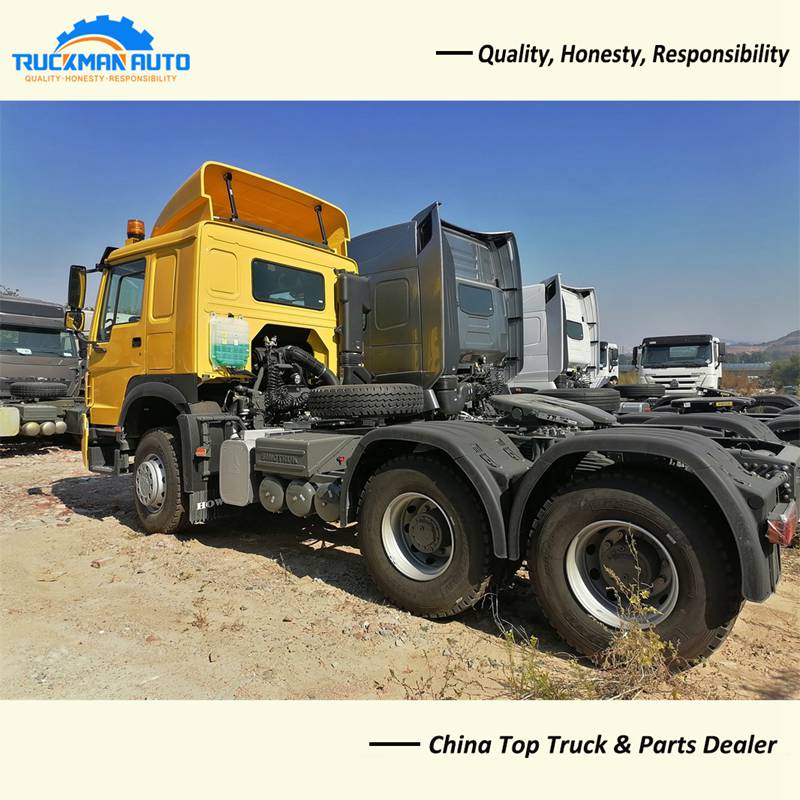

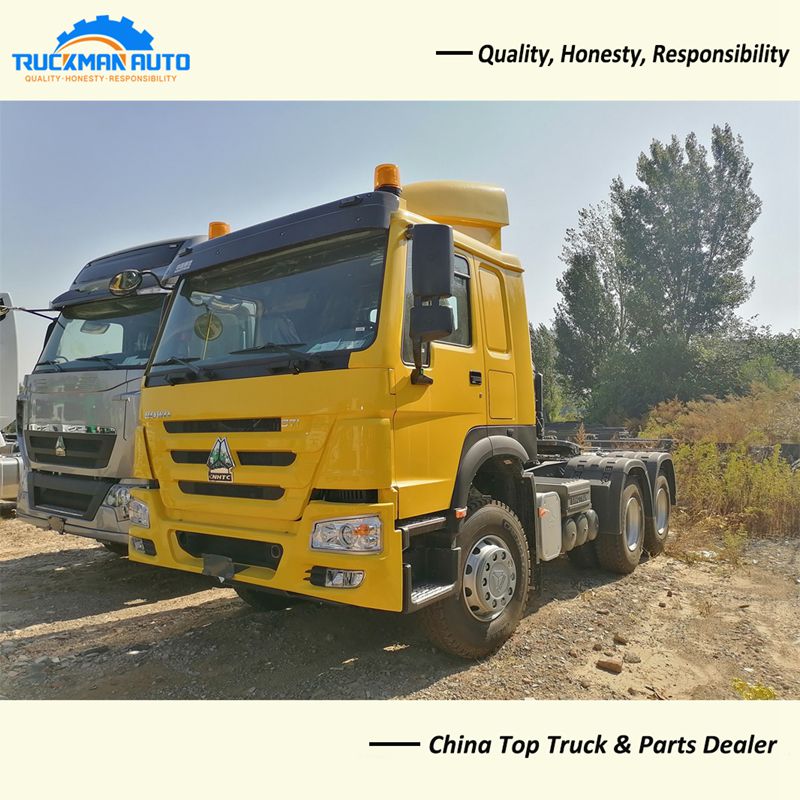

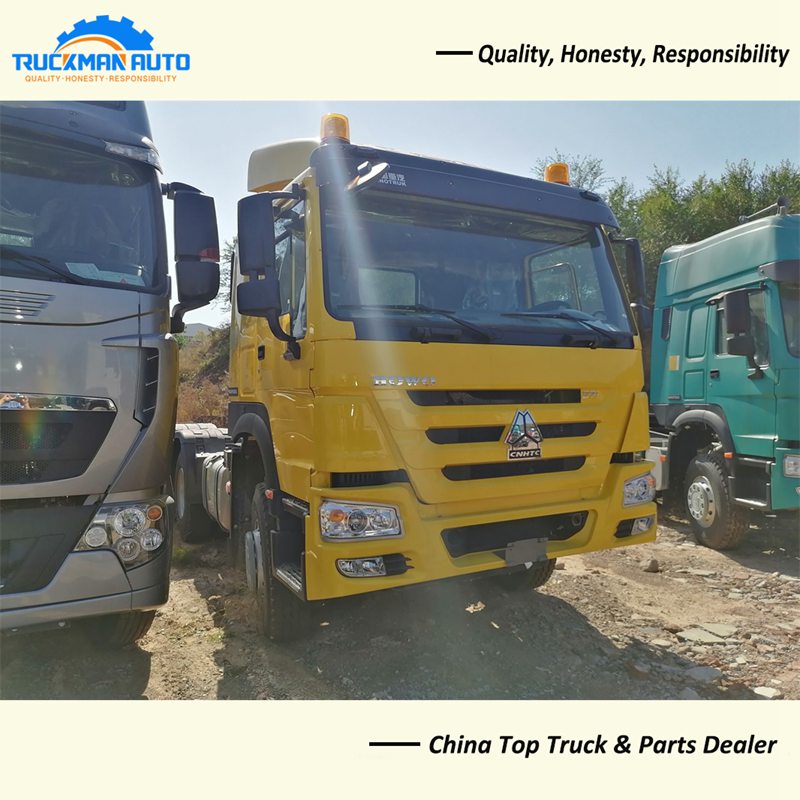

371HP SINOTRUCK HOWO Trailer Head For Liberia
371HP SINOTRUCK HOWO Trailer Head Features
The 371HP trailer head is SINOTRUCK HOWO brand, with a wide field of view, high horsepower, large load capacity, low procurement and maintenance costs, etc.
-. The cabin is HW76 model, with one bed. A/C, right hand and left hand driving.
-. Adopt the tubeless model tire for long distance transport request.
371HP SINOTRUCK HOWO Trailer Head Specification
|
Description |
Parameter Value |
|
Product Name |
10 wheel SINOTRUCK truck head |
|
Application |
Transport bulk cargoes |
|
Loading Capacity |
70,000kg |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
13R22.5, 10+1 pcs, tubeless model |
|
Tractor Pin |
3.5 inch, JOST brand |
|
Front Axle |
VGD95, 1x9500kg |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
400L |
|
Dimension |
6800x2560x3100mm |
The 371HP SINOTRUCK HOWO trailer head specification only for your reference, we will recommend other model SINOTRUCK HOWO trailer head basic your request.

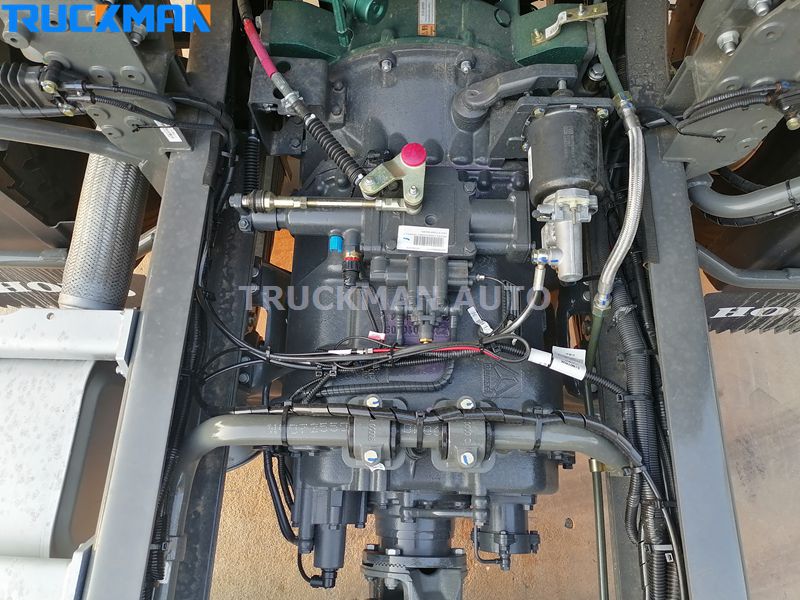

371HP SINOTRUCK HOWO Trailer Head Gearbox Feature
HW19710 model gearbox has 10 forward and 2 reverse gear. The rated input torque can reach 1900N.M. The main box adopts double intermediate shaft structure, and the sub box adopts planetary transmission mechanism, which greatly improves the reliability of the assembly, the mechanism has the characteristics of compact structure, light weight, large transmission ratio and high efficiency.
