37 Tons Self Unloading Container Trailer With Side Lifter Crane
-1. Side Lifter Crane Main Specification
-. Power Take Off or Diesel APU.
-. Wireless remote control/Manual operating.
-. Engine throttle size and engine speed can be control, improving working efficiency
-. The front and rear crane can work together and separate, adjusting container conveninetly.
-. Safety control with stop button.
|
Overall(L*W*H) |
14100*2500*4100mm |
|
The distance between trailer and container |
Optimum distance:400mm |
|
The largest distance :1500mm |
|
|
Side Lifter Specification |
Design criteria: GB/T 3811-2008 |
|
Side Lifter Crane |
Quality Side Crane |
|
Max. lifting capacity |
40000kg |
|
Max.stabiliser outreach |
3200mm |
|
Max. working range |
4000mm |
|
Max. pressure of hydraulic |
28MPa |
|
Hydraulic system |
Hydraulic pump: Italian CASAPPA |
|
Electric control system |
Hydraulic control valve: Netherlandish AMCA |
|
Telecontroller: German NBB |
|
|
Voltage: 12V |
|
|
Two chain |
Two chain: lgus (imported) |
|
Diesel engine |
Japanese Kubota diesel engine |

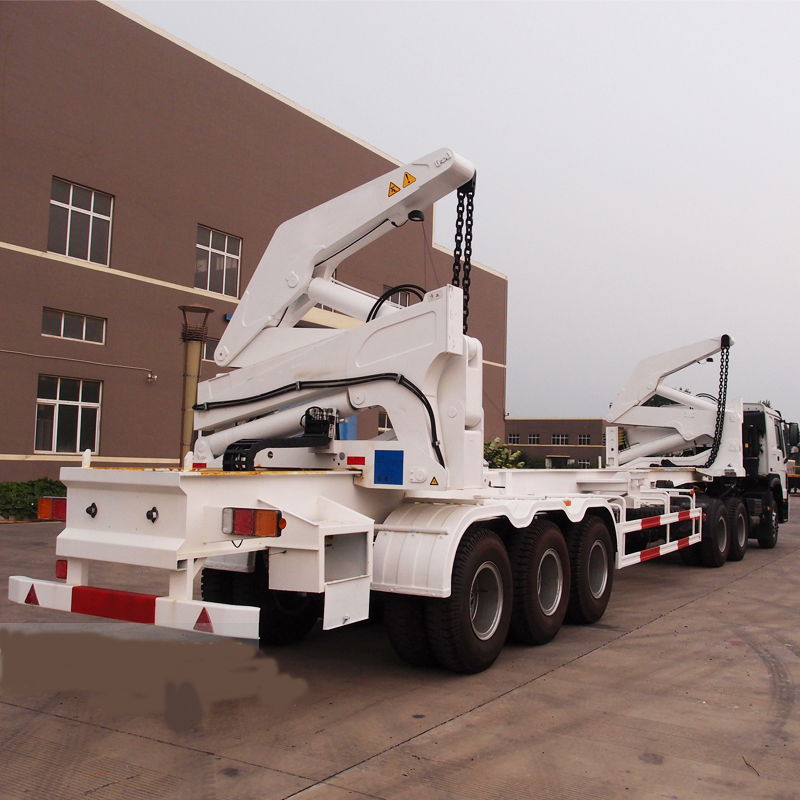

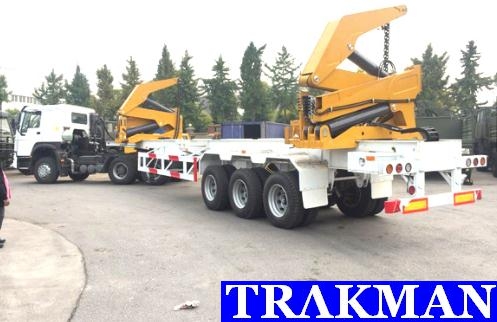

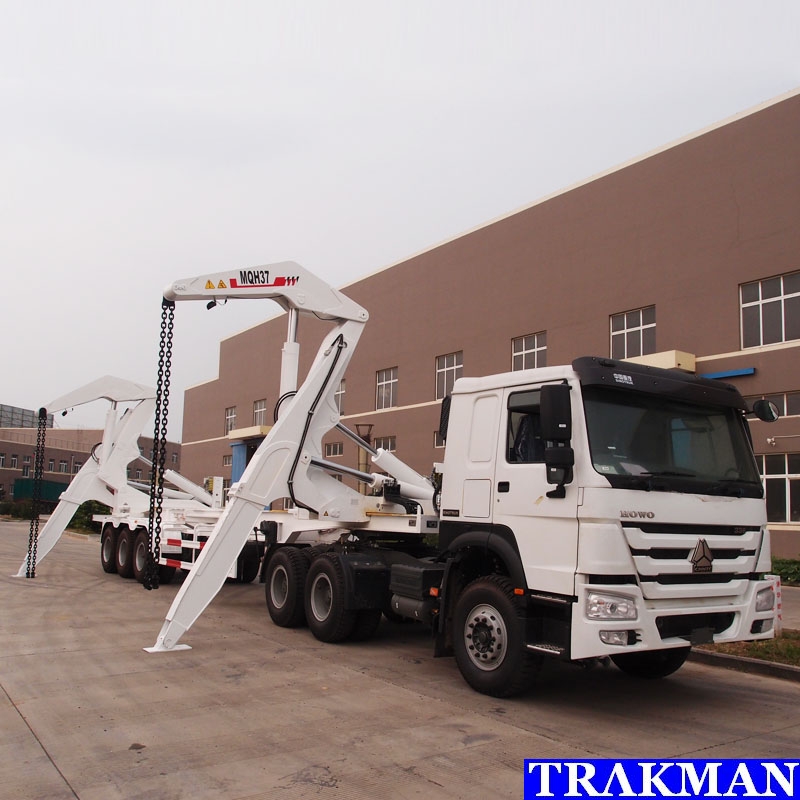

-2. Side Lifter Crane Picture For Reference.

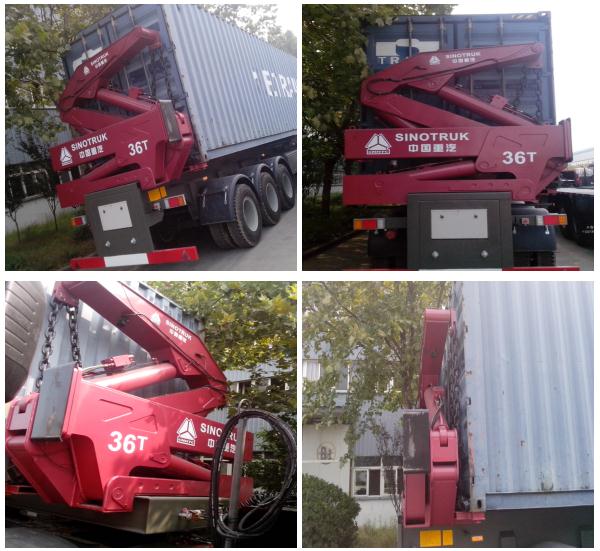

-3. Side Lifter Crane Detail Picture.

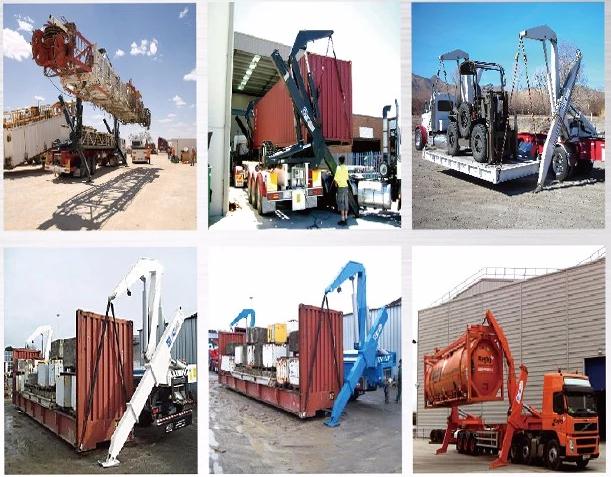

-4. The Side Lifter Crane Working Picture.
All picture is our customers send us, different country, different customer, different work condition, but our Side Lifter Crane can suitable for our customers all request.
