3 Axle Side Wall Trailer With 50 Tons Loading Capacity
-1. 3 Axle Side Wall Trailer Main Detail.
-. The side wall height could design according to your request.
-. 3x13000kg, 3 axle. Brand is FUWA or BPW.
-. Tire model is 12.00R20 radial tire and 315/80R22.5 tubeless tire.
-. Leaf spring, rim, suspension thickness increased.
-2. 3 Axle Side Wall Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 Axle Side Wall Trailer |
|
Loading Weight |
50,000kg |
|
Tare Weight |
9,000kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 6 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8mm lower plate 18mm, “I” type main beam |
|
Material |
Q345, high strength steel |
|
Cargo Box Size |
12300x2300x600, thickness of side wall 1.5mm, bottom 3mm |
|
Dimension |
12500x2500x2400mm |
The specification is only for reference, we could design the 3 axle side wall Trailer according to your request.

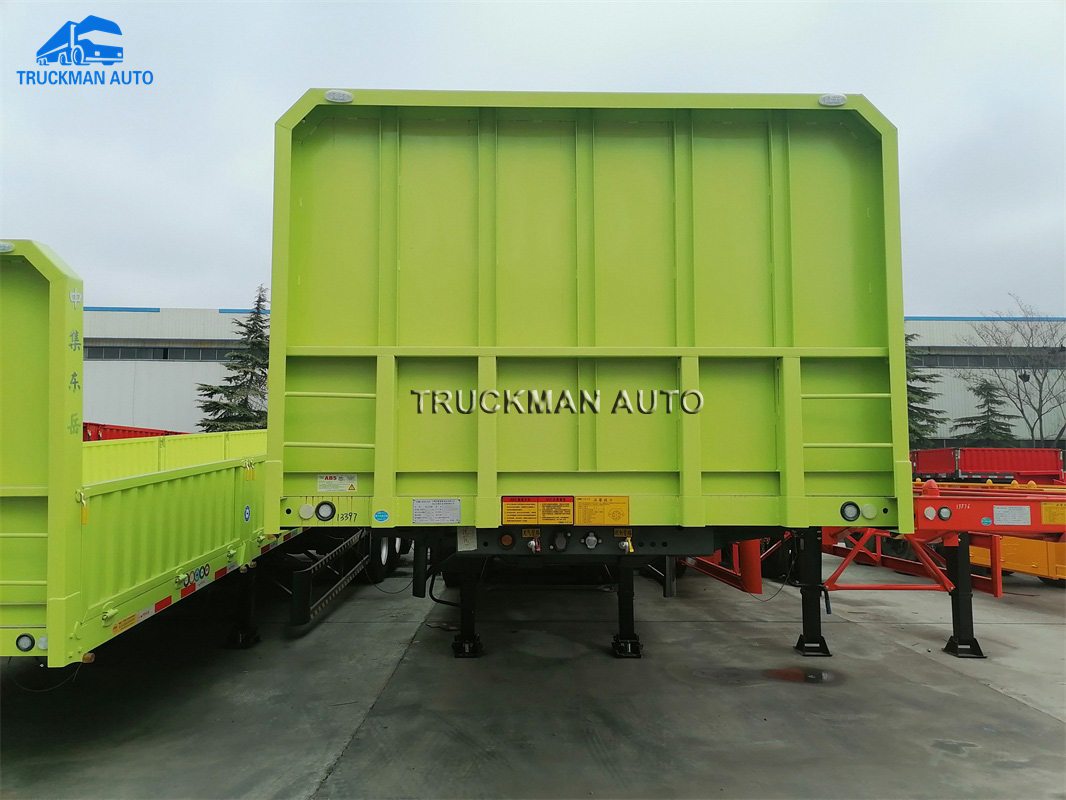

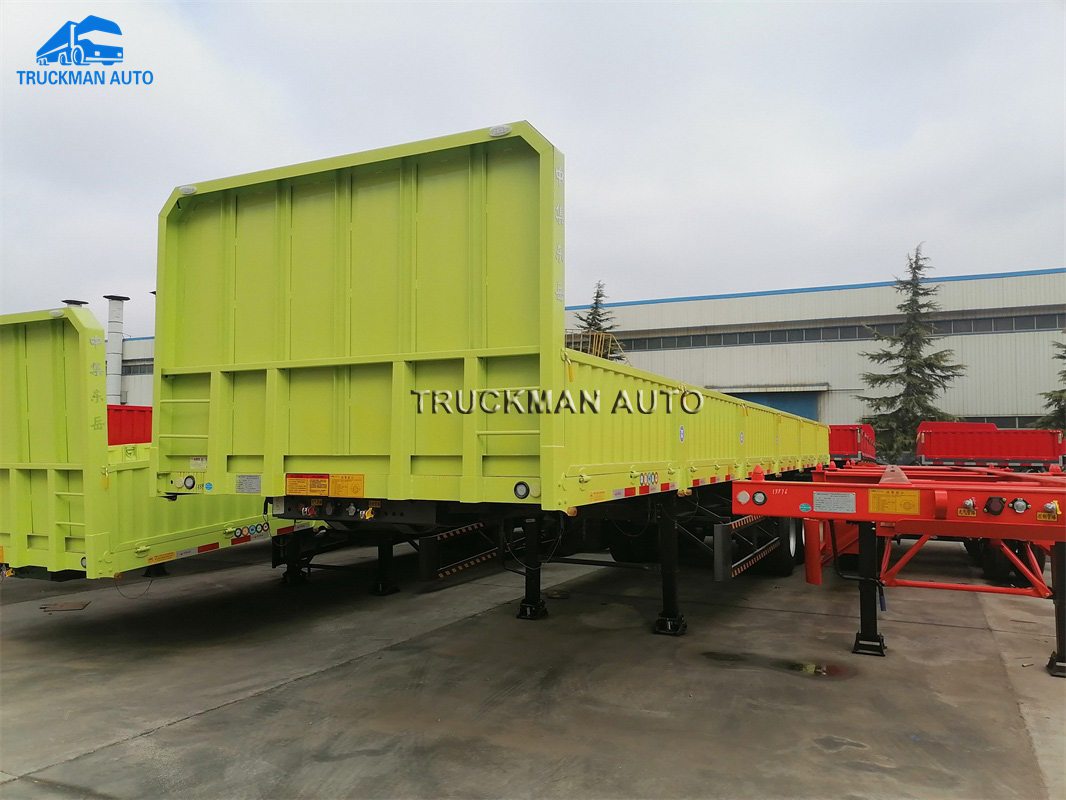

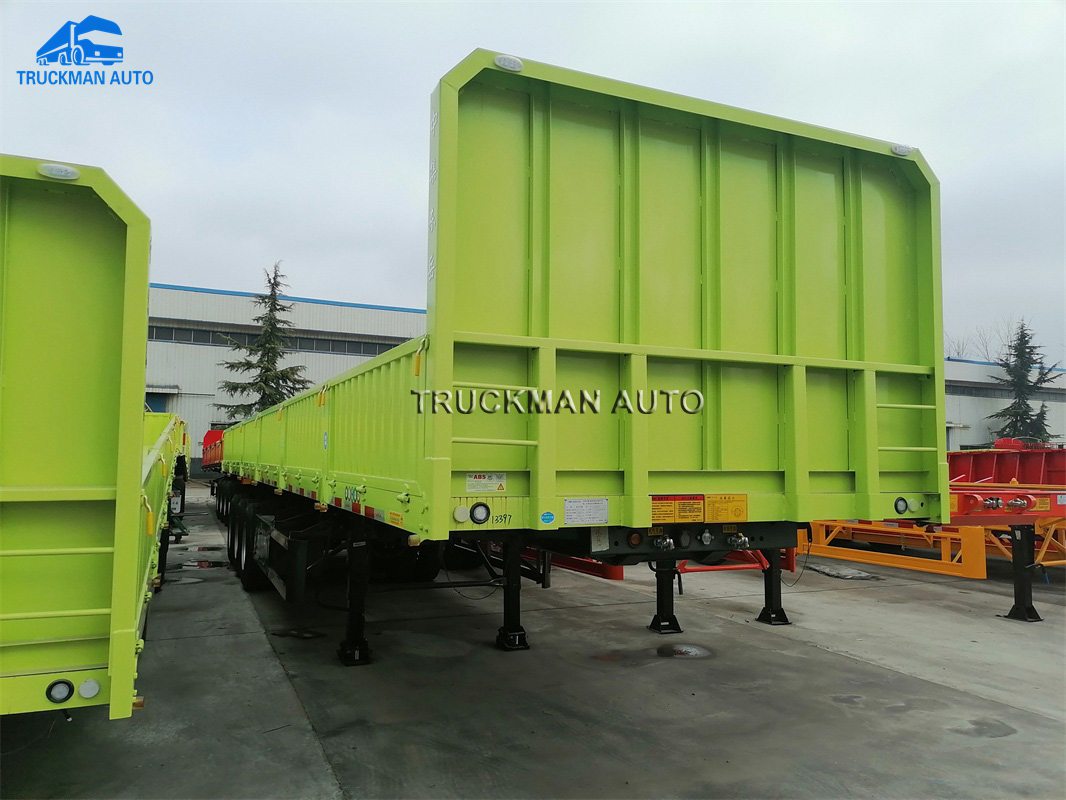

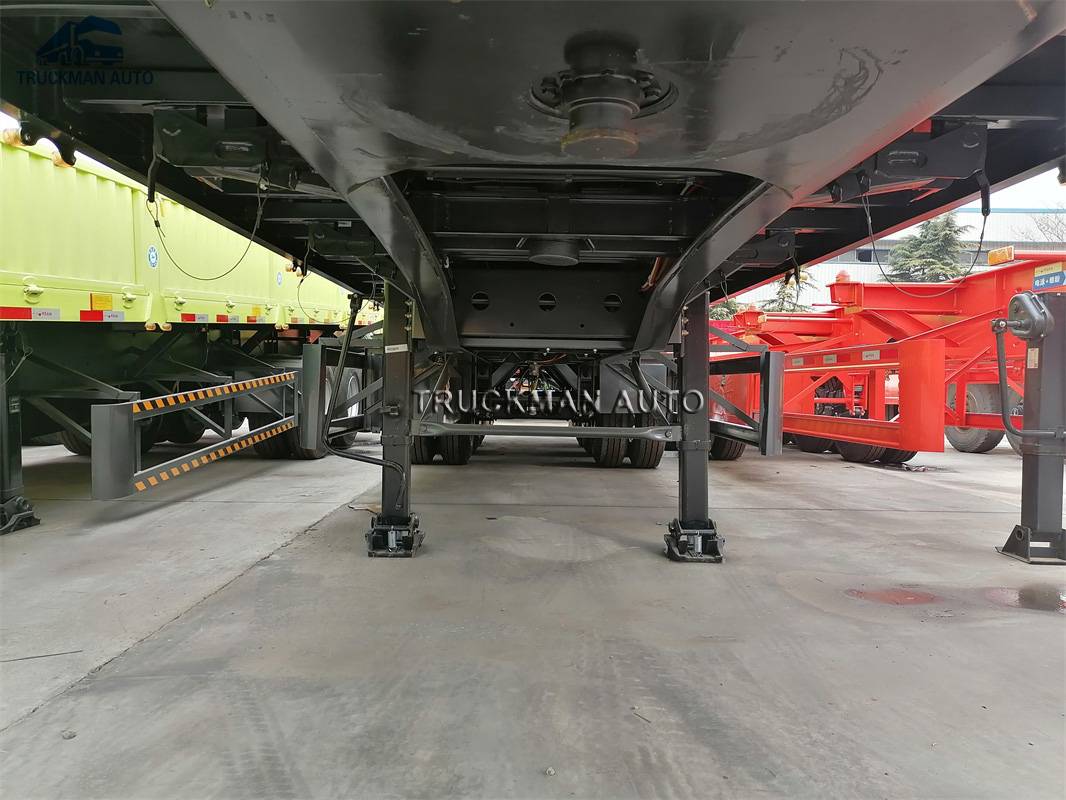

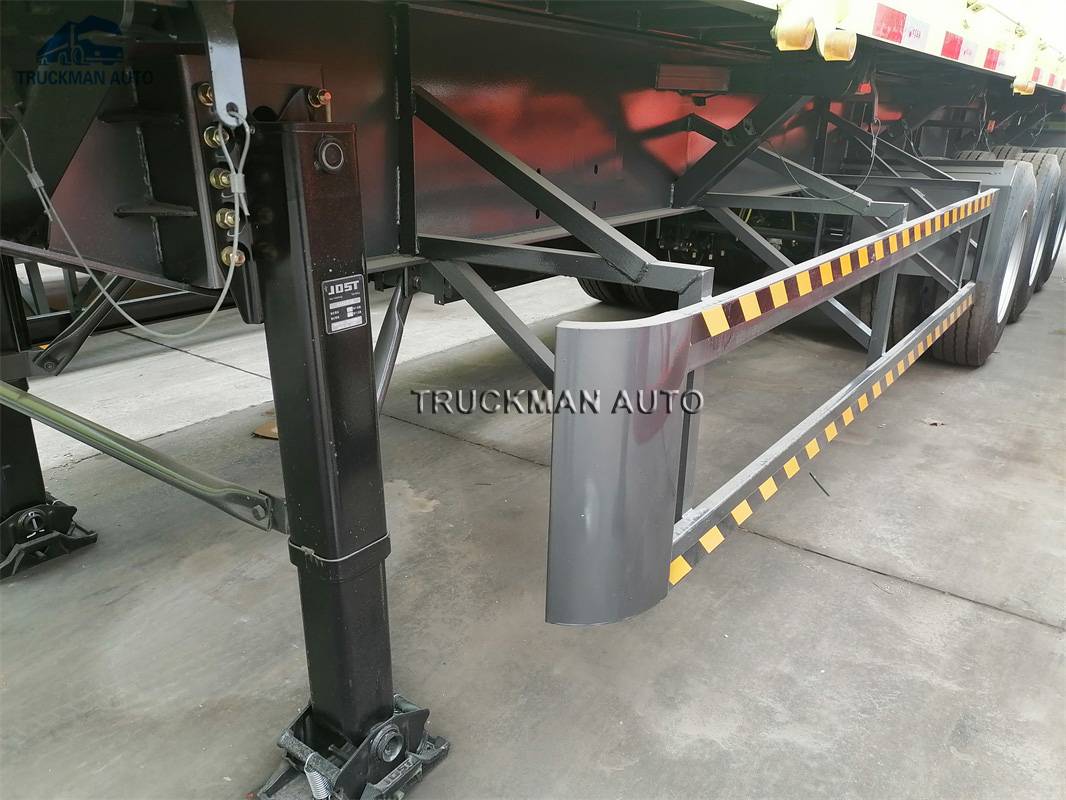

-3. Other Model 3 Axle Side Wall Trailer Picture.

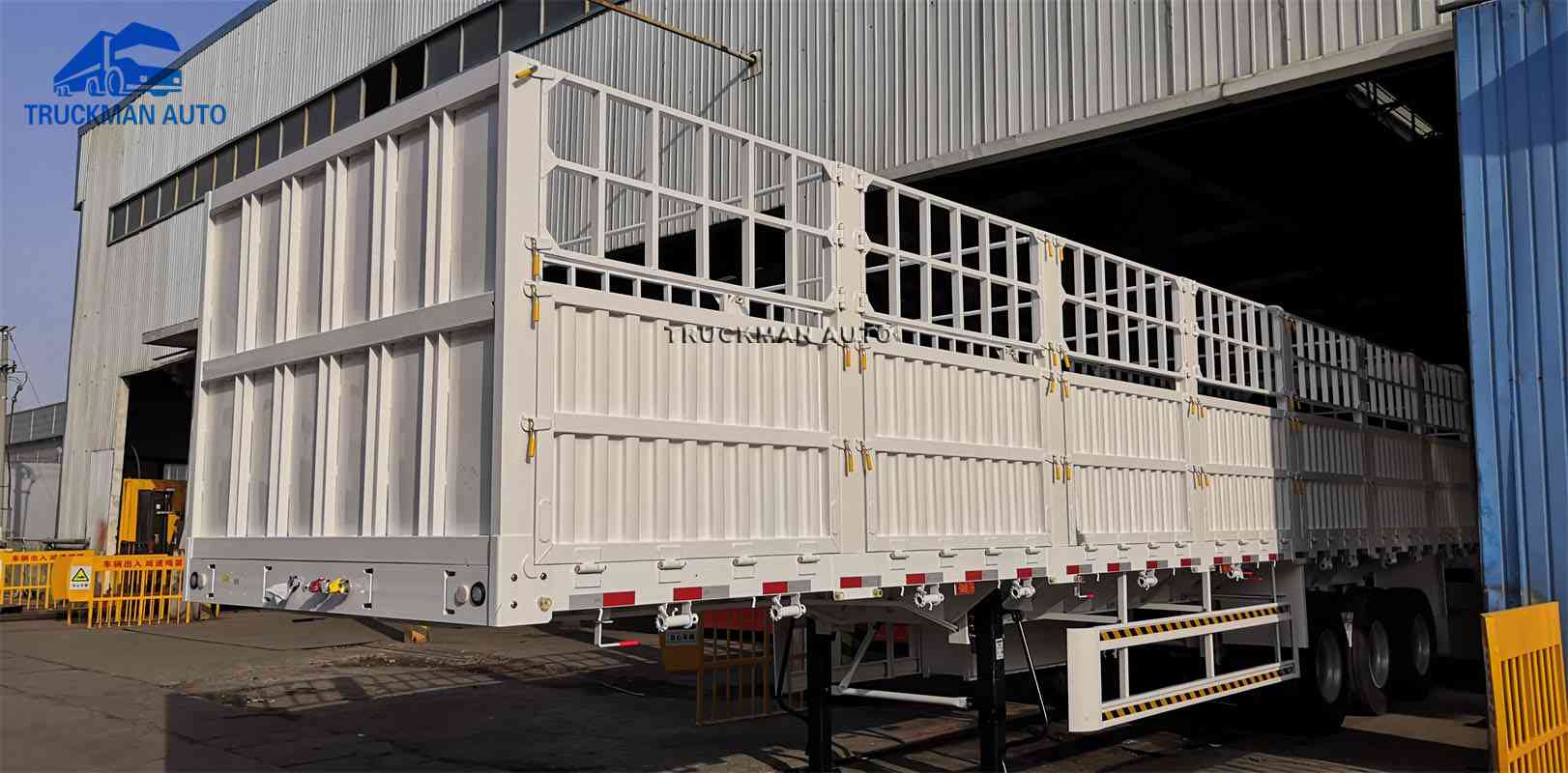

600mm+1800mm height side wall trailer. This type side wall trailer could transport many cargoes compare with 600mm side wall trailer, and side wall thickness could reach to 3mm.
