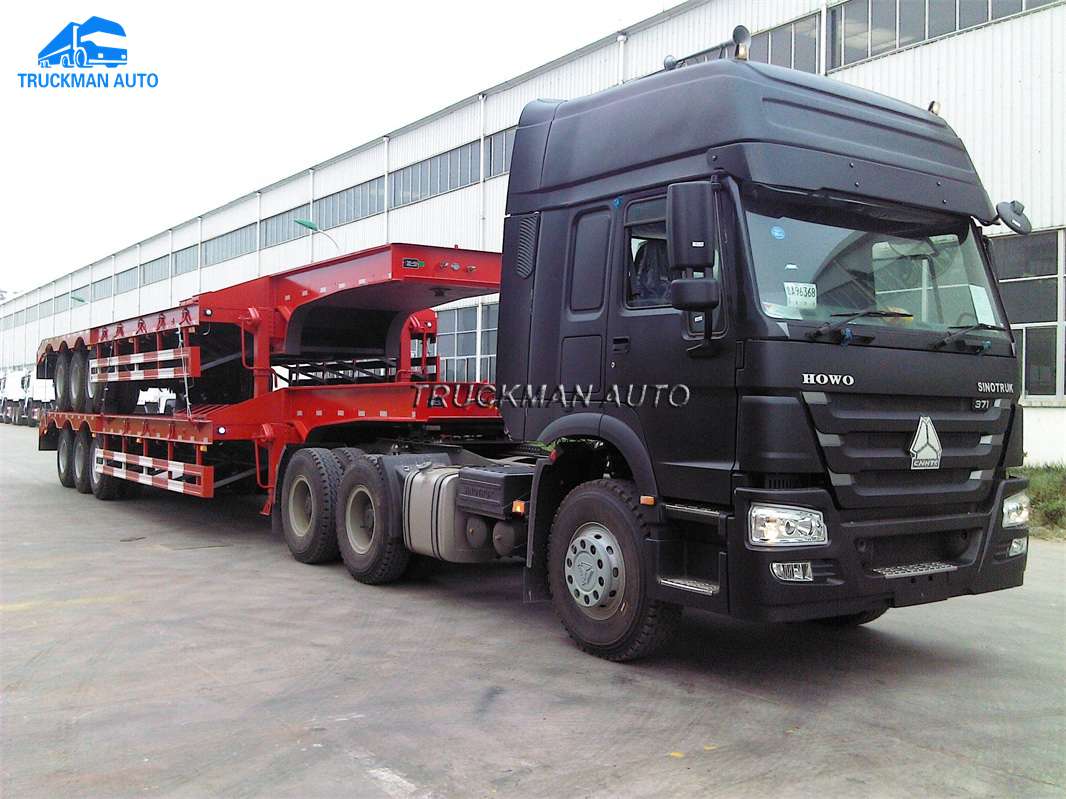

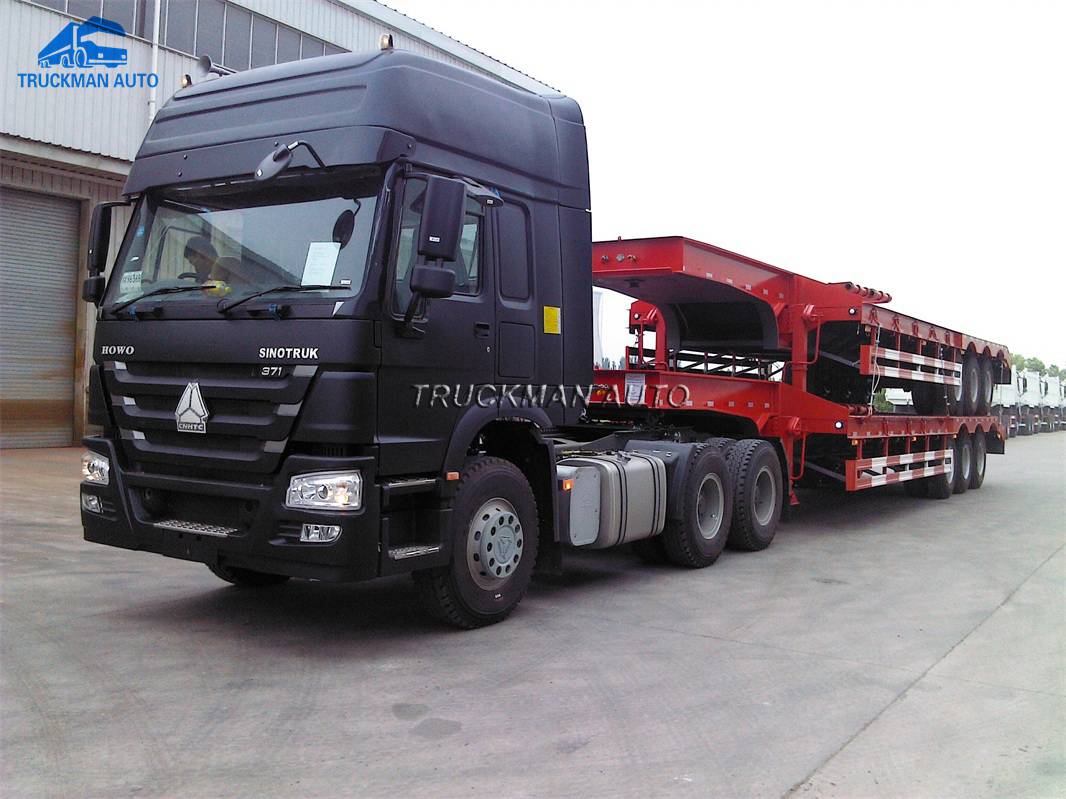

3 Axle Lowbed Semi Trailer For South Sudan
-1. Lowbed Semi Trailer Detail.
The lowbed semi trailer adopt the manganese plate Q345, and 8mm heavy duty suspension, 18mm thickness rim, also the leaf spring size is 90x16mm. Can guarantee the stability of the chassis and loading capacity.
-. The sub-frame and semi-hanging walking structure are made of high strength standard steel, welded and formed by special welding equipment. .
-. Integrated advanced low-alloy axle beam, whole axle beam no welding process. strong carrying capacity and high bending strength. Axle maintenance-free could reach 3 year / 400,000 kilometers.
-2. Lowbed Semi Trailer Specification.
|
Description |
Parameter Value |
|
Product Name |
Lowbed Semi Trailer |
|
Application |
For transport excavator, bulldozer |
|
Main Frame |
Bottom 18mm, middle 10mm, upper 16mm |
|
Axle |
3 axle, 3x13000 tons, ZY & FUWA brand |
|
Suspension |
Mechanical model, 8mm thickness |
|
Support Leg |
28 tons, JOST or FUWA brand |
|
Brake System |
WABCO brand |
|
Fifth Wheel |
3.5 inch, for heavy duty loading |
|
Tire |
315/80R22.5, 12 pcs, LINGLONG brand |
|
Rim |
18mm thickness, for heavy loading |
|
Loading Tons |
60 tons |
|
Ladder |
spring-assisted mechanical ladder |
|
Dimension |
13700x3000x1200mm |
The Lowbed semi trailer specification only for your reference, we will recommend other model lowbed semi trailer according to your request.

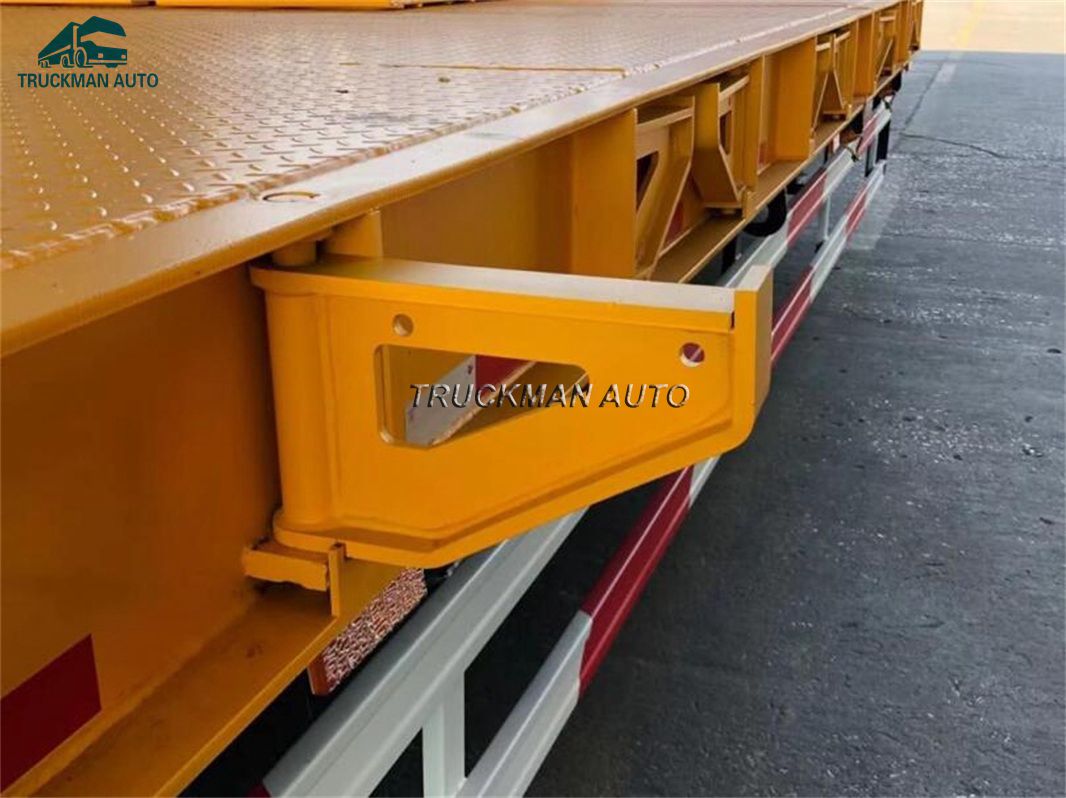

-3. Lowbed Semi Trailer Extension Board Picture.
Our lowbed semi trailer each side with 500mm extension board, so the lowbed semi trailer width can reach to 4000mm, suitable for big size machinery transport. And extension board material adopt the manganese plate too, extended service life.
