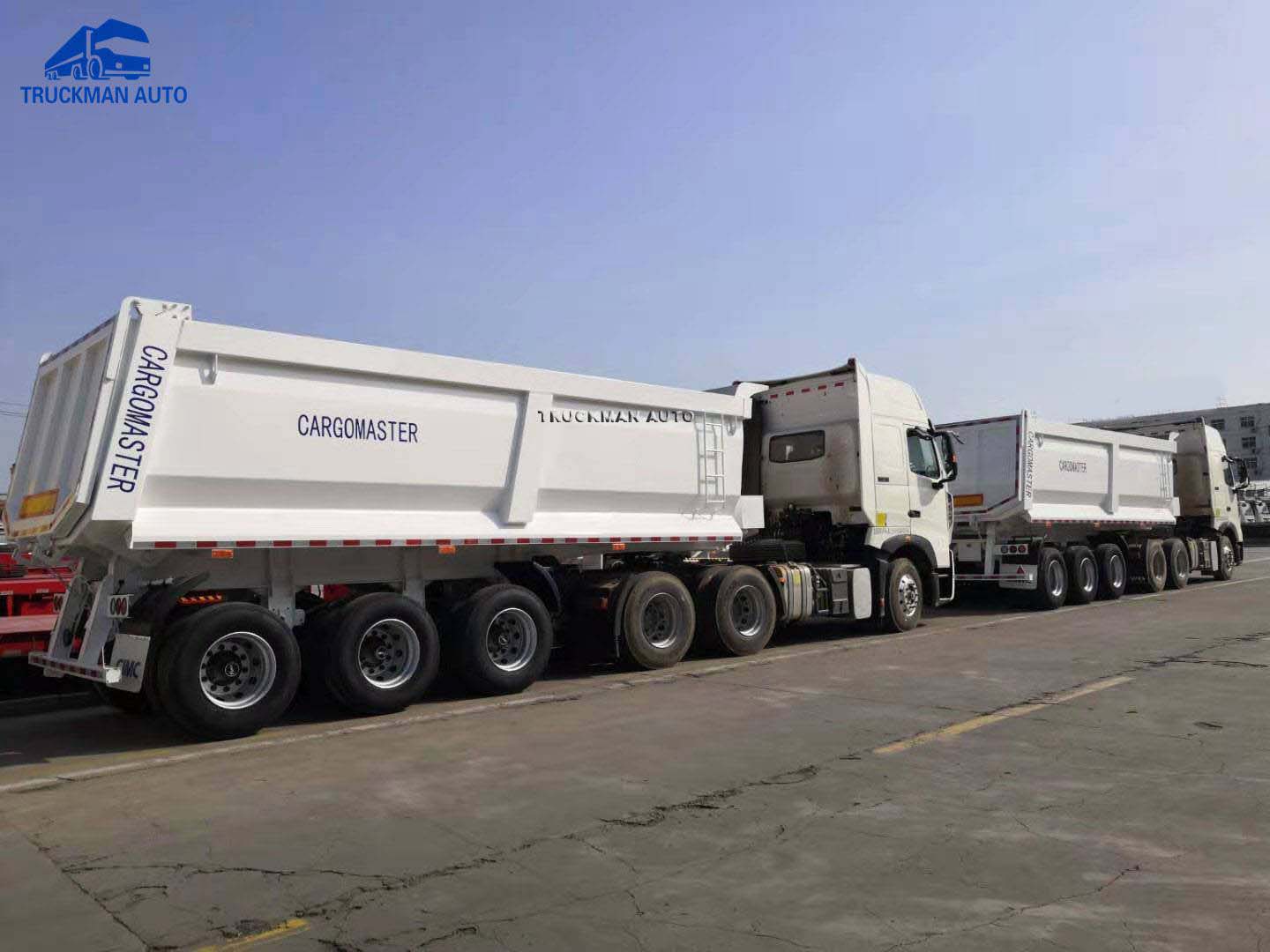

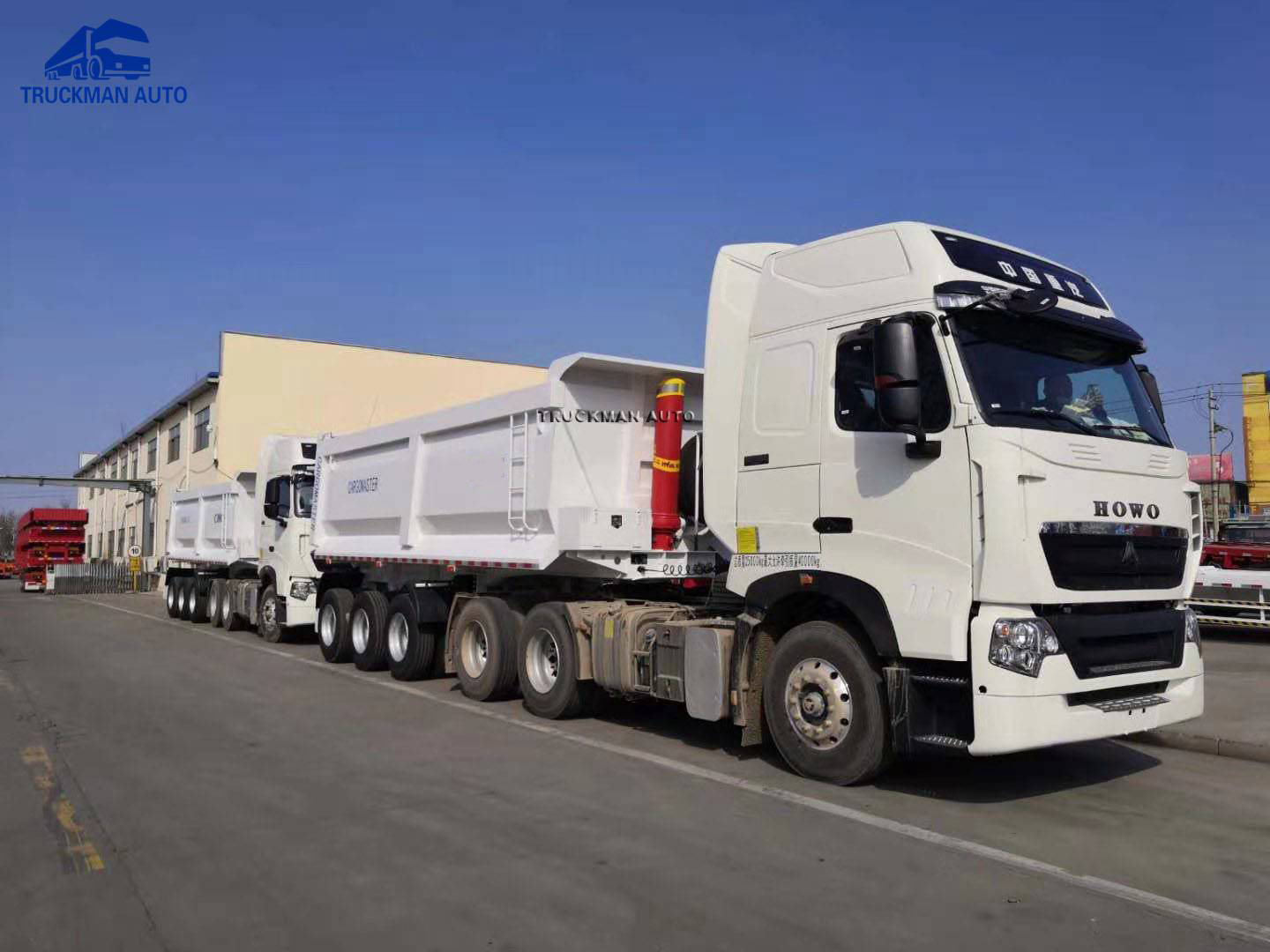

3 Axle 60 Tons Tipper Semi Trailer
-1. 3 Axle Tipper Semi Trailer Main Detail.
-. Normal shape and U shape cargo box available.
-. HYVA brand hydraulic lifting system;
-. Full and automatic welding for cargo box, more stronger;
-. Polyurethane paint, more beautiful and prevent corrosion.
-2. 3 Axle Tipper Semi Trailer Main Specification.
|
Description |
Parameter value |
|
Product Name |
3 Axle Tipper Semi Trailer |
|
Loading Weight |
60,000kg |
|
Tare Weight |
10,500kg |
|
Axle |
3 axle, 3x13 tons |
|
Suspension |
America type, 8mm thickness |
|
Leaf Spring |
90x16mmx10pcsx6sets |
|
Rim |
16mm thickness |
|
Tire |
12.00R20, 12 pcs |
|
Brake System |
WABCO brand, ABS and 8 pcs brake chamber |
|
Thickness Of Frame |
Upper plate 16mm, middle 8+8mm lower plate 18mm, “I” type main beam |
|
Cargo Box |
9500x2300x1500mm, bottom 8mm, side 6mm |
|
Material |
Q345, high strength steel |
|
Application |
Transport the construction and mining material |
|
Dimension |
10500x2500x3750mm |
The specification is only for reference, we could design the 3 axle tipper semi trailer according to your request.
-3. 3 Axle Tipper Semi Trailer Spray Wax Video.
Before delivery tipper semi trailer to our customers, we will spray wax for the tipper semi trailer, avoid the rusty issue. Beside this, we will also cover the rain clothes for tipper semi trailer, it's will great helpful.
