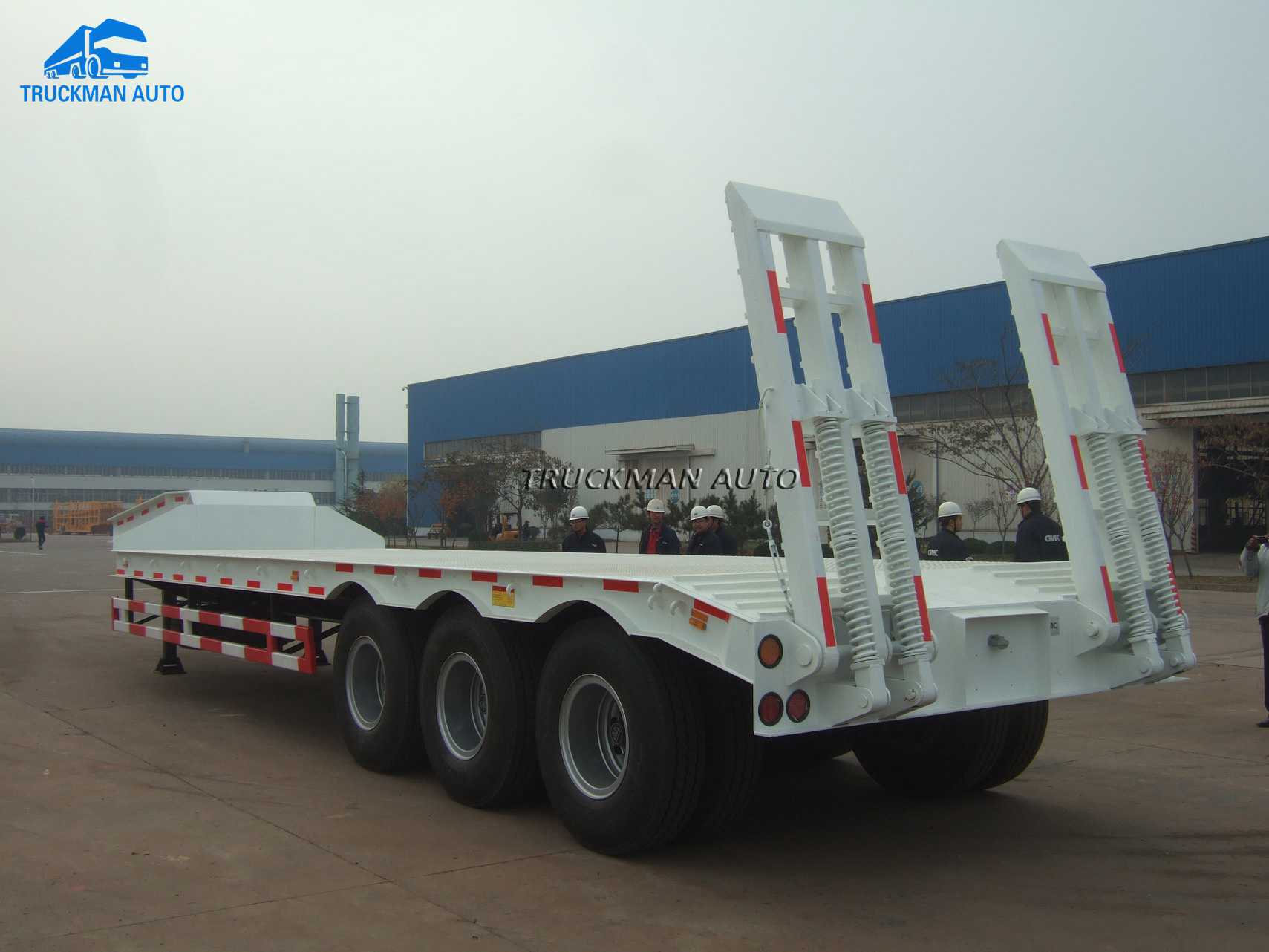

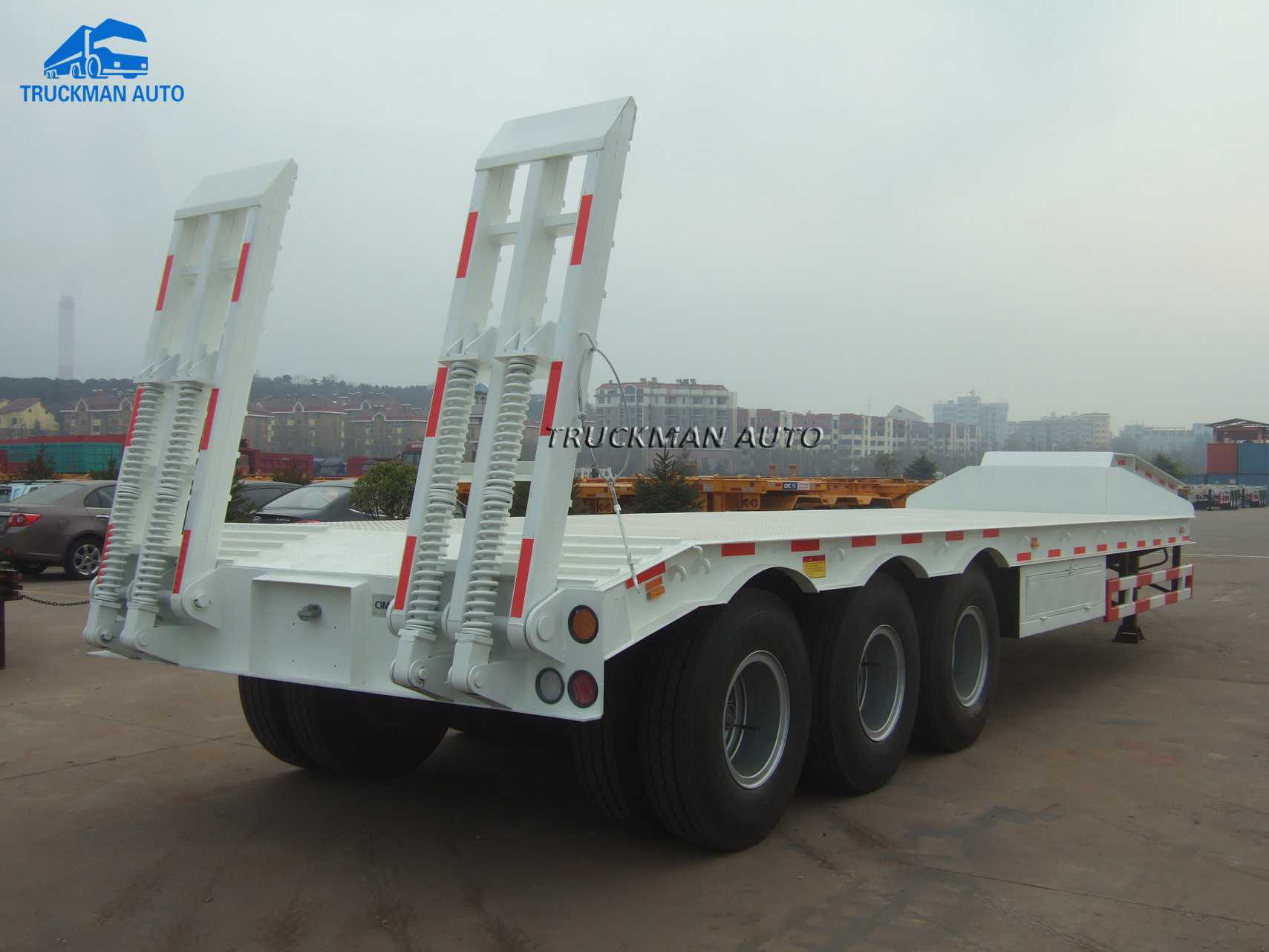

3 Axle 50 Tons Low Bed Trailer For Transport Heavy Equipment
-1. 3 Axle 50 Tons Low Bed Trailer Main Detail.
Low bed trailer mainly used for transport the heavy construction and mining machinery, the loading size could reach to 11000x3000mm. And the material adopt the high strength steel Q345, also the axle tons reach to 16 tons, and loading 50 ton with the stronger support leg. Now 3 axle 50 tons low bed trailer 20 days could finish production.
-2. 3 Axle 50 Tons Low Bed Trailer Main Specification.
|
Item |
Description |
|
Product Name |
3 axle 50 tons low bed trailer |
|
Axle |
3x13 Tons, FUWA or BPW |
|
Structure Material |
High strength steel, Q345 |
|
Support Leg |
JOST brand, 28 tons |
|
Brake System |
WABCO brand, 6 pcs brake chamber |
|
Tire |
LINGLONG tire, 12R22.5 or 12.00R20 |
|
Loading Tons |
50000kg |
|
Thickness Of Beam |
Upper 14mm, middle 10mm, lower 16mm |
|
Warranty |
12 months |

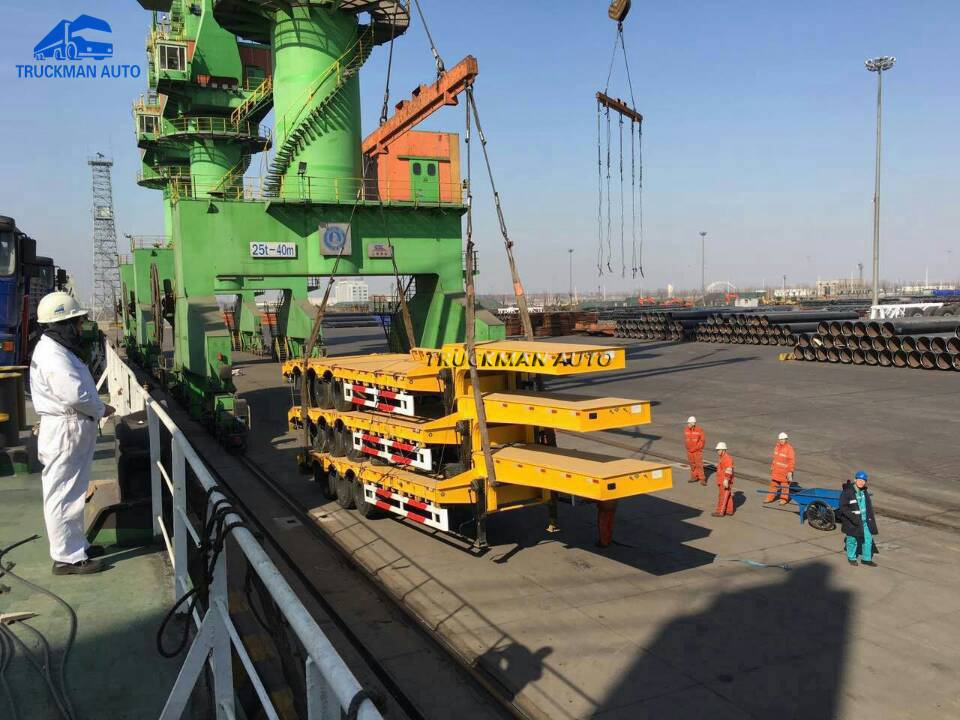

-3. 3 Axle 50 Tons Low Bed Trailer Shipment Picture.
3 pcs 3 axle 50 tons low bed trailer could make one together arrange the shipment save the freight cost, and will optional the rain clothes protect the low bed trailer.
If the low bed trailer length not over 12000mm, could put into the container also. More cheaper freight cost and short delivery time.
