20000L Fuel Tanker SINOTRUK HOWO NX 380HP 6X4 Fuel Tank Truck
20000L Fuel Tanker SINOTRUK HOWO NX 380HP 6X4 Fuel Tank Truck Features
HOWO NX fuel tank truck adopts 380 horsepower WEICHAI engine and 10-speed gearbox, 400L aluminum alloy fuel tank and 10+1 tires without liner. The tank body of the tank truck can be selected as 10000L, 15000L, 20000L, etc. according to customer needs. Users can also install a refueling machine to sell oil products. If users want to load multiple types of oil, they can also choose sub-compartments.
20000L Fuel Tanker SINOTRUK HOWO NX 380HP 6X4 Fuel Tank Truck Specification
|
Description |
Parameter Value |
|
Product Name |
20000 liters SINOTRUK HOWO NX10 wheels fuel tank truck |
|
Application |
Logistics work |
|
Engine |
WP10.380E22, 380HP, EURO II |
|
Cabin |
H77L-R model cabin, with one bed, A/C |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
315/80R22.5, 10+1 pcs |
|
Lifting Cylinder |
Hydraulic lifting |
|
Fuel Tank |
400L |
|
Color |
Optional |
|
Dimension |
8960x2450x3460mm |
20000 liters SINOTRUK HOWO 10 wheels fuel tank truck specification only for your reference, we will recommend other model SINOTRUK truck basic your request.
20000L Fuel Tanker SINOTRUK HOWO NX 380HP 6X4 Fuel Tank Truck Tank Body
HOWO NX fuel tanker is a closed tank, generally an elliptical cylinder, which can disperse the pressure of liquid on the tank wall and has the functions of oil absorption, oil pumping, and multiple oil packaging and release. The tank of HOWO NX fuel tanker is generally made of high-quality low-carbon steel plate. The tank is divided into front and rear parts by a partition to isolate each other. Each compartment is equipped with a wave-breaking board to enhance the stability of the tank and reduce the impact of oil on the tank during driving.

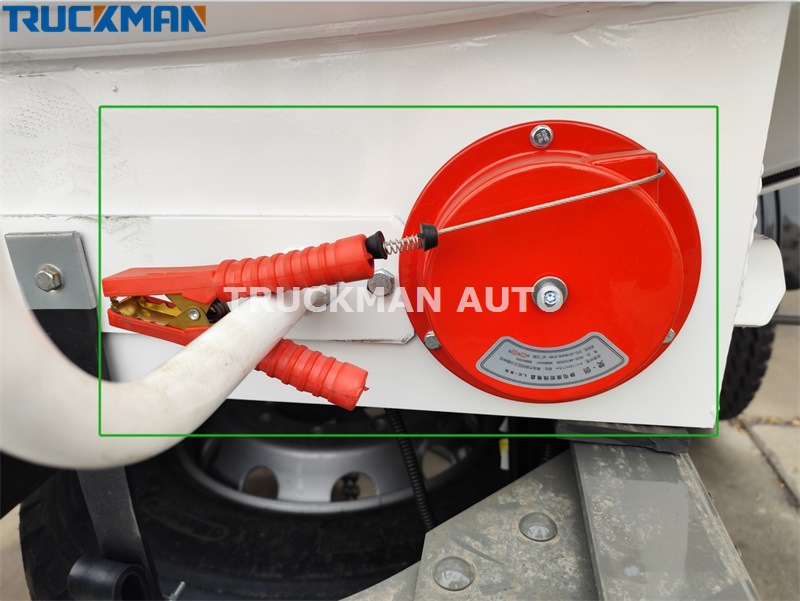

20000L Fuel Tanker SINOTRUK HOWO NX 380HP 6X4 Fuel Tank Truck Anti Static Device
20000L fuel tanker is equipped with anti-static belt and anti-static reel to prevent static electricity. Anti-static belt has good conductivity and flexibility, can maintain good contact with the ground, conduct static electricity in time, and will not produce sparks, and will not affect the conductivity due to rust and other problems. The purpose of installing anti-static towing belt is to prevent the body from carrying static electricity. Avoid excessive static electricity during the driving of the tanker, which may cause flammable and explosive phenomena.
