10 Wheel Sino Dump Truck For Africa
10 Wheel Sino Dump Truck Advantage
10 wheel Sino dump truck adopt the 371HP big power engine, 10 forward easy shift gearbox, wear resistant tires and durable cargo box. It’s very popular in mining site, can suitable for various tough working environments.
-. 9.726L displacement engine, 6 cylinder line and maximum output power is 273kW.
-. Fuel tank standard capacity is 300L, can optional 400L. Material is aluminum alloy.
10 Wheel Sino Dump Truck Specification
|
Description |
Parameter Value |
|
Product Name |
10 wheel Sino dump truck |
|
Application |
Transport bauxite, sand, gravel etc |
|
Loading Capacity |
25,000kg |
|
Engine |
WD615.47, 371HP, EURO II |
|
Cabin |
HW76, with one bed, A/C, left hand drive |
|
Gearbox |
10 forward and 2 reverse gear |
|
Tire |
12.00R20, 10+1 pcs |
|
Bucket |
5600x2300x1500mm, bottom 8mm side 6mm |
|
Front Axle |
VGD95, 9500kg |
|
Driving Axle |
HC16, 2x16000kg |
|
Fuel Tank |
300L |
|
Dimension |
8660x2580x3450mm |
The 10 wheel sino dump truck specification only for your reference, we will recommend other model sino dump truck basic your request.

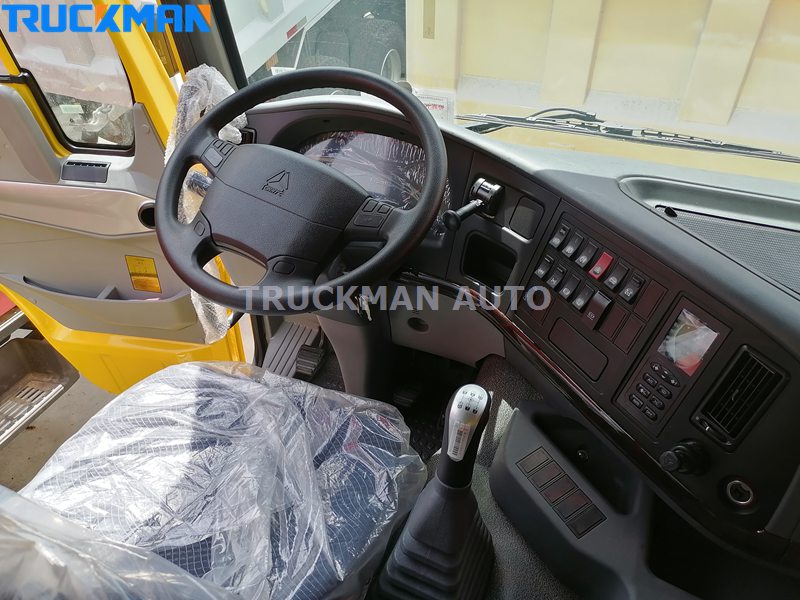

10 Wheel Sino Dump Truck Cabin Detail
The 10 wheel Sino dump truck cabin have three model, HW70 model, without bed, HW76 model with one bed and HW79 model with two bed. All model cabin door window glass adopt the electric control and driver seat can optional the air suspension, with USB charging port.
