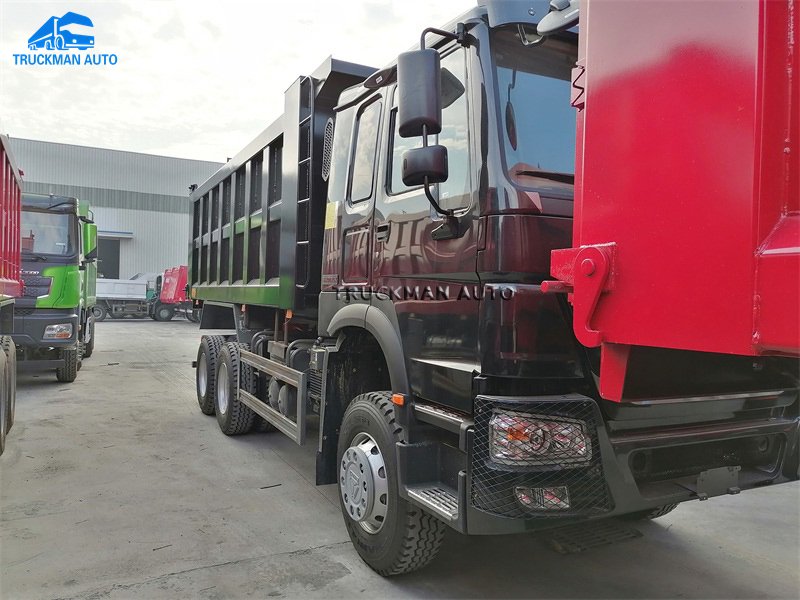

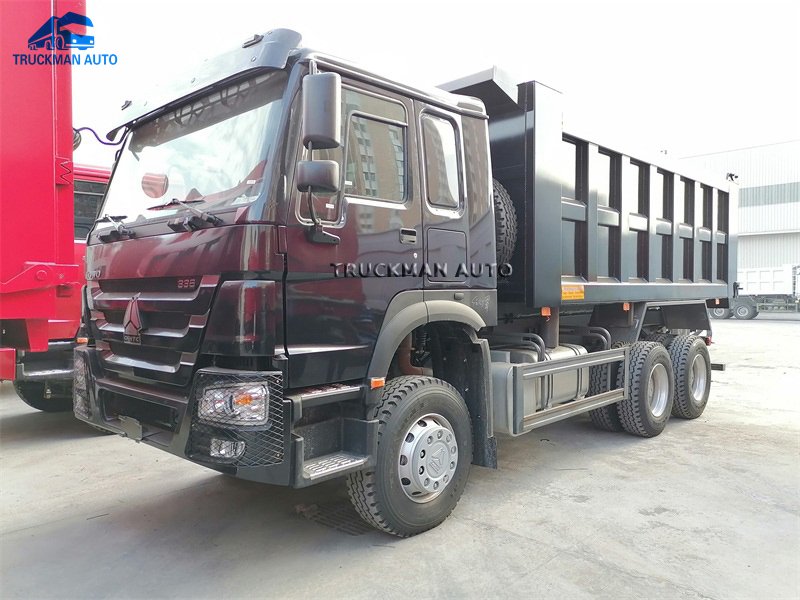

10 Wheel 6x4 SINOTRUCK Dump Truck For Sierra Leone
-1. Main Information For SINOTRUCK Dump Truck.
According to our Sierra Leone customer feedback, we recommend our SINOTRUCK dump truck with the below specification, such as tubeless tire for hot weather working, small two rear door for long timber etc transport. And customer ask us optional black color for SINOTRUCK dump truck, cause it not easy dirty :)
-2. Main Specification For SINOTRUCK Dump Truck.
|
Model |
SINOTRUCK Dump Truck |
|
Engine |
WD615.69, 336HP |
|
Cabin |
HW76 cabin, one bed, A/C. |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
315/80R22.5, 10+1 spare tire, TRIANGLE brand |
|
Cargo Box |
5600x2300x1500mm, 19.3m3 |
|
Loading Tons |
25-30 Tons |
|
Fuel Tank Capacity |
300L |
|
Max Speed |
75km/h |
|
Warranty |
1 year |

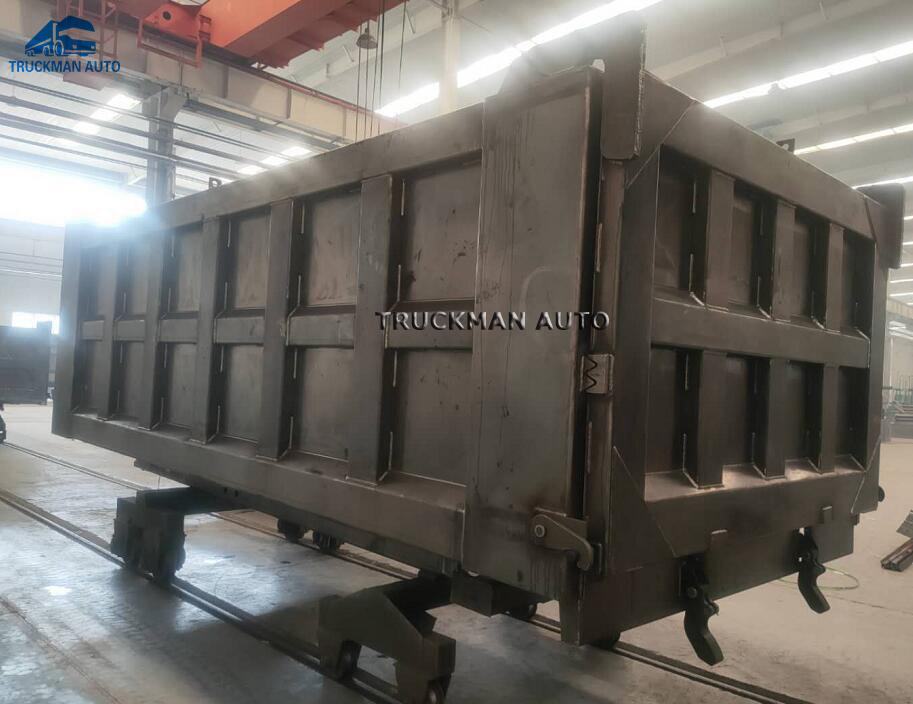

-3. SINOTRUCK Dump Truck Cargo Box Information.
Details Of Cargo Box
|
Size |
5600x2300x1500mm, 19.3m3 (16-20m3 available) |
|
Thickness |
Bottom is 8mm, side is 6mm |
|
Lifting Type |
Middle lifting |
|
Beam of Number |
4 |
|
Cargo Box Shape |
Normal shape (rectangle) |
|
Others |
Lamp, fuel tank, battery protect cover |
Main Material For SINOTRUCK Dump Truck Cargo Box.
According to truck work condition and loading goods class, we have different model material for the truck cargo box produce. The normal we use the manganese plate for cargo box, and there are also have other type material, as follow:
HARDOX 450 wear plate. With high hardness, high strength and high toughness, HARDOX wear plate is obviously the ideal choice for those severely worn occasions. The high wear resistance of the steel plate extends the body of the dump truck.
Q460 steel. Q represents the strength of steel, 460 represents 460 MPa. This type steel usually suitable for the big stone transport, the price and quality more reasonable.
