10 Wheel 371HP SINOTRUCK HOWO Mining Dump Truck

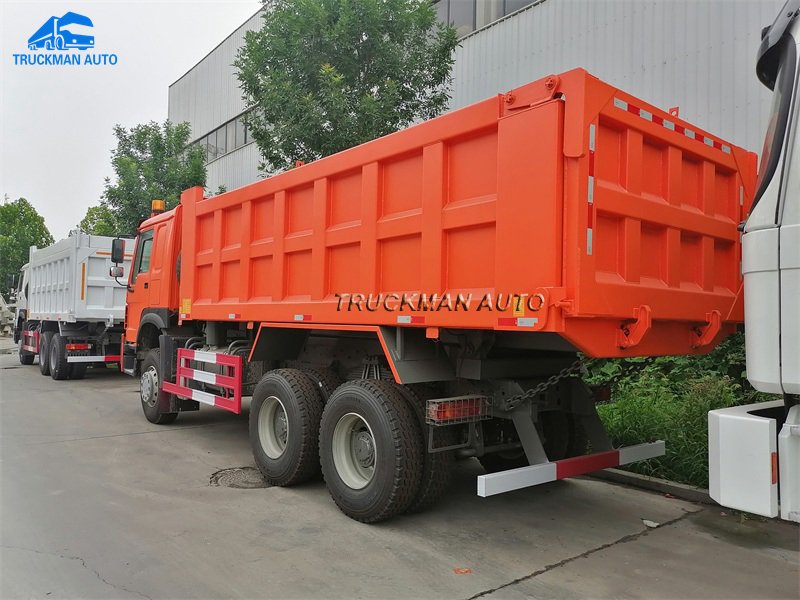

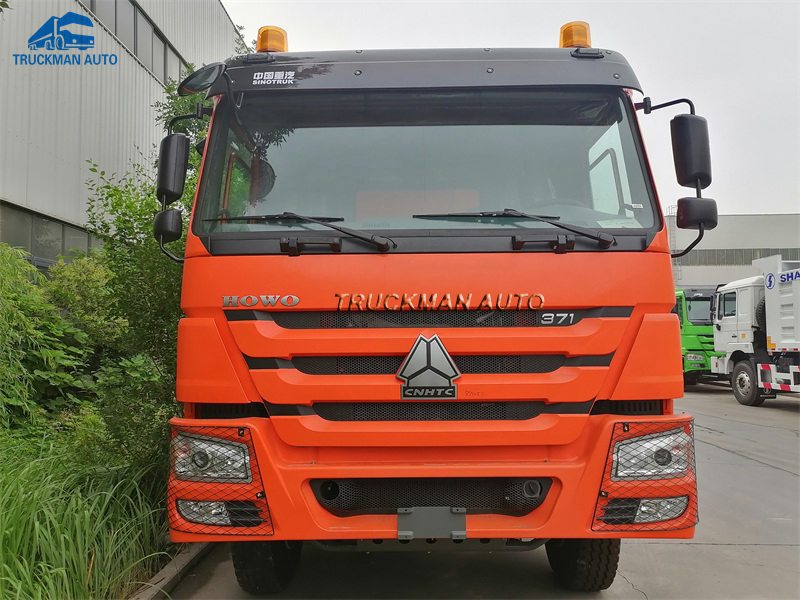

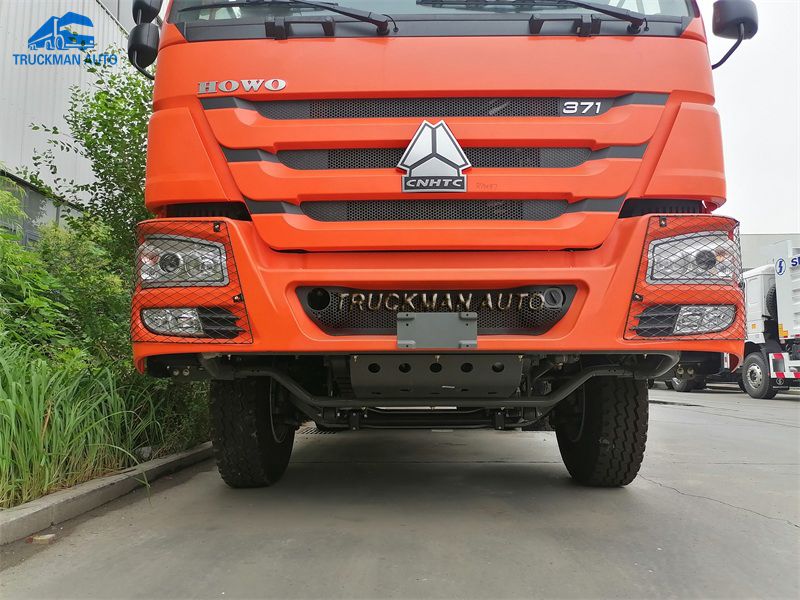

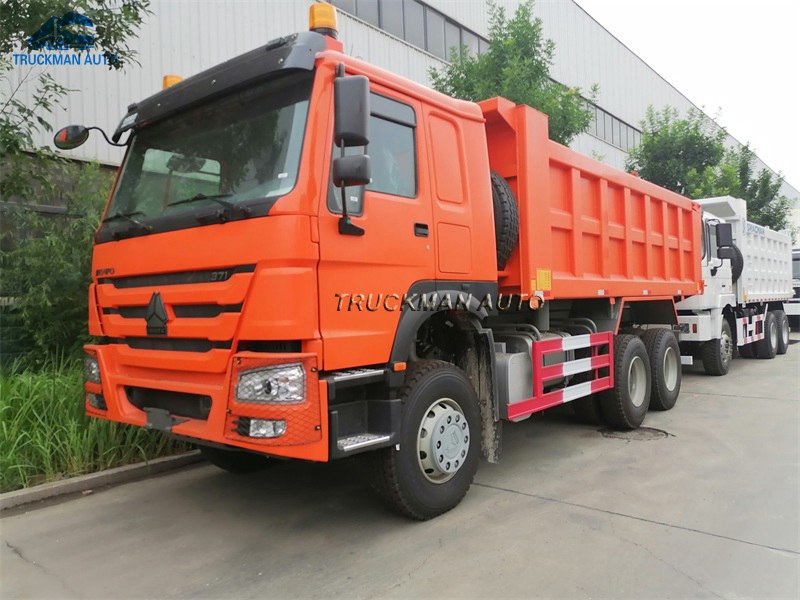

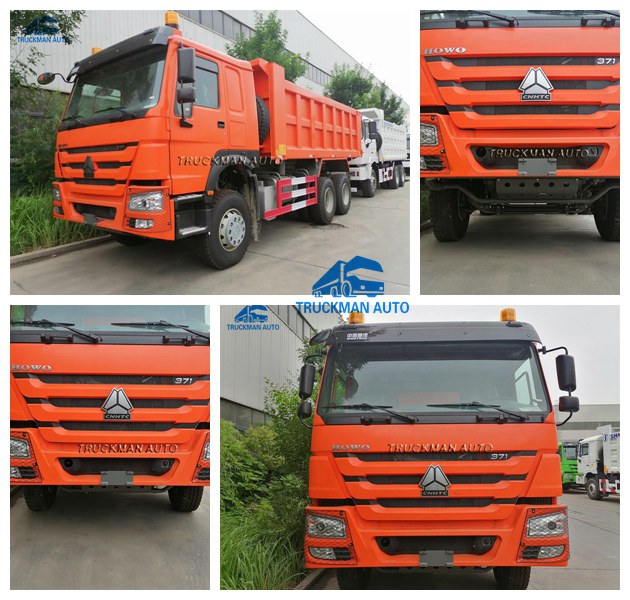

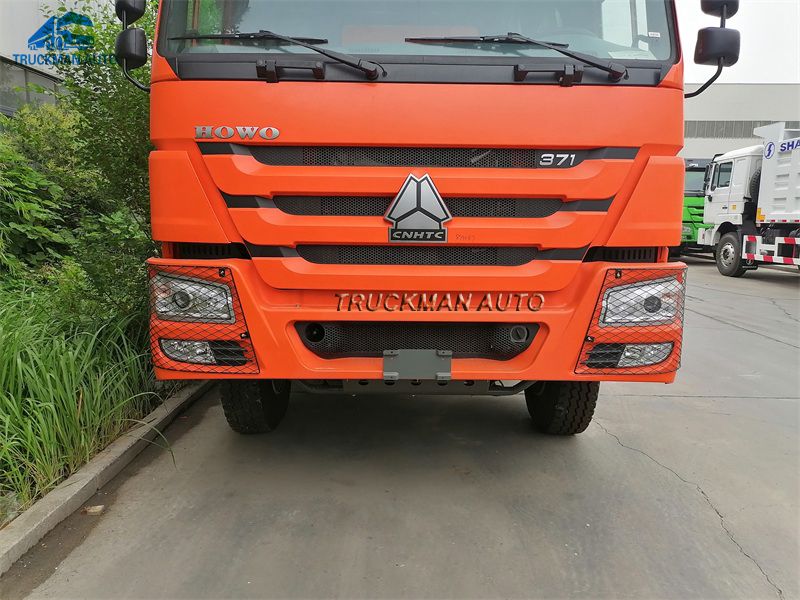

-1. SINOTRUCK HOWO Mining Dump Truck Detail.
SINOTRUCK HOWO mining dump truck can suitable for construction and civil engineering work, the easy broke parts like lamp, intercooler cooler, radiator, battery etc all with good protect cover, avoid the unnecessary lose. Also the tire have radial and tubeless model can optional, meet the different road request
-2. SINOTRUCK HOWO Mining Dump Truck Main Specification.
|
Description |
Parameter value |
|
Product Name |
SINOTRUCK HOWO Mining Dump Truck |
|
Application |
For civil engineering and mining sanitation |
|
Engine |
WD615.47, 371HP, EURO 2 |
|
Cabin |
HW76, with one bed, A/C, electric window switch |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Cargo Box |
5600x2300x1500mm, 19.32 cubic meters |
|
Tire |
12.00R20/13R22.5/12R24, 10+1 pcs, TRIANGLE brand |
|
Front Axle |
HF9, 9 tons axle, 9000kg |
|
Drive Axle |
HC16, 16 tons axle, 2x16000kg |
|
Oil Tank |
300L (400L optional) |
|
Loading Tons |
25-30 Tons |
|
Max Speed |
75km/h |
|
Dimension |
8350x2560x3450mm |
The SINOTRUCK HOWO Mining Dump Truck specification is only for reference, we could recommend the other model SINOTRUCK HOWO mining dump truck according to your request.

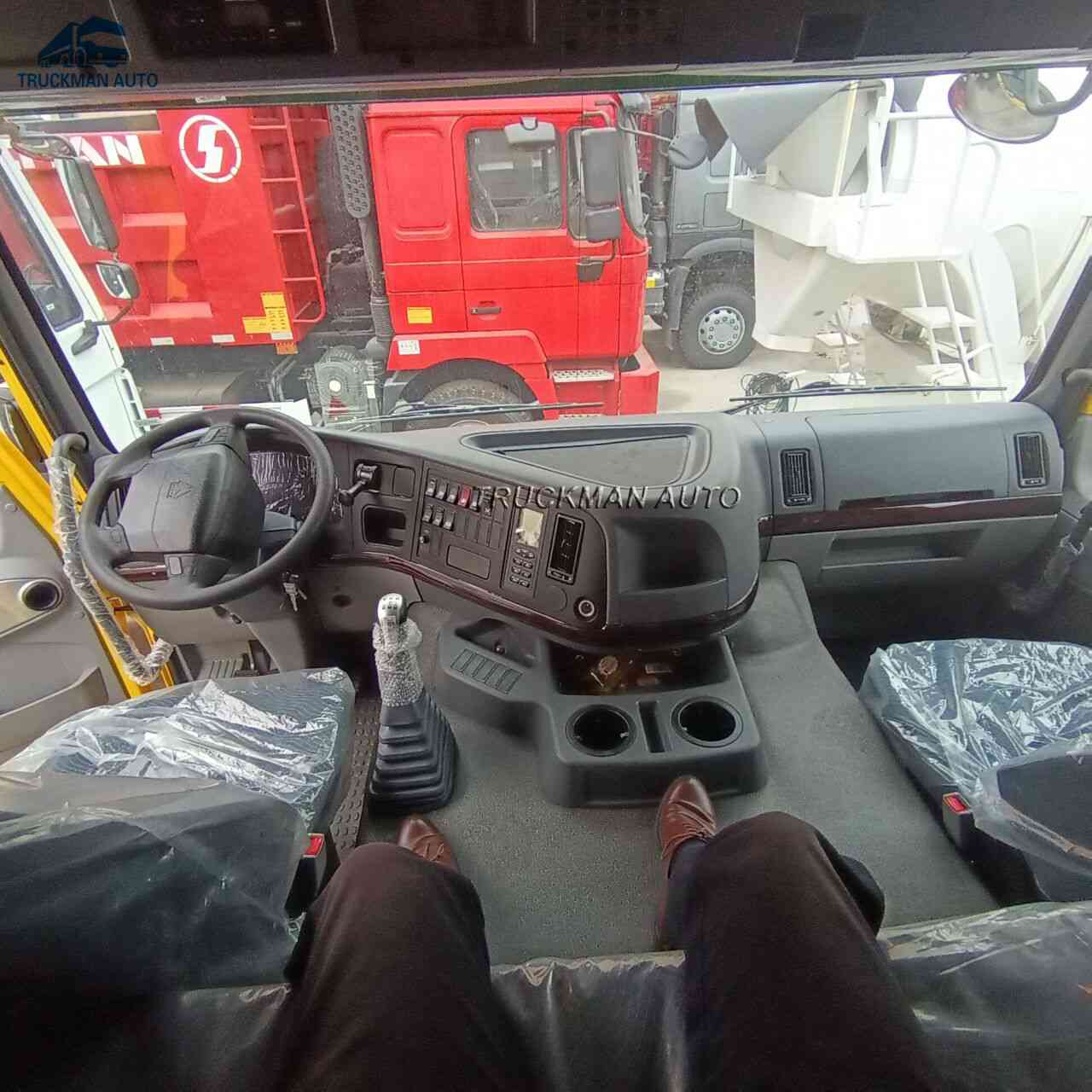

-3. SINOTRUCK HOWO Mining Dump Truck Cabin Picture.
-. HOWO 76 New face cab (one bed,with air conditioner),
-. 2- arm windscreen wiper system with three speeds,
-. laminated windscreen with casted-in radio aerial,
-. hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat,
-. with heating and ventilating system,
-. adjustable roof flap,
-. with stereo radio/cassette recorder,
-. safety belts and adjustable steering wheel, air horn,
-. with 4-point support fully floating suspension and shock absorbers.
