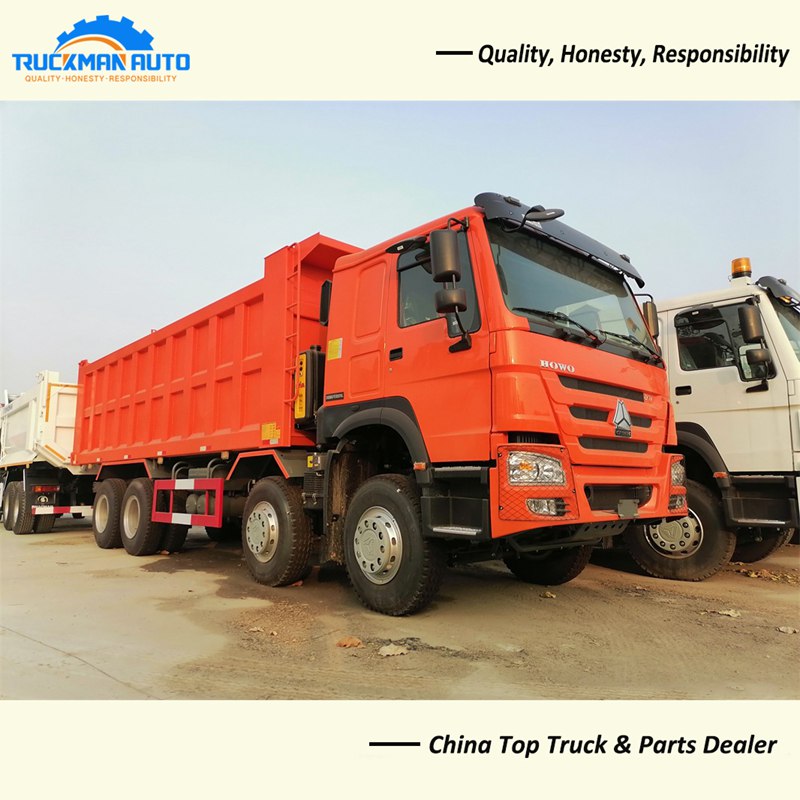

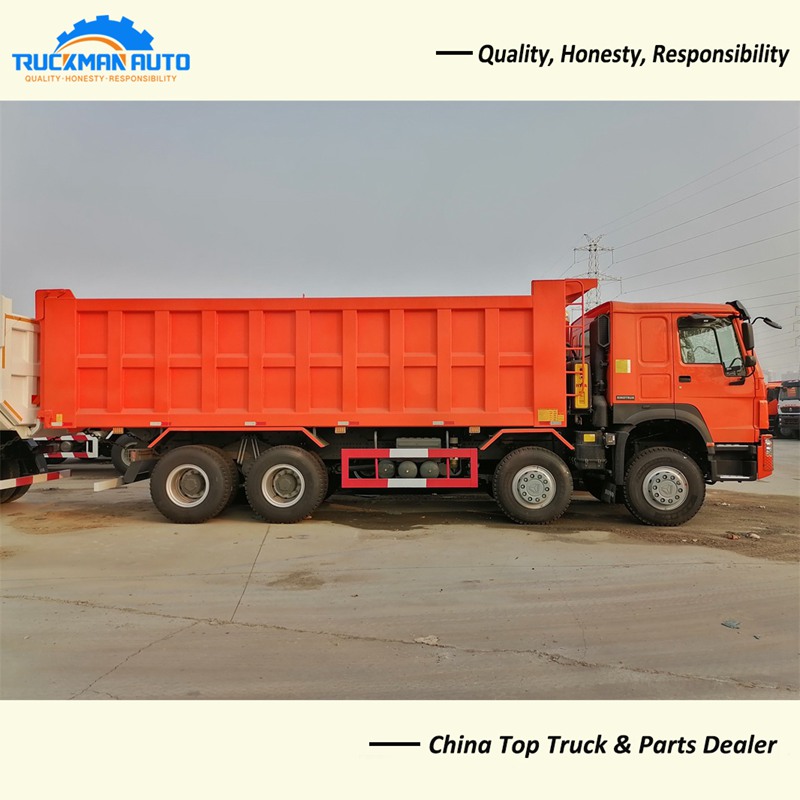

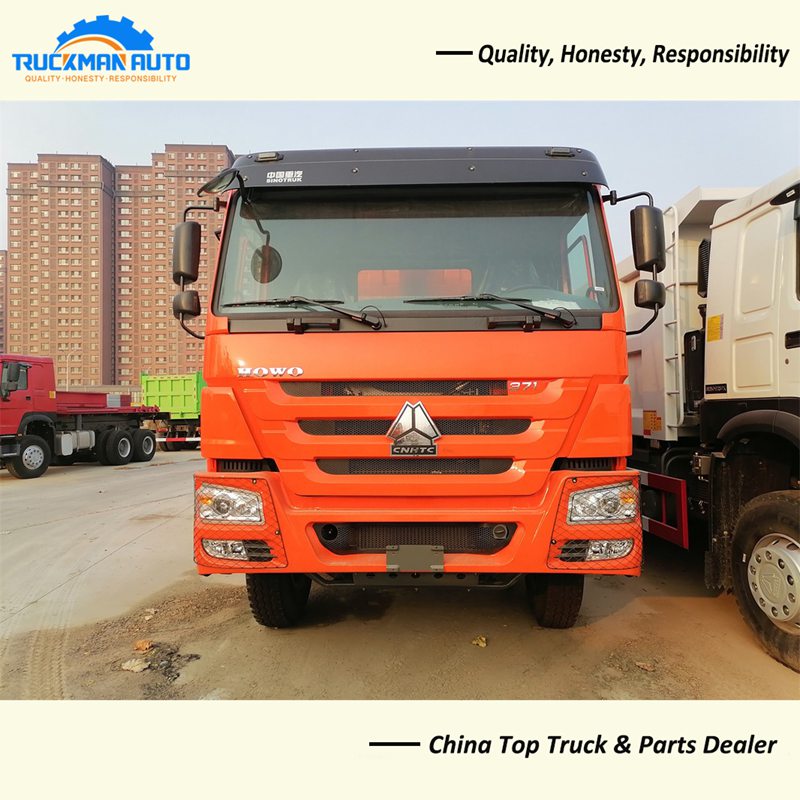

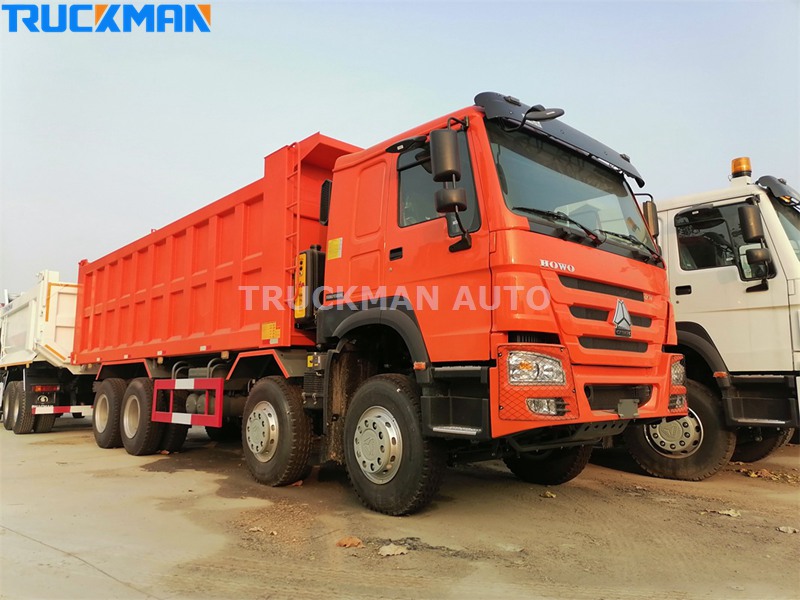

SINOTRUCK 12 Wheel 50 Tons Tipper Truck

SINOTRUCK 12 Wheel 50 Tons Tipper Truck
SINOTRUCK 12 Wheel 50 Tons Tipper Truck
SINOTRUCK 12 Wheel 50 Tons Tipper Truck
SINOTRUCK 12 Wheel 50 Tons Tipper Truck
SINOTRUCK 12 Wheel 50 Tons Tipper Truck
SINOTRUCK 12 Wheel 50 Tons Tipper Truck
Product Name : SINOTRUCK 12 Wheel 50 Tons Tipper Truck
Product ID : ZZ3317N3567W
Engine : 400HP, EURO 2
Cabin : With one bed, A/C
Gearbox : 10 forward and 2 reverse gear
Cargo Box : 7300x2300x1500mm
Max Speed : 75km/h
Directions

SINOTRUCK 12 Wheel 50 Tons Tipper Truck Features



The SINOTRUK 12 wheel tipper truck driving type is 8x4, with 2 pcs 9.5 ton front axle and 2 pcs 16 ton rear axle. Now can adopt the WEICHAI 400HP and 430HP more bigger power engine.

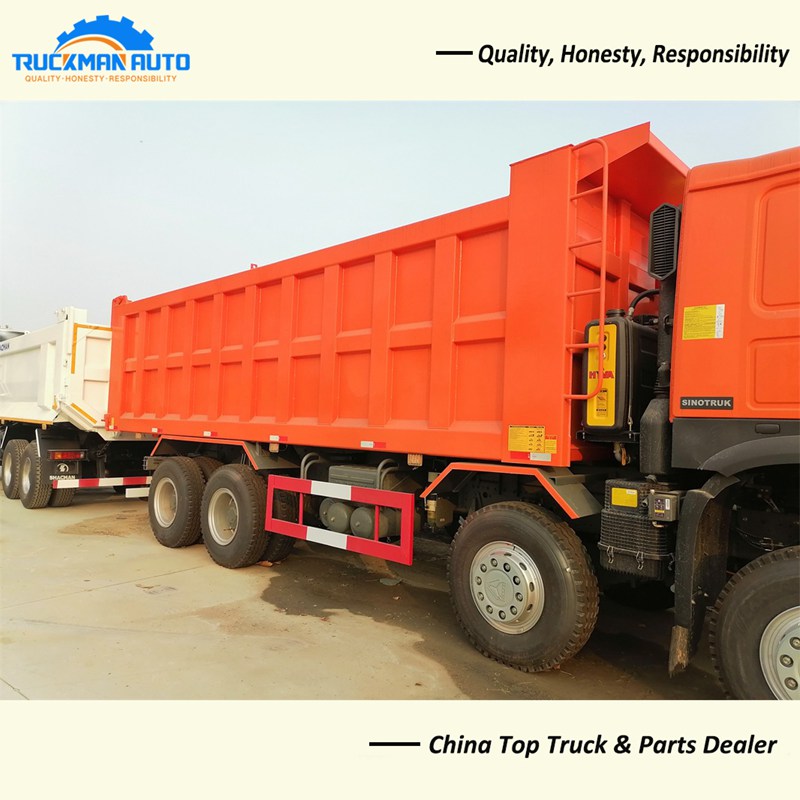

-. Cargo box Q355 manganese plate and robot automatic welding tech, high strength, abrasion resistant and resistant to cracking.



-. Can optional the EVB, ABS etc safety equipment, improve the driving safety.





SINOTRUCK 12 Wheel 50 Tons Tipper Truck Specification



Description

Parameter Value

Product Name

SINOTRUCK 12 Wheel 50 Tons Tipper Truck

Application

Transport sand, block, gravel etc

Loading Capacity

50,000kg

Engine

WP12.400E201, 400HP, EURO II

Cabin

HW76, with one bed, A/C

Gearbox

10 forward and 2 reverse gear

Tire

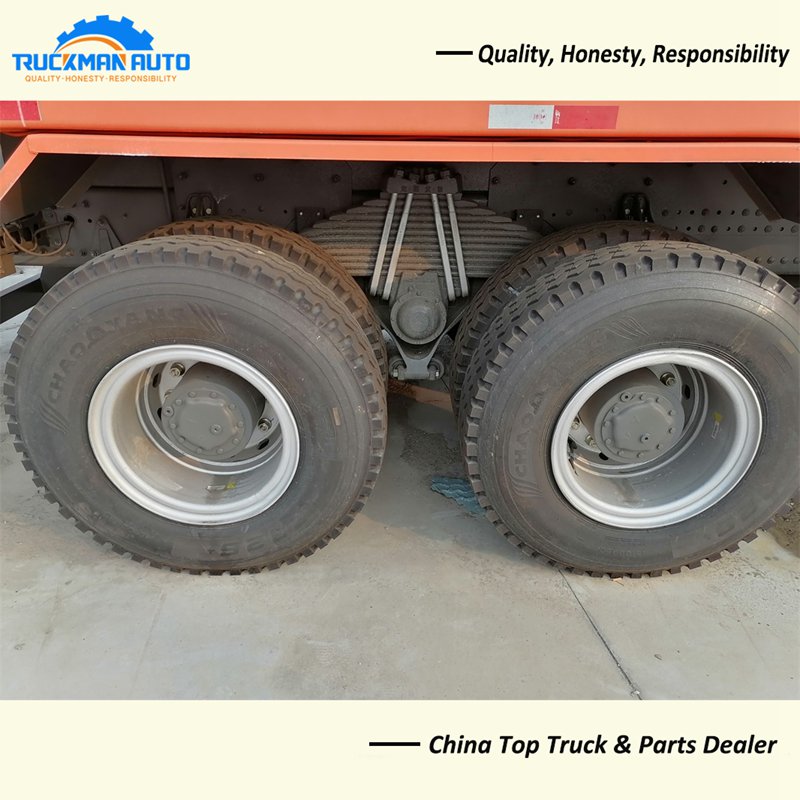

12.00R20, 12+1 pcs, radial model

Cargo Box

7300x2300x1500mm

Front Axle

VGD95, 2x9500kg

Driving Axle

HC16, 2x16000kg

Fuel Tank

400L

Dimension

10500x2560x3450mm



The SINOTRUCK 12 wheel 50 tons tipper truck specification only for your reference, we will recommend other model SINOTRUCK tipper truck basic your request.



SINOTRUCK 12 Wheel 50 Tons Tipper Truck Engine

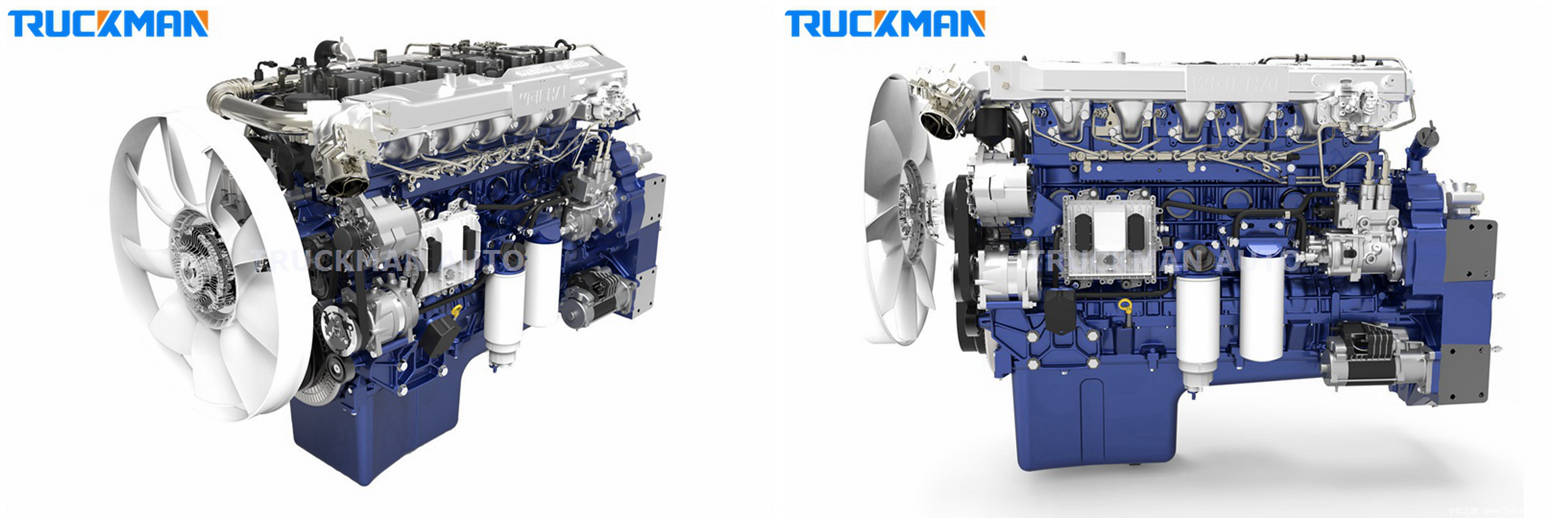

The SINOTRUCK tipper truck adopts the WEICHAI brand WP12.400E201 engine with a maximum power of 400 hp and a maximum torque of 1920 N.m. The engine has EURO 2 emissions and is matched to the HW19710 manual gearbox with a traditional iron housing for added strength.
