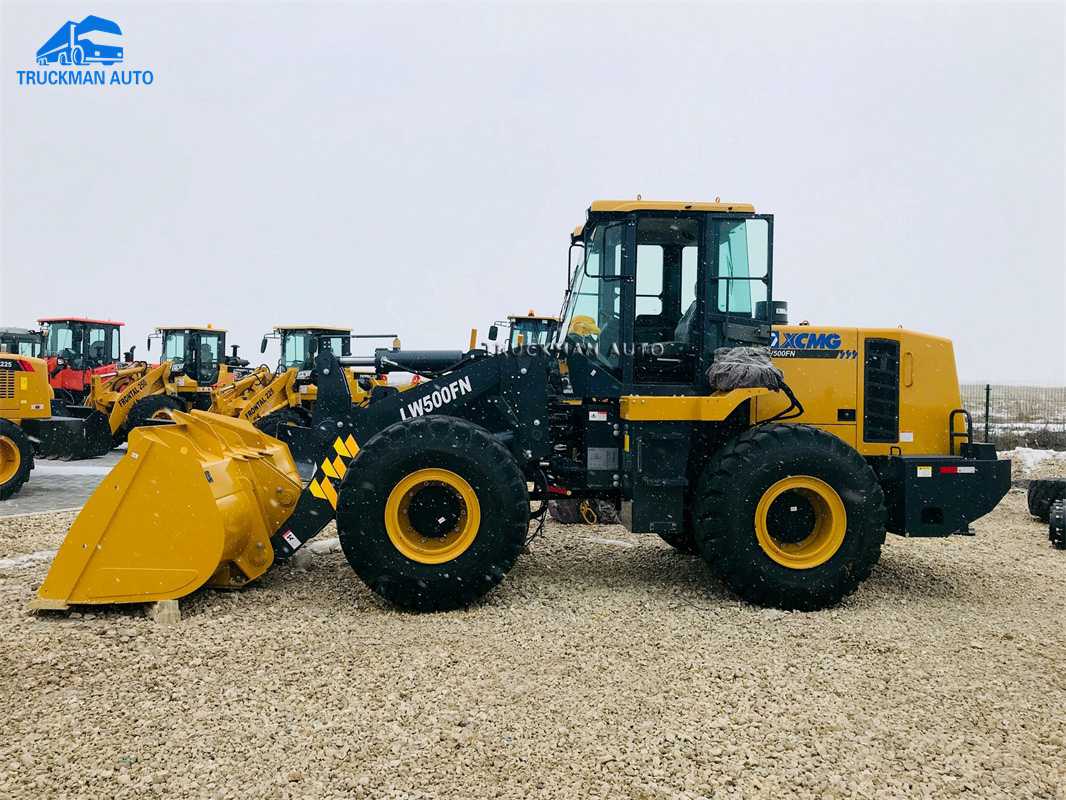

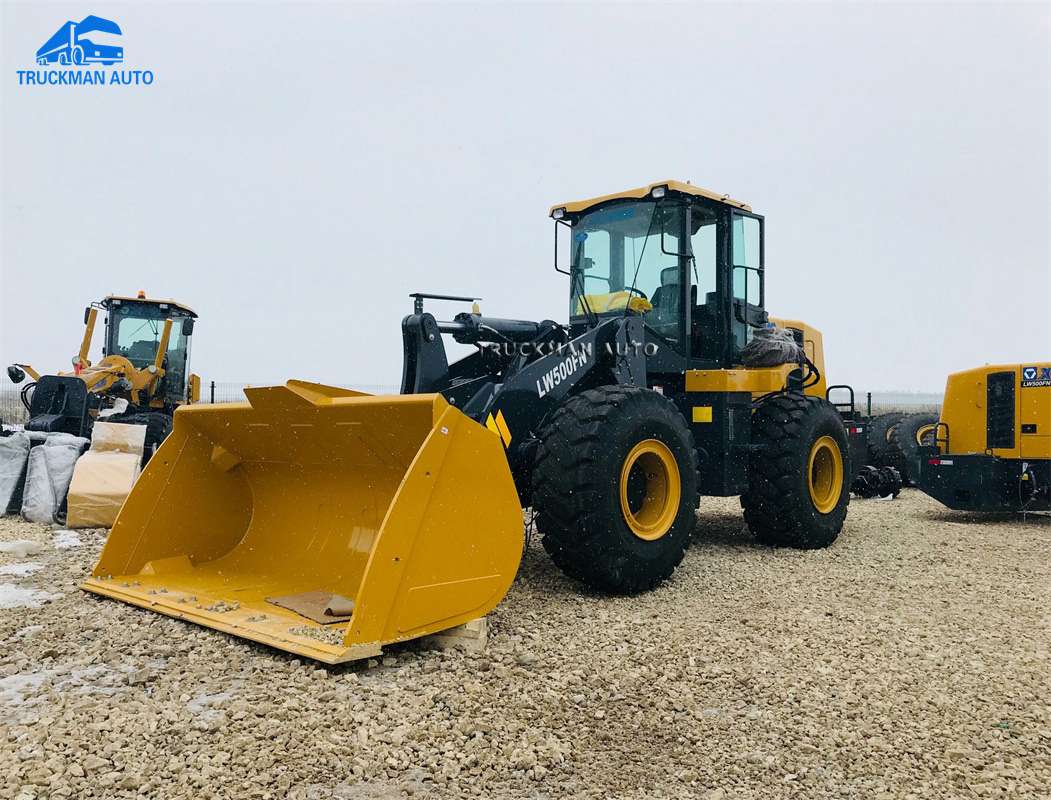

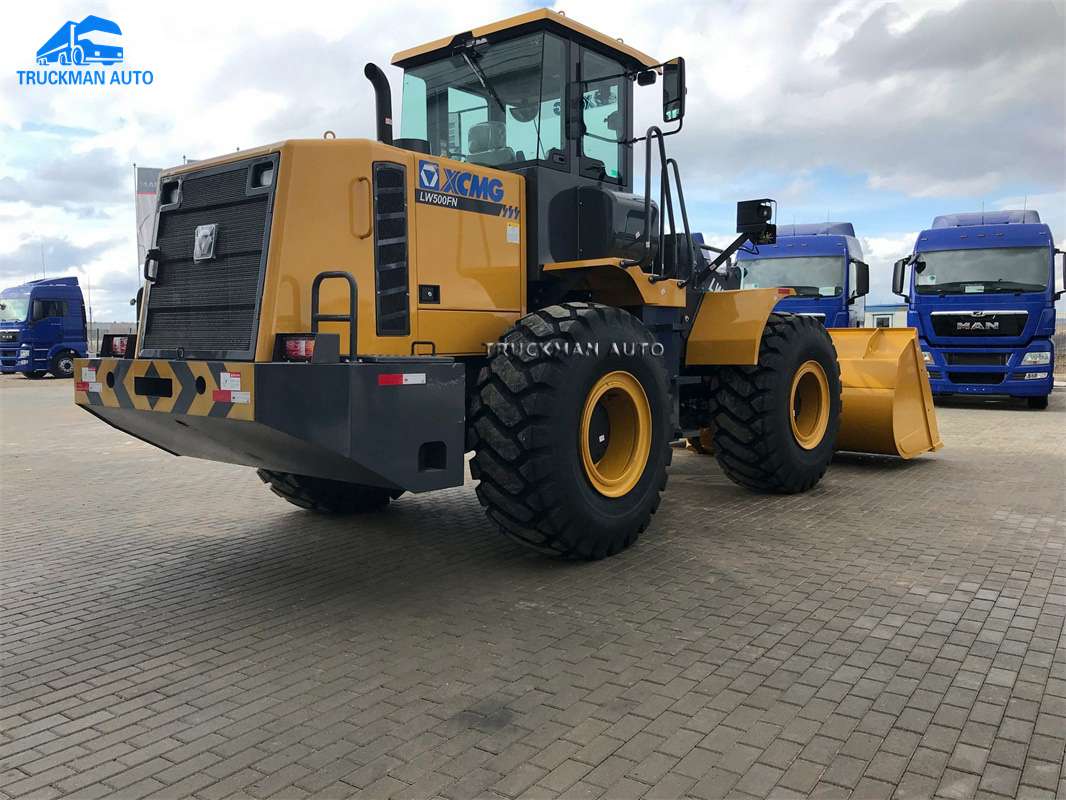

XCMG LW500FN 5 Tons Front End Wheel Loader For Sale

XCMG LW500FN 5 Tons Front End Wheel Loader For Sale
XCMG LW500FN 5 Tons Front End Wheel Loader For Sale
XCMG LW500FN 5 Tons Front End Wheel Loader For Sale
XCMG LW500FN 5 Tons Front End Wheel Loader For Sale
Product Name : XCMG LW500FN 5 Tons Front End Wheel Loader For Sale
Product ID : LW500FN
Bucket Capacity : 2.5~4.5m³
Dump Clearance At Maximum Lift : 3150~3560mm
Hydraulic Cycle Time Raise : ≤6s
Total Hydraulic Cycle Time : ≤10.5s
Min. Turning Radius Over Tyres : 5950mm
Directions

-1. XCMG LW500FN 5 Tons Front End Wheel Loader Main Detail.



XCMG LW500FN 5 tons front end wheel loader with different bucket could optional, such as the grasping grass pliers, sliding fork, rock bucket, light material blade bucket etc. And the air conditioner also need optional, now the XCMG LW500FN wheel loader main parts all work with famous company, such as WEICHAI engine etc. With long time warranty.





Description

Unit

Parameter value

Rated operating load

kg

5000

Bucket capacity

2.54.5

Machine weight

kg

16900

Dump clearance at maximum lift

mm

31503560

Reach at maximum lift

mm

11001190

Wheel base

mm

2960

Tread

mm

2250

Height of hinge at maximum lift height

mm

4112

Working height(fully lifted)

mm

5510

Max.breakout force

kN

170

Hydraulic cycle time-raise

s

≤6

Total hydraulic cycle time

s

≤10.5

Min. turning radius over tyres

mm

5950

Articulation angle

°

35

Gradeability

°

28

Tyre size



23.5-25-16PR

Overall machine dimension L×W×H

mm

7910×3016×3515

Model



WD10G220E21

Rated Power

kW

162

Fuel Tank

L

250

Hydraulic Tank

L

210

Travel Speed

km/h

13-40



-2. XCMG LW500FN 5 Tons Front End Wheel Loader Different Bucket Work.





Standard Bucket: Standard 3.0m3 bucket the dumping height could reach to 3500mm

Clamp: For grab and transport of various woods and tubing

Bale Grabber: Its used for the grabbing and handing of light materials such as straws and paper boards

Snow Plough: For snow removing in roads and urban streets

Rock Bucket: Its dedicated for handling of hard materials such as rock, featuring good resistance against wear and impact
