XCMG Brand 67m Concrete Pump Truck With HOWO Truck Chassis
-1. XCMG Brand Concrete Pump Truck Main Specification
-. XCMG V7 series truck mounted concrete pump is a new generation equipment which is developed by XCMG and SCHWING Germany technology.
-. It is highly reliable and durable with seven technical highlights. More advanced boom structure technology.
-. More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology.
-. More reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.
|
Description |
Unit |
Parameter value |
|
|
Outline dimension |
mm |
15780×2500×4000 |
|
|
Overall weight |
kg |
54000 |
|
|
Chassis |
Model |
|
Actros5046 |
|
Manufacturer |
|
|
|
|
Max. speed |
km/h |
85 |
|
|
Max. grade-ability |
% |
51.4 |
|
|
Wheelbase |
mm |
2020 + 5180 + 1350 + 1450 |
|
|
Engine |
Model |
|
OM501LA·V6 |
|
Max. power |
kW |
335 |
|
|
Max. torque |
N·m/(r/min) |
2200/1080 |
|
|
Displacement |
L |
11.946 |
|
|
Emission standard |
|
Eruo V |
|
|
Pumping system |
Theoretical output |
m³/h |
170 |
|
Concrete pumping pressure |
MPa |
8 |
|
|
Theoretical pumping times |
Time/min |
21~23 |
|
|
Delivery cylinder diameter ×stroke |
mm |
φ260×2200 |
|
|
Max. diameter of pumping concrete |
mm |
≤40 |
|
|
Filling height |
mm |
1570 |
|
|
Concrete slump range |
cm |
8~23 |
|
|
Placing boom |
Reach height |
m |
66.1 |
|
Reach depth |
m |
48.6 |
|
|
Slewingradius |
m |
60.9 |
|

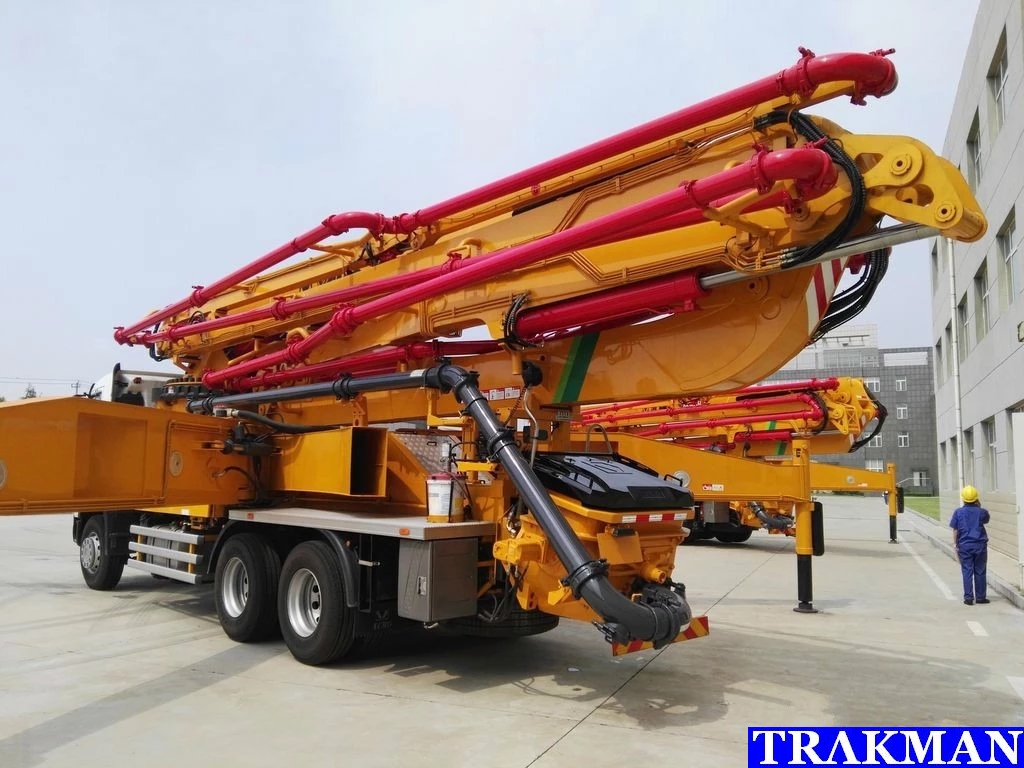

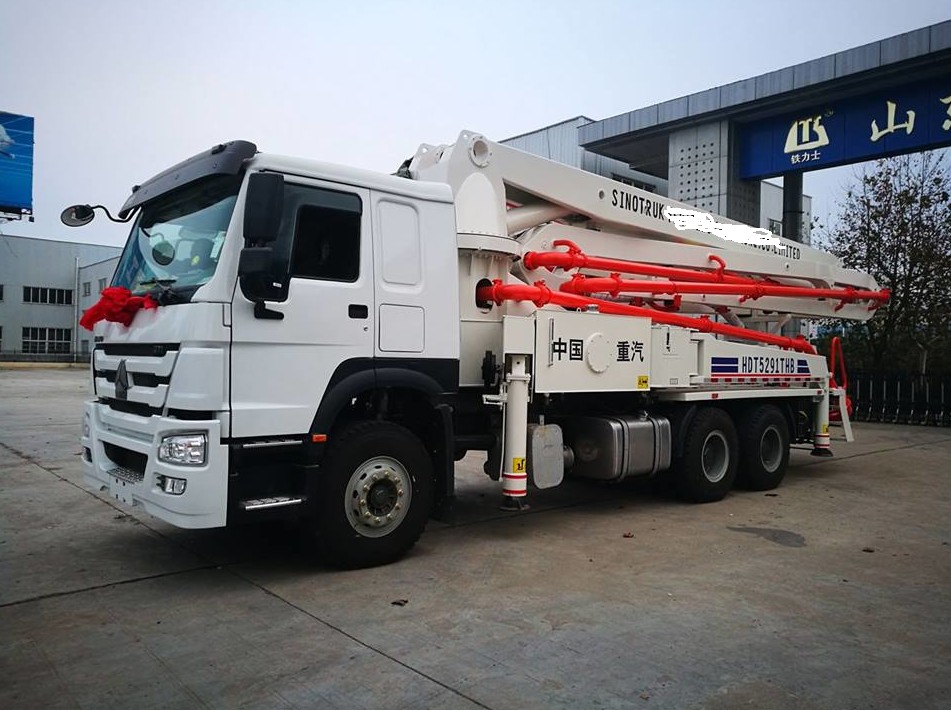

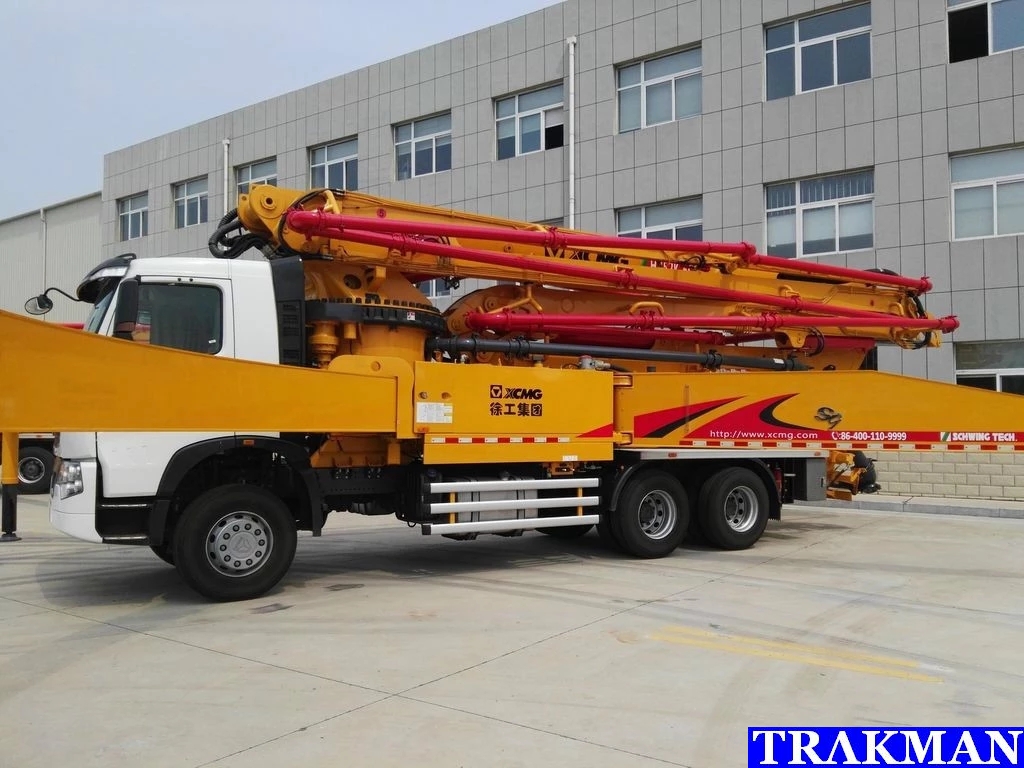

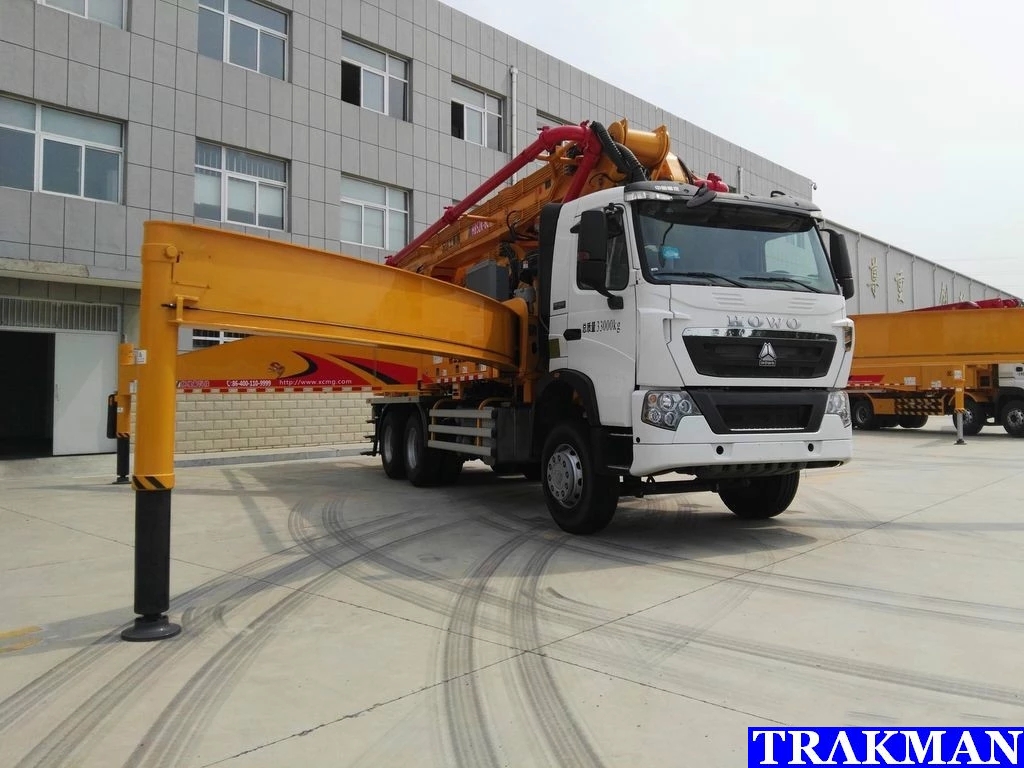

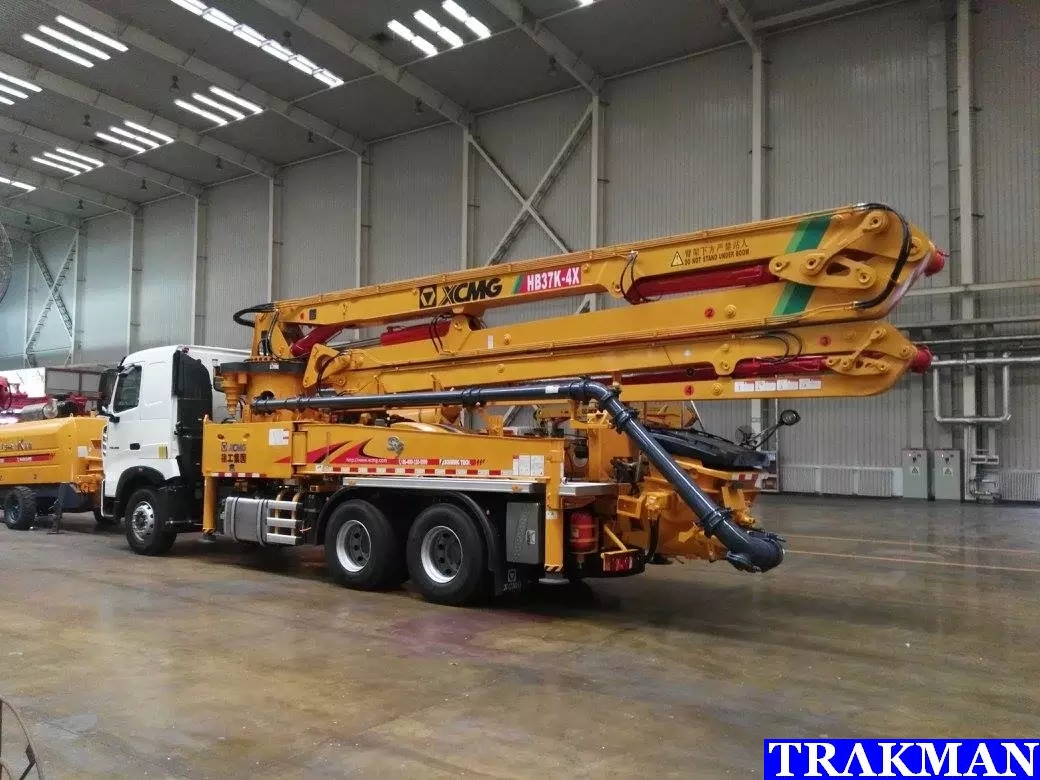

-2. Truck Picture For Reference.
-3. Shipment Picture.
Now our SINOTRUK trucks could adopt the RO-RO, BULK, FRAME Vessel, we will recommend to you according to your request.

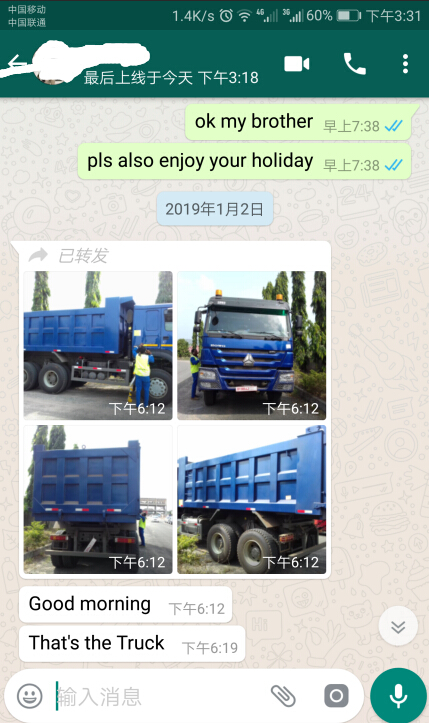

-4. Customers Received Truck.
Our customers received trucks last week, he is very satisfied with our service, delivery time and product quality. He told us that the next order will come soon.
