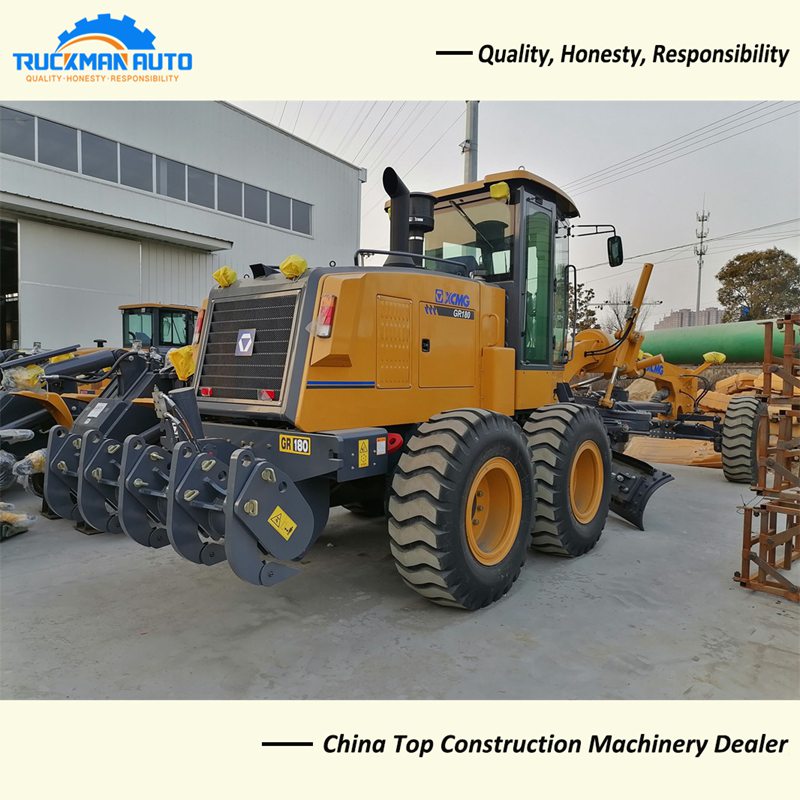

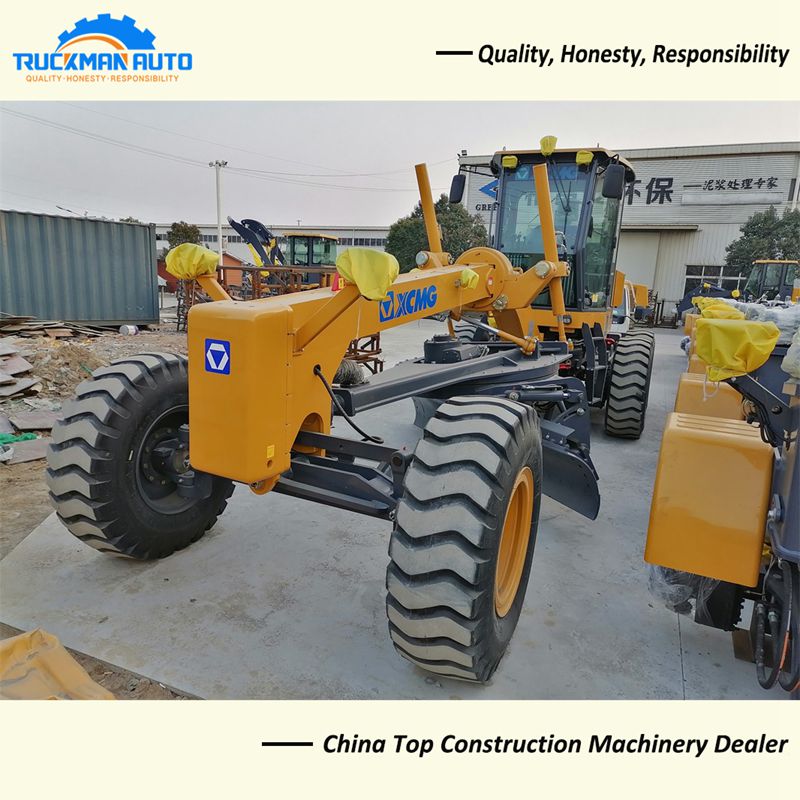

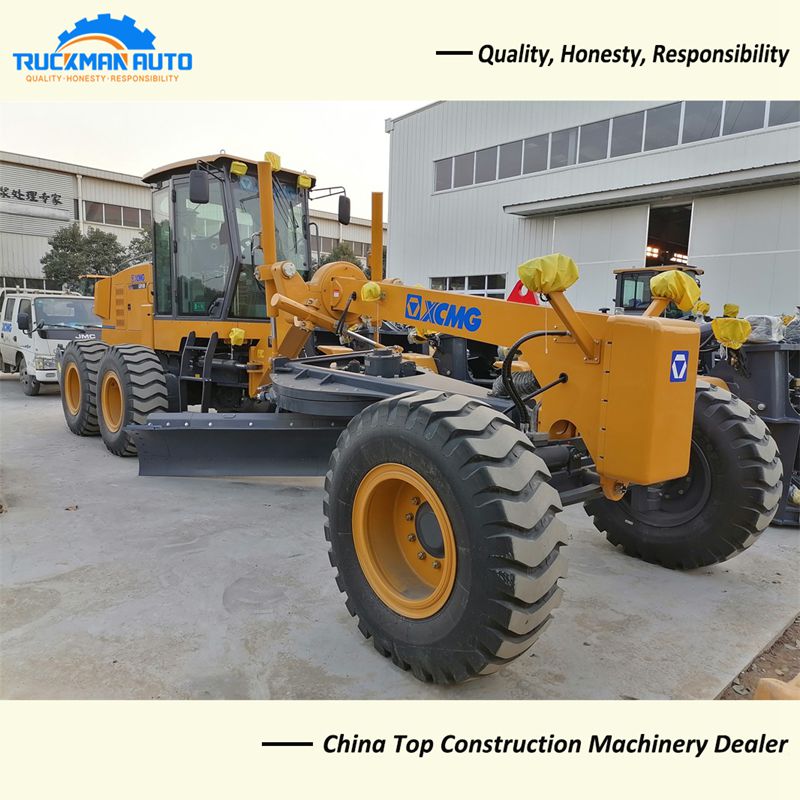

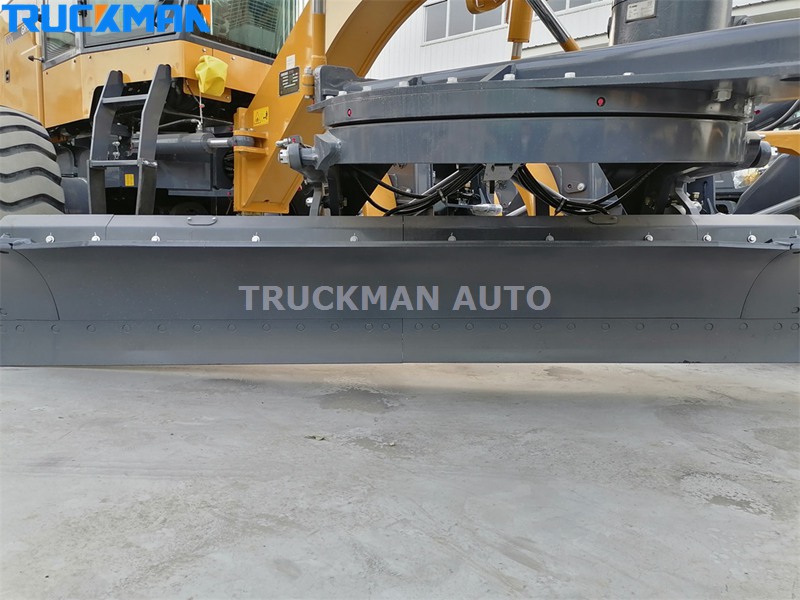

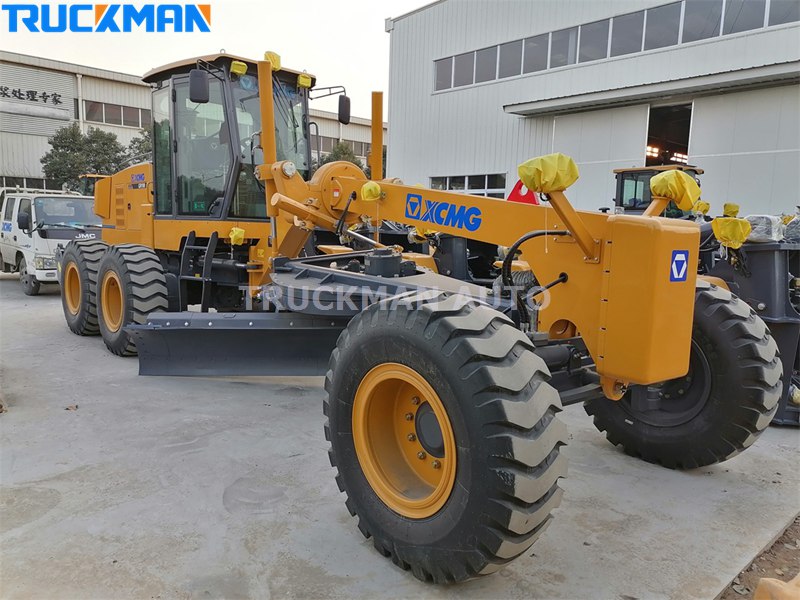

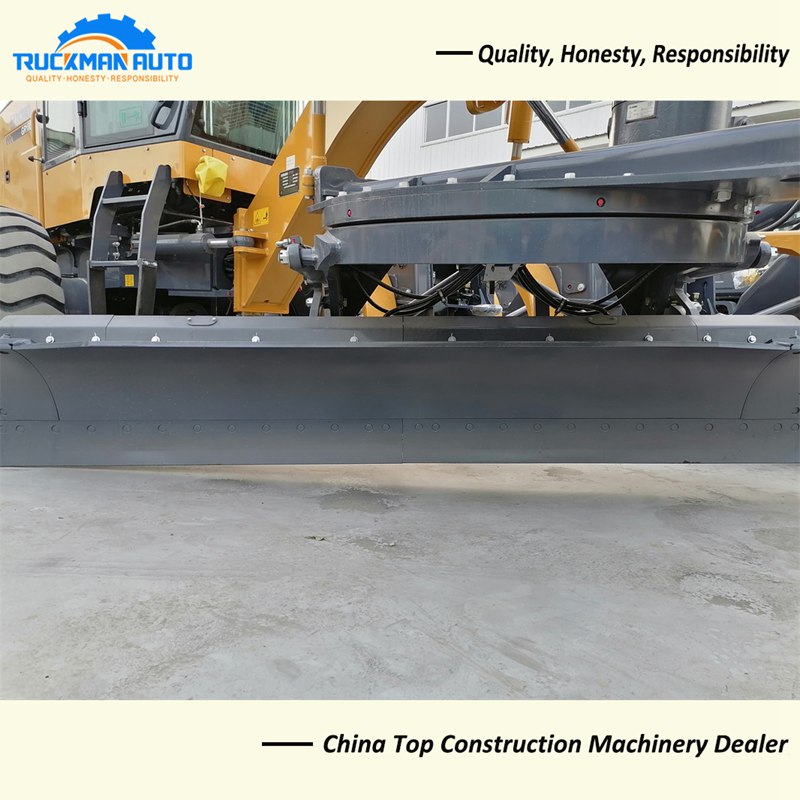

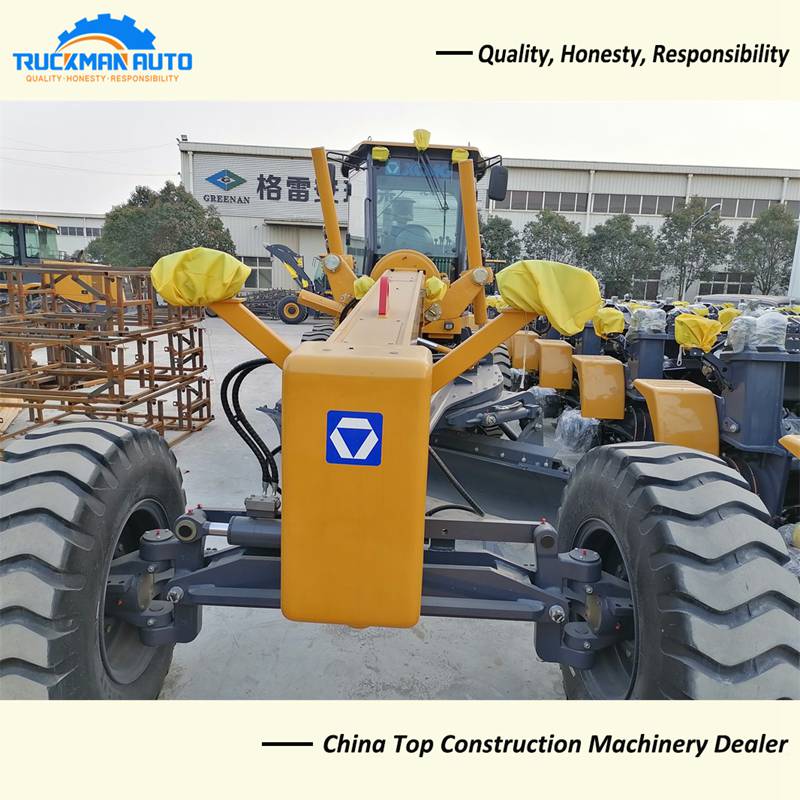

XCMG 190HP GR180 Motor Grader
XCMG 190HP GR180 Motor Grader Features
The XCMG GR180 motor grader take measures such as vibration elimination, sound absorption and sound insulation to reduce the internal and external noise of the cab.
-. The multiple optional parts expand the performance and working scope of machine.
-. The steering load-sensing system is applied and the main hydraulic units adopt international products to guarantee the system stability and reliability.
XCMG 190HP GR180 Motor Grader Specification
|
Description |
Parameter Value |
|
Product Name |
XCMG 190HP GR180 Motor Grader |
|
Application |
Ground leveling for roads, airports, farmland, etc. |
|
Machine Weight |
15,400kg |
|
Engine |
6CTA8.3-C190, 190HP, EURO II |
|
Cabin |
With A/C, luxury model |
|
Gearbox |
6 forward and 3 reverse gear |
|
Maximum Climb Capacity |
20° |
|
Minimum Turning Radius |
7.3m |
|
Traction Force F = 0.75 |
79kN |
|
Forward Speed |
5、8、11、19、23、38km/h |
|
Tire |
17.5-25 |
|
Dimension |
9700x2580x3550mm |
The XCMG 190HP GR180 motor grader specification only for your reference, we will recommend other model XCMG motor grader basic your request.
XCMG 190HP GR180 Motor Grader Details
XCMG GR180 motor grader adopt the articulated frame, with front wheel steering, small turning radius, manoeuvrability. Adjustable console and seat, reasonable arrangement of control handles and instruments, easy to use, improved driving comfort.
