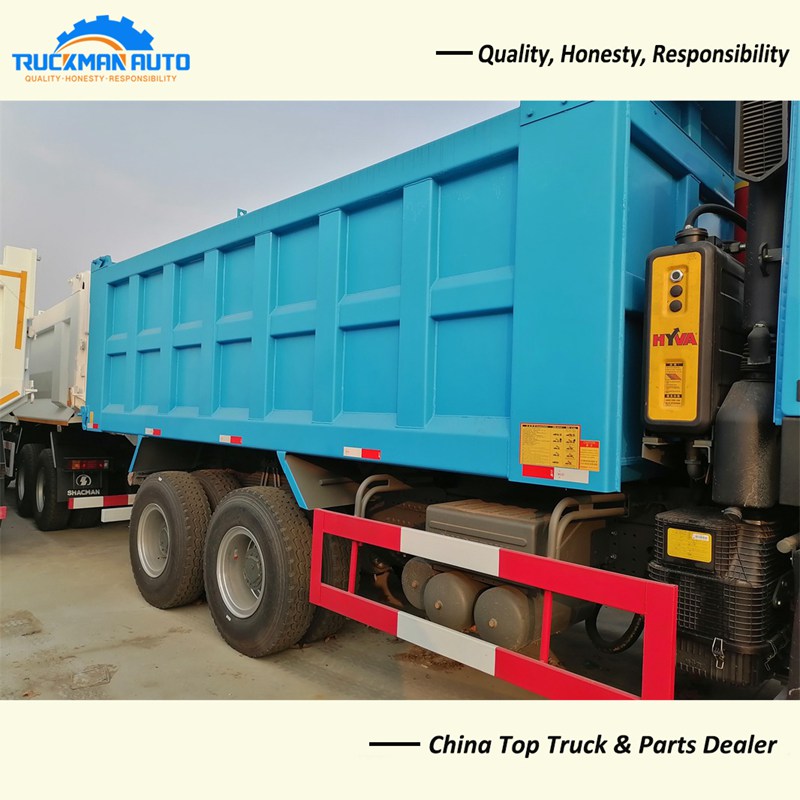

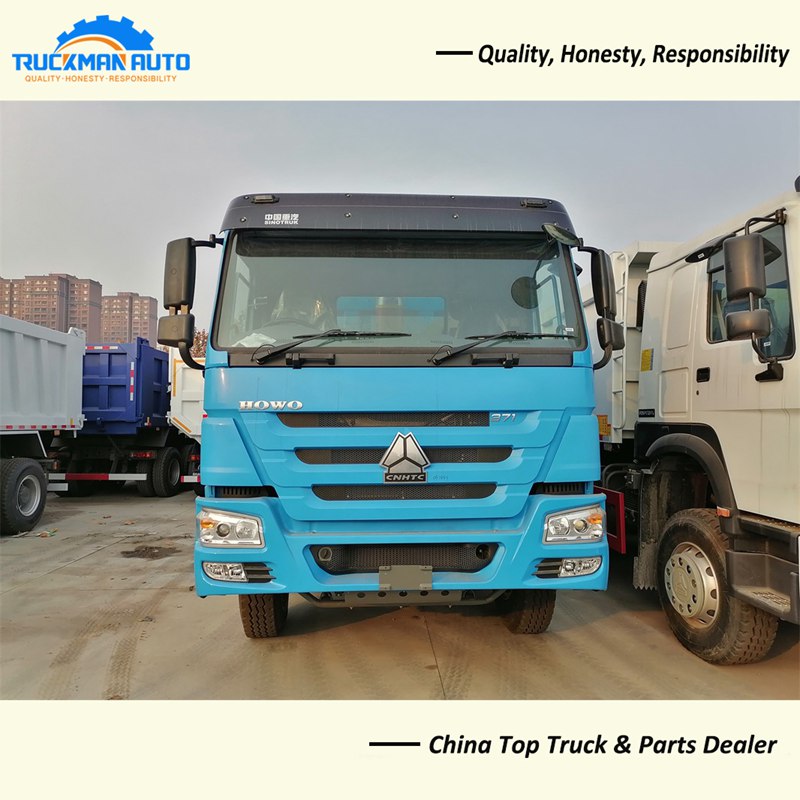

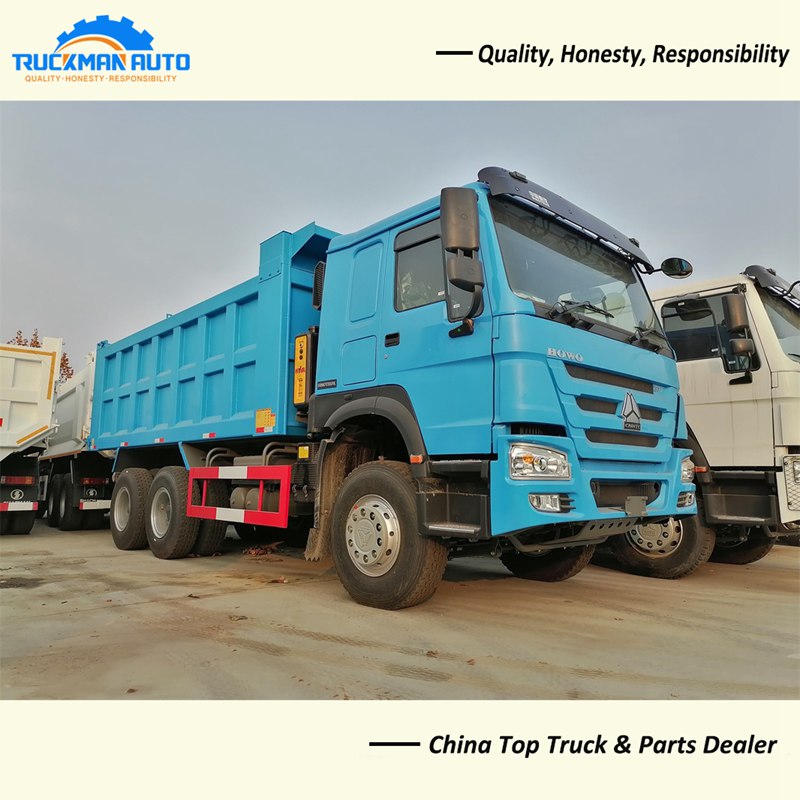

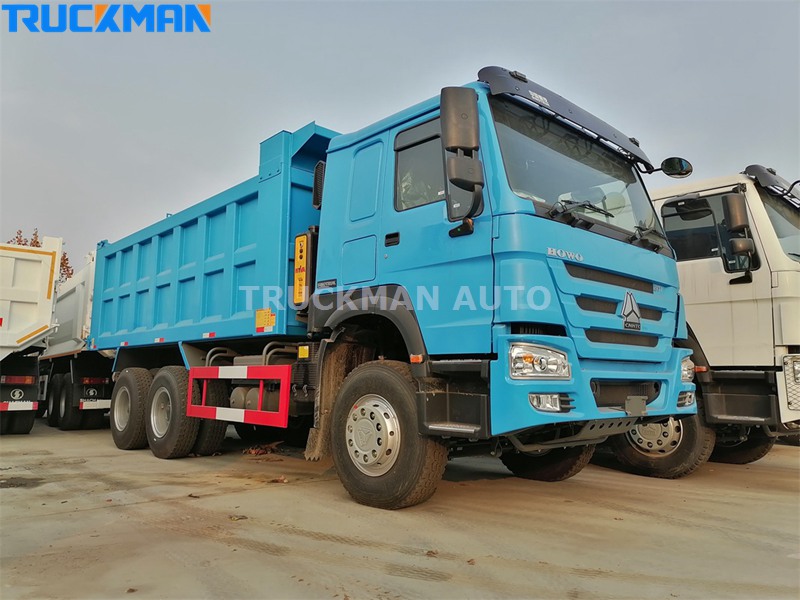

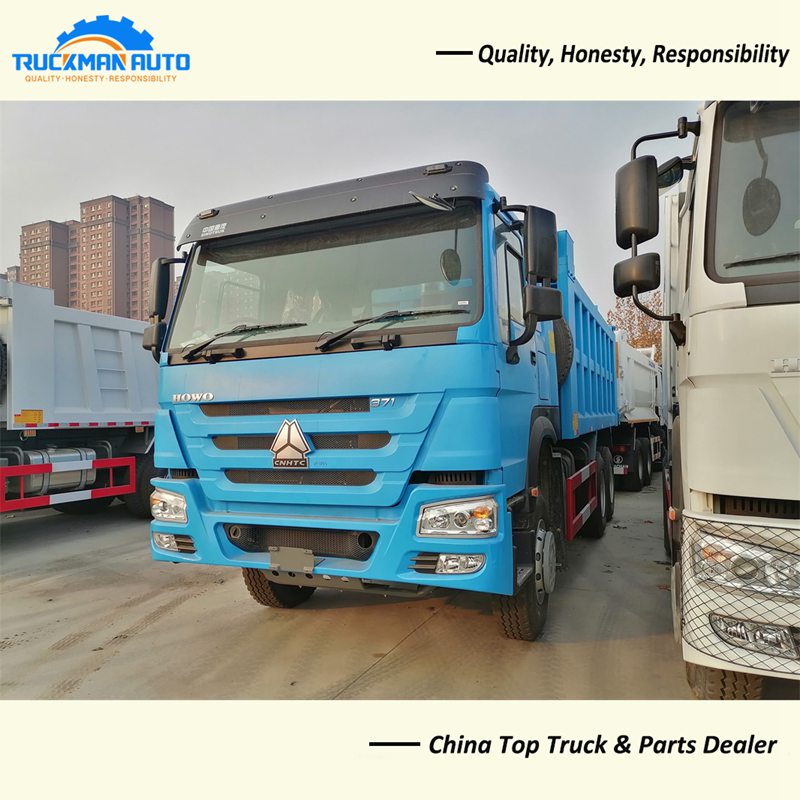

SINOTRUK HOWO 25 Tons Tipper Truck

SINOTRUK HOWO 25 Tons Tipper Truck
SINOTRUK HOWO 25 Tons Tipper Truck
SINOTRUK HOWO 25 Tons Tipper Truck
SINOTRUK HOWO 25 Tons Tipper Truck
SINOTRUK HOWO 25 Tons Tipper Truck
SINOTRUK HOWO 25 Tons Tipper Truck
Product Name : SINOTRUK HOWO 25 Tons Tipper Truck
Product ID : ZZ3257N3647B1
Engine : WD615.47, 371HP
Gearbox : 10 forward and 2 reverse
Cabin : With one bed, A/C
Tire : 315/80R22.5, 10+1 pcs
Cargo Box : 5600x2300x1500mm
Directions

SINOTRUK HOWO 25 Tons Tipper Truck Features



The SINOTRUK HOWO tipper truck adopts the specification of 315/80R22.5 TRIANGLE brand tires, model number TR668, and the tire load level 154/151, which fully meets the requirements of 25 tons of gross vehicle weight.



-. Adopt oil bath air filter to improve the life and filtration effect of filter.

-. Air damping seats are more comfortable and can relieve fatigue and avoid danger.





SINOTRUK HOWO 25 Tons Tipper Truck Specification



Description

Parameter Value

Product Name

SINOTRUK HOWO 25 Tons Tipper Truck

Application

Transport sand, block, gravel etc

Loading Capacity

25,000kg

Engine

WD615.47, 371HP, EURO II

Cabin

HW76, with one bed, A/C, right hand drive

Gearbox

10 forward and 2 reverse gear

Tire

315/80R22.5, 10+1 pcs, tubeless model

Cargo Box

5600x2300x1500mm

Front Axle

VGD95, 1x9500kg

Driving Axle

HC16, 2x16000kg

Fuel Tank

300L

Dimension

8500x2560x3450mm



The SINOTRUK HOWO 25 tons tipper truck specification only for your reference, we will recommend other model SINOTRUK HOWO tipper truck basic your request.

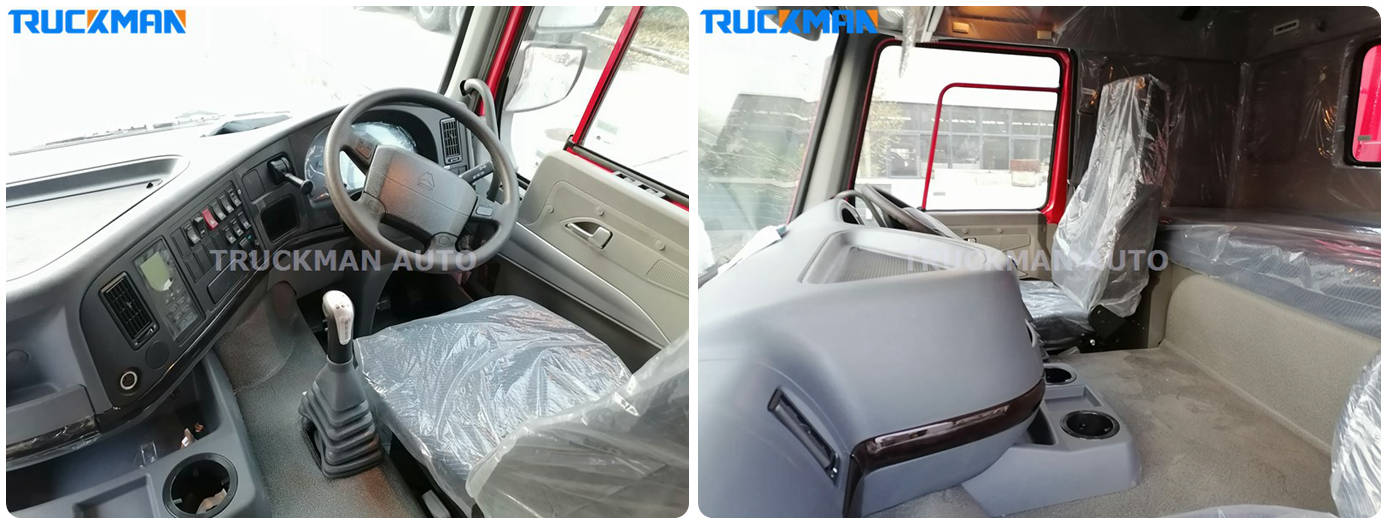

SINOTRUK HOWO 25 Tons Tipper Truck Cabin



SINOTRUK HOWO tipper truck cab adopts 1.2mm specification high-strength steel plate, which increases the overall strength; equipped with a number of adjustable airbag shock absorption seat, extra-wide sleeper and other hardware facilities, which improves the safety and comfort of the vehicle.
