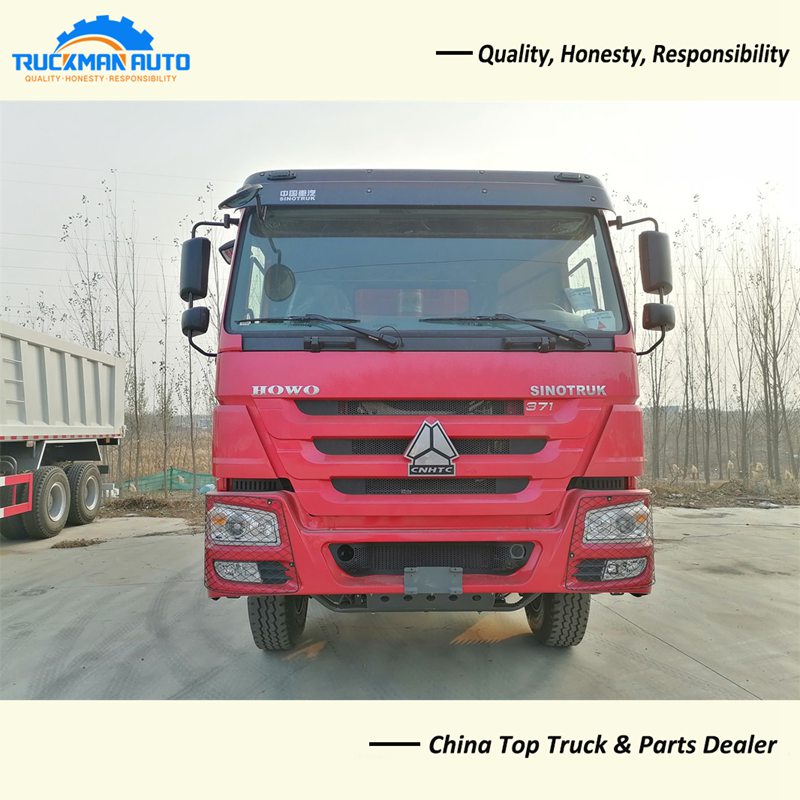

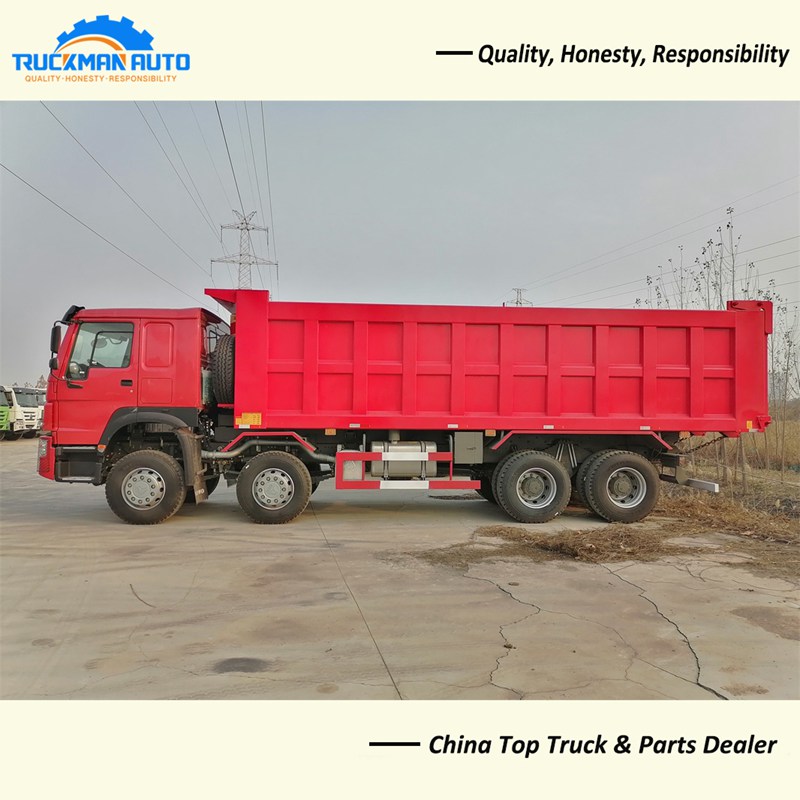

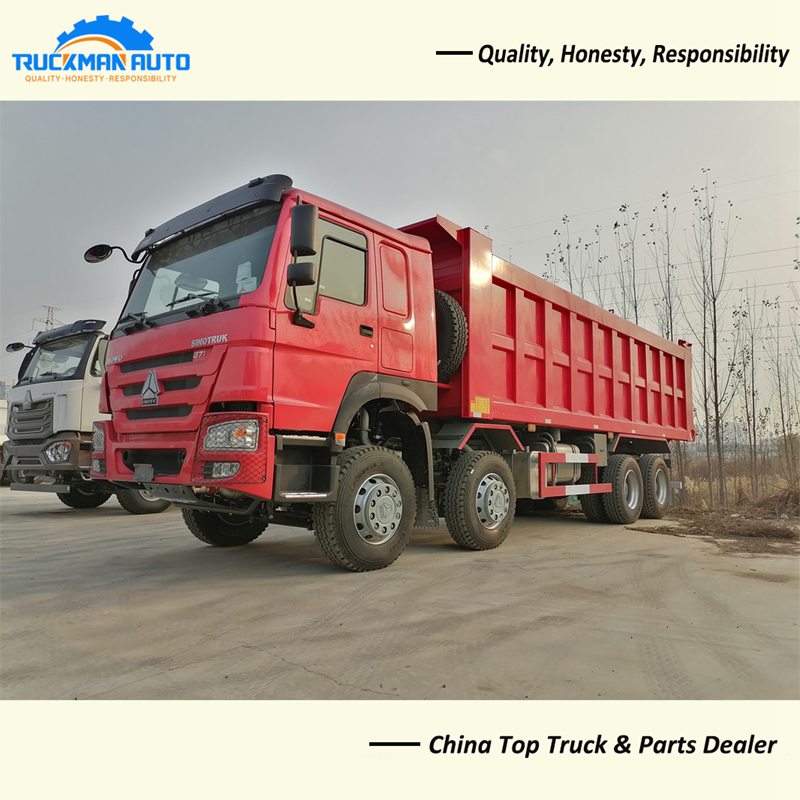

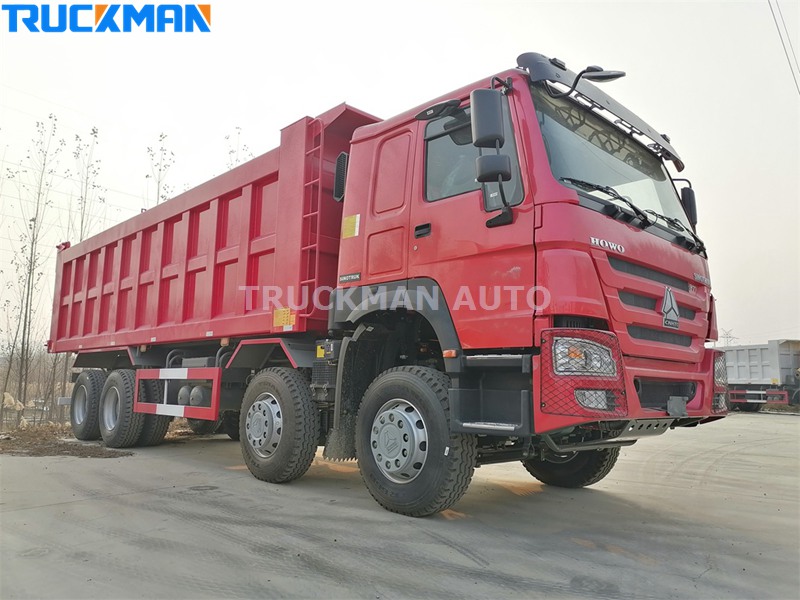

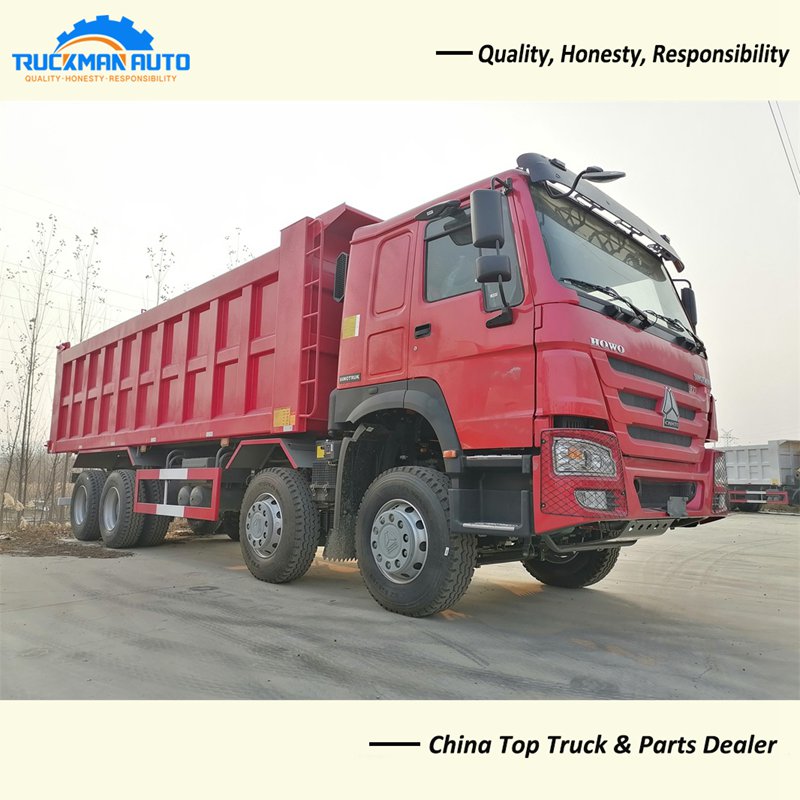

SINOTRUCK 12 Tire Dump Truck For DR Congo

SINOTRUCK 12 Tire Dump Truck For DR Congo
SINOTRUCK 12 Tire Dump Truck For DR Congo
SINOTRUCK 12 Tire Dump Truck For DR Congo
SINOTRUCK 12 Tire Dump Truck For DR Congo
SINOTRUCK 12 Tire Dump Truck For DR Congo
Product Name : SINOTRUCK 12 Tire Dump Truck For DR Congo
Product ID : ZZ3317N3567B1
Engine : 400HP, EURO II
Gearbox : 10 forward and 2 reverse gear
Cabin : With one bed, A/C
Tire : 12.00R20, 12+1 pcs
Cargo Box : 7300x2300x1500mm
Directions

SINOTRUCK 12 Tire Dump Truck Features



SINOTRUCK dump truck driving type is 8x4, with 2 steering axle and 2 driving axle. The steering axle loading capacity is 2x9500kg, driving axle loading capacity is 2x16000kg.



-. Adopt the new model 400HP engine, WEICHAI brand, more reliable.

-. Heavy duty loading capacity chassis, superb stress tolerance.





SINOTRUCK 12 Tire Dump Truck Specification



Description

Parameter Value

Product Name

SINOTRUCK 12 Tire Dump Truck

Application

Transport sand, block, gravel etc

Loading Capacity

50,000kg

Engine

WP12.400E201, 400HP, EURO II

Cabin

HW76, with one bed, A/C, left hand drive

Gearbox

HW19710, 10 forward and 2 reverse gear

Tire

12.00R20, 12+1 pcs, radial model

Cargo Box

7300x2300x1500mm, bottom 8mm, side 6mm

Front Axle

9.5 ton, 2x9500kg

Driving Axle

16 ton, 2x16000kg

Fuel Tank

400L

Dimension

10500x2560x3450mm



The SINOTRUCK 12 tire dump truck specification only for your reference, we will recommend other model SINOTRUCK dump truck basic your request.

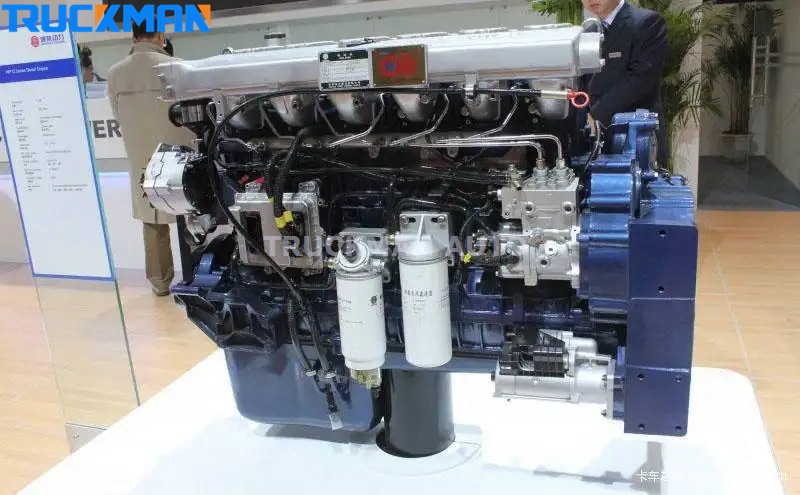

SINOTRUCK 12 Tire Dump Truck New Model Engine



The SINOTRUCK dump truck engine is WP12.400E201, 400HP. WEICHAI brand, with 6 cylinder and maximum torque of 1920N.m. Powerful, low fuel consumption and high stability, meet the tough conditions of dump trucks.
