SHACMAN H3000 6x4 Dump Truck For Guinea

SHACMAN H3000 6x4 Dump Truck For Guinea
SHACMAN H3000 6x4 Dump Truck For Guinea
SHACMAN H3000 6x4 Dump Truck For Guinea
SHACMAN H3000 6x4 Dump Truck For Guinea
SHACMAN H3000 6x4 Dump Truck For Guinea
SHACMAN H3000 6x4 Dump Truck For Guinea
Product Name : SHACMAN H3000 6x4 Dump Truck For Guinea
Product ID : SX3255DU364
Engine : 400HP, EURO II
Cabin : With one bed, A/C
Gearbox : 10 forward and 2 reverse gear
Tire : 12.00R20, 10+1 pcs
Cargo Box : 5400x2300x1500mm
Directions

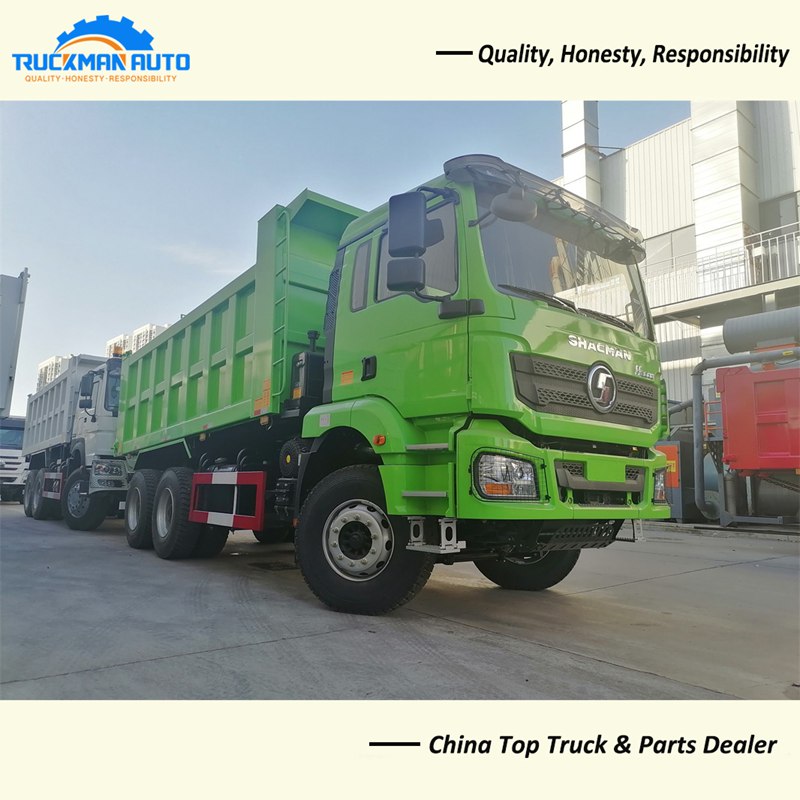

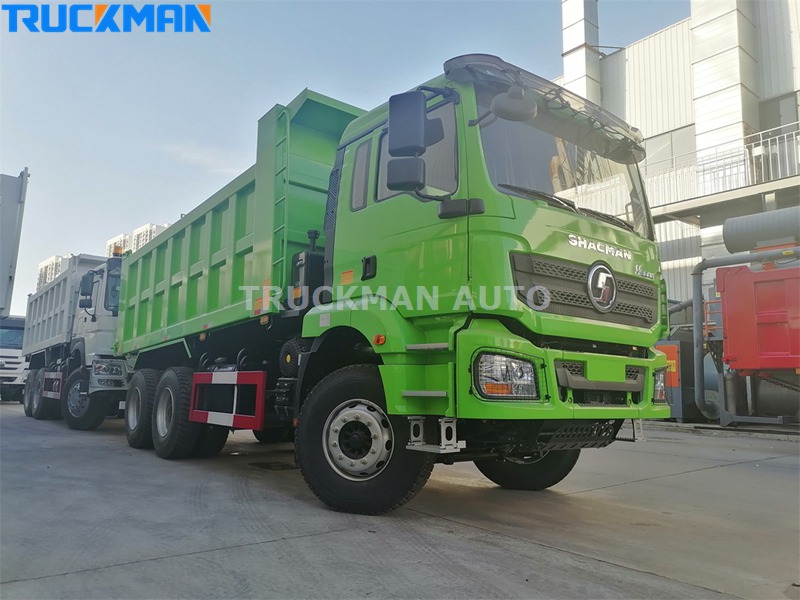

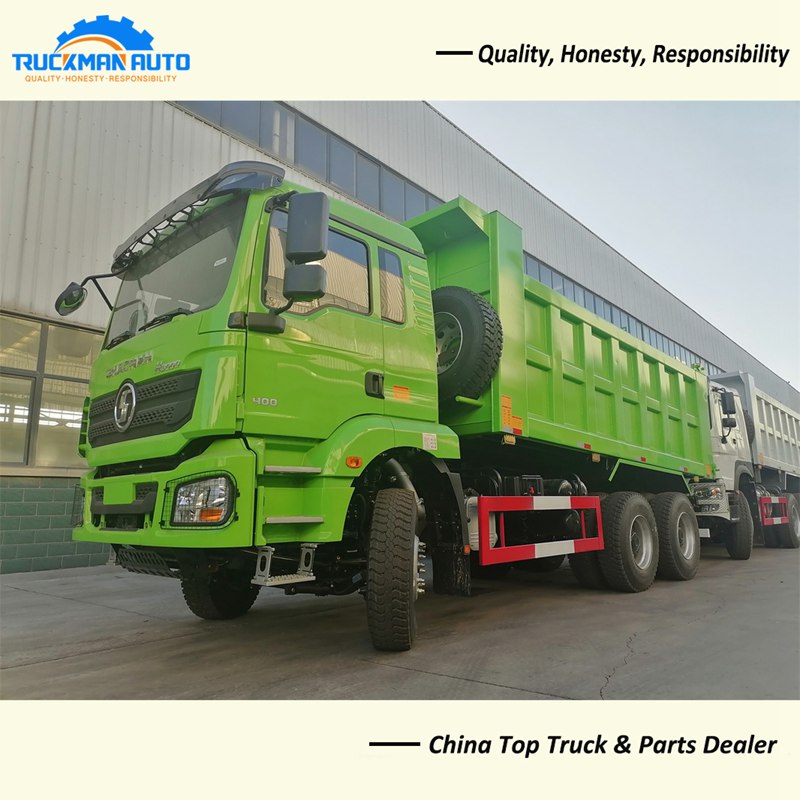

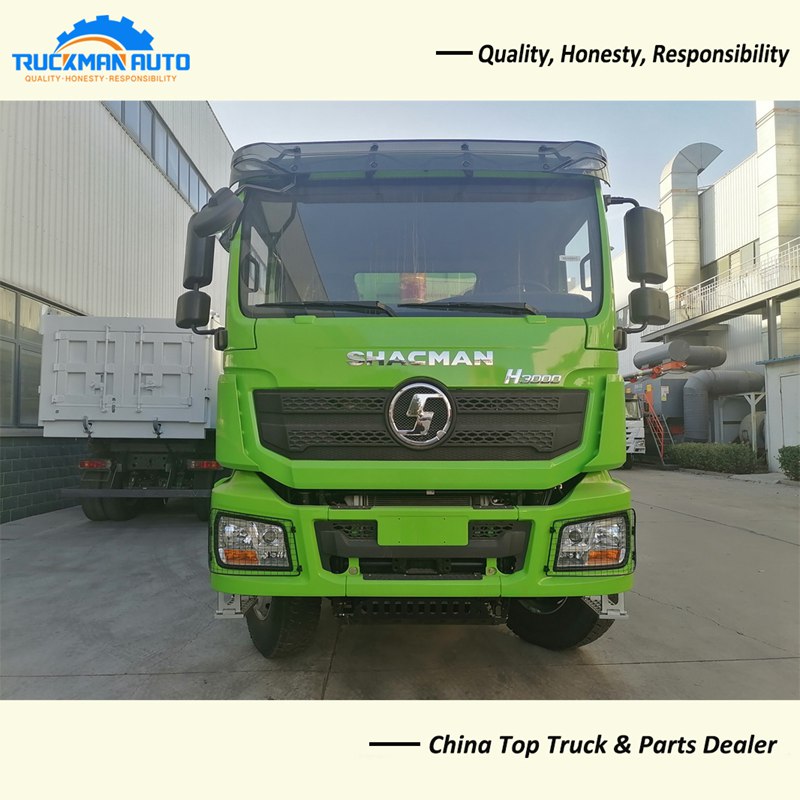

SHACMAN H3000 6x4 Dump Truck Features



SHACMAN 10 wheel dump truck is H3000 model, there are have F2000, F3000 and X3000 model dump truck. Can optional the WEICHAI and CUMMINS brand engine.



-. With 4 point air suspension cabin, good damping and comfortable driving.

-. 400HP engine, WEICHAI brand. Optional EVB.





SHACMAN H3000 6x4 Dump Truck Specification



Description

Parameter Value

Product Name

SHACMAN H3000 6x4 Dump Truck

Application

Transport sand, gravel and stone etc

Loading Capacity

30,000kg

Engine

WP12.400E201, 400HP, EURO II

Cabin

H3000, with one bed, A/C, left hand drive

Gearbox

10 forward and 2 reverse gear

Tire

12.00R20, 10+1 pcs, radial model

Cargo Box

5400x2300x1500mm, bottom 8mm, side 6mm

Front Axle

9.5 ton, 1x9500kg, MAN tech axle

Driving Axle

16 ton, 2x16000kg, MAN tech axle

Fuel Tank

320L

Dimension

8560x2560x3450mm



The SHACMAN H3000 6x4 dump truck specification only for your reference, we will recommend other model SHACMAN 6x4 dump truck basic your request.



SHACMAN H3000 6x4 Dump Truck Chassis

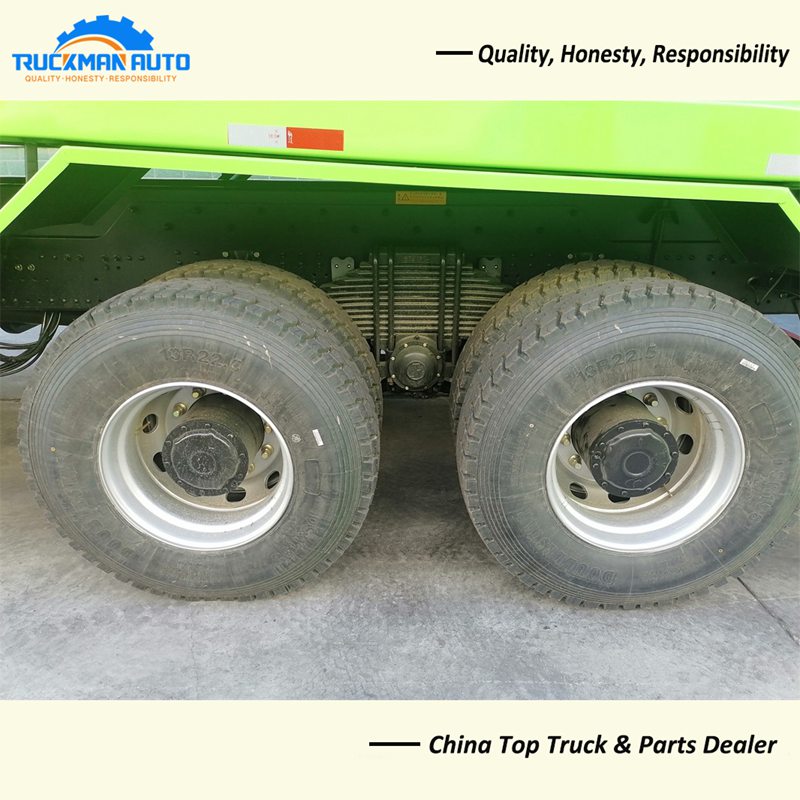

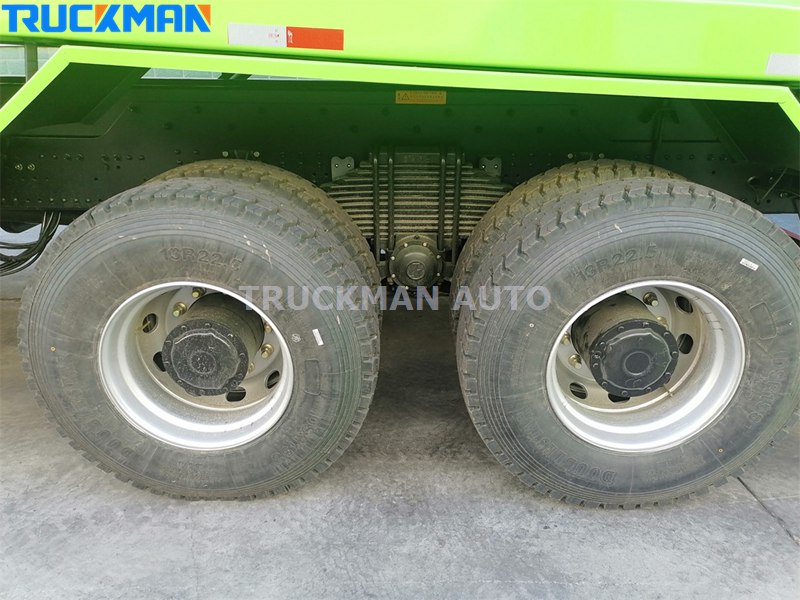

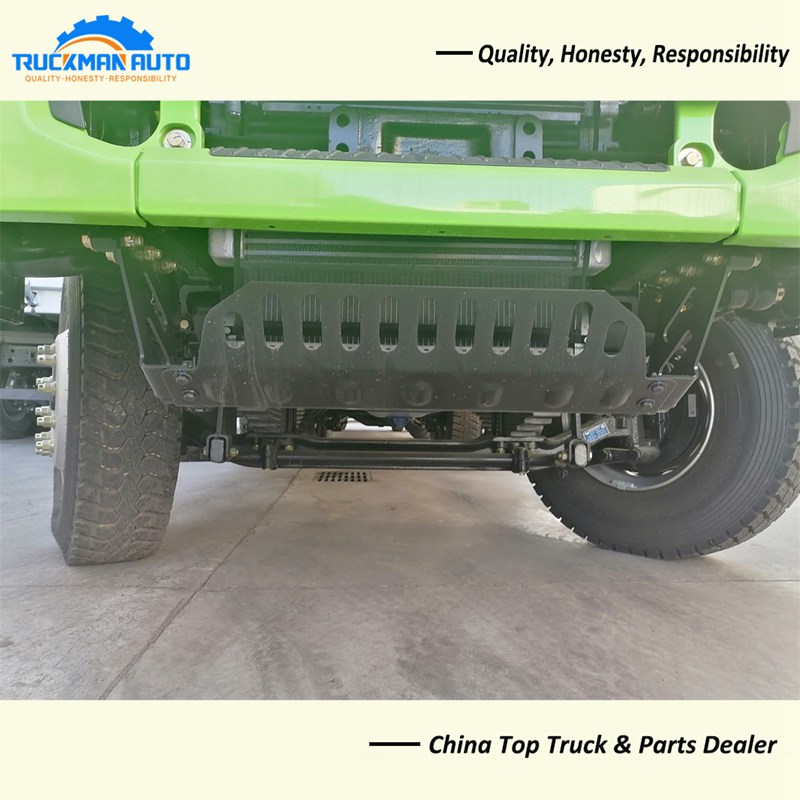

The SHACMAN H3000 dump truck has a 4 pcs U bolt + multi leaf springs and an all-steel fender construction. The front axle is a pair of 9.5-tonne MAN steer axles and the rear axle is a 16-tonne parallel-mounted duplex wheelside reduction axle with a main reduction ratio of 5.262. Ideal for heavy haulage.
