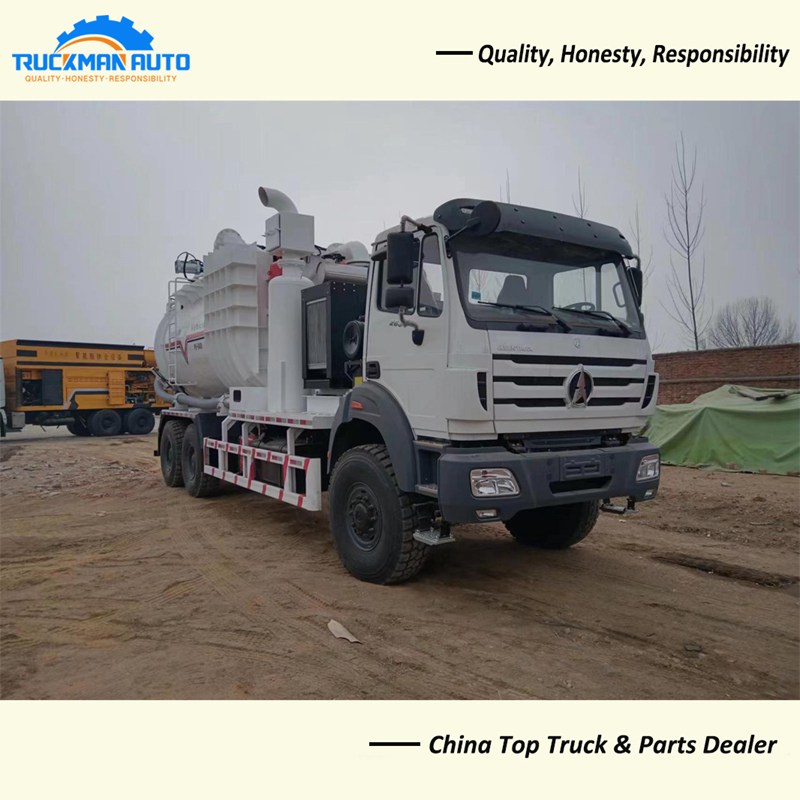

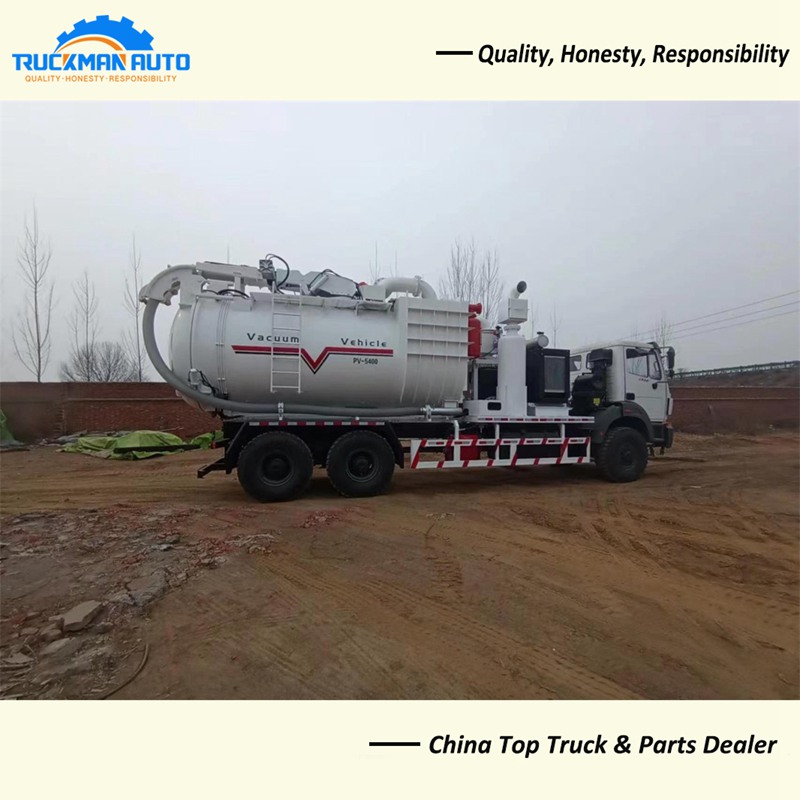

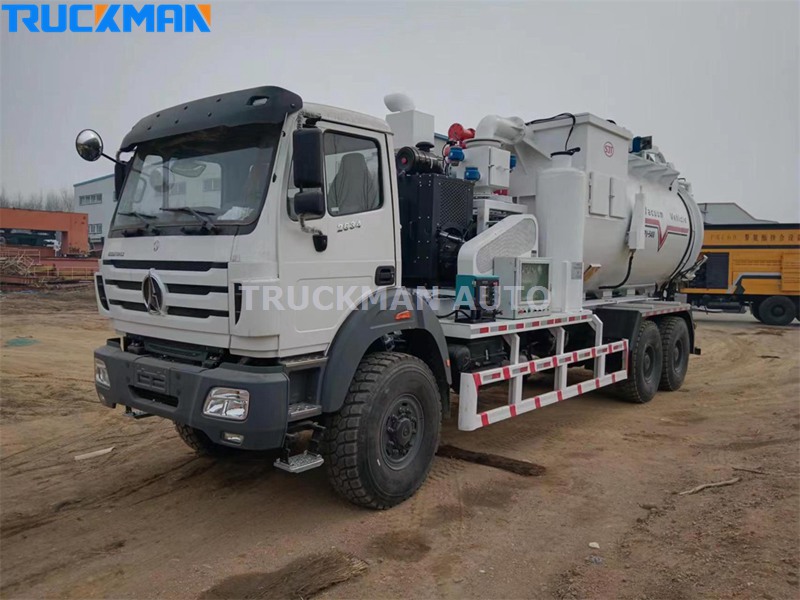

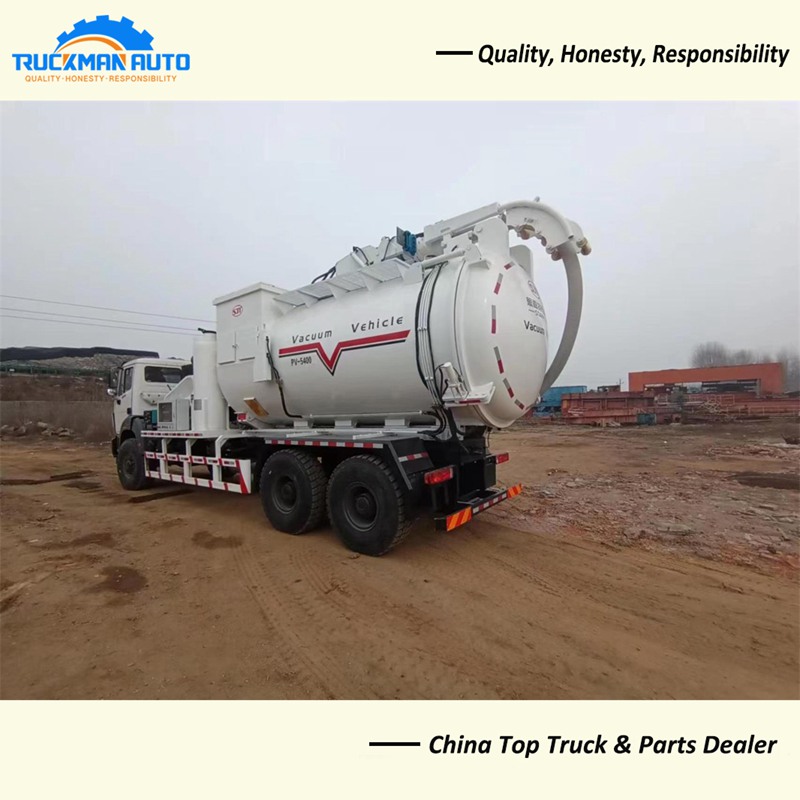

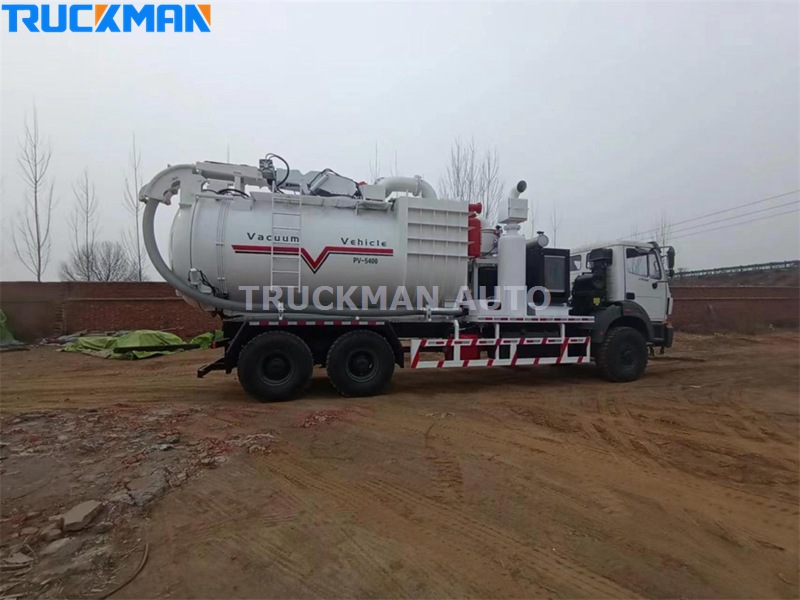

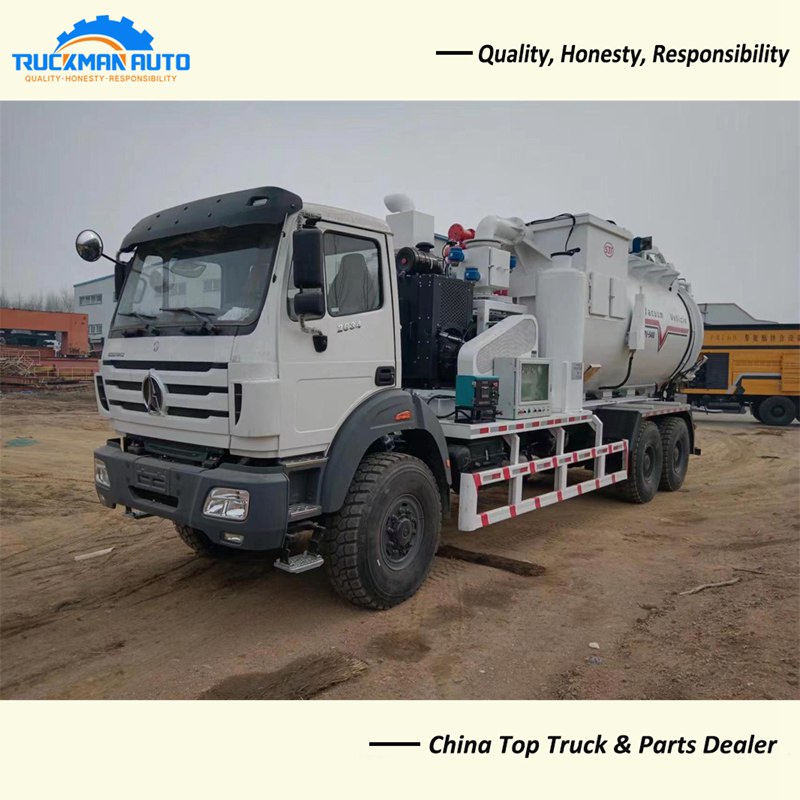

BEIBEN 6x6 Vacuum Suction Truck

BEIBEN 6x6 Vacuum Suction Truck
BEIBEN 6x6 Vacuum Suction Truck
BEIBEN 6x6 Vacuum Suction Truck
BEIBEN 6x6 Vacuum Suction Truck
BEIBEN 6x6 Vacuum Suction Truck
BEIBEN 6x6 Vacuum Suction Truck
Product Name : BEIBEN 6x6 Vacuum Suction Truck
Product ID : 2634
Engine : 340HP, EURO 3
Gearbox : 10 forward and 2 reverse
Cabin : With one bed, A/C
Tire : 12R24, diesel tire
Tanker Body : 20m3
Directions

BEIBEN 6x6 Vacuum Suction Truck Features



The BEIBEN 6x6 vacuum suction truck uses the principle of pneumatic conveying to collect and transport bulk materials using air as a carrier. It is used in steel mills for sintered material suction and discharge or where bulk material suction and discharge is required..



-. Adopt the combination cone-rear door blowing system.

-. Adopt double-tube technology to ensure that the material does not accumulate at the double casing.





BEIBEN 6x6 Vacuum Suction Truck Specification



Description

Parameter Value

Product Name

BEIBEN 6x6 Vacuum Suction Truck

Application

Collection and delivery of bulk materials.

Loading Capacity

25,000kg

Engine

WP10.340E32, 340HP, EURO II

Cabin

With A/C, one bed. NG80B model

Gearbox

10 forward and 2 reverse gear

Driving Axle

2x16000kg

Tire

12R24, 6+1 pcs

Tank capacity

12m3

Fuel Tank

400L

Max Speed

75km/h

Dimension

10850x2580x4460mm



The BEIBEN 6x6 vacuum suction truck specification only for your reference, we will recommend other model BEIBEN vacuum suction truck basic your request.



BEIBEN 6x6 Vacuum Suction Truck Tanker Body Detail



1. Adopt hydraulic vibrator to vibrate the main material tank, the sticky material is fully stripped from the main material tank, and the discharge is more thorough.



2. Adopt the standard head fully open tailgate design to make the discharge of materials more efficient, efficient discharge of materials at the same time, cleaning and maintenance of the tank is easier.



3. Adopt fluidization valve to ensure that the material is fully fluidized in the process of discharging, so that the material can be discharged efficiently under the action of compressed air with the working temperature of 133-178 degree Celsius.
