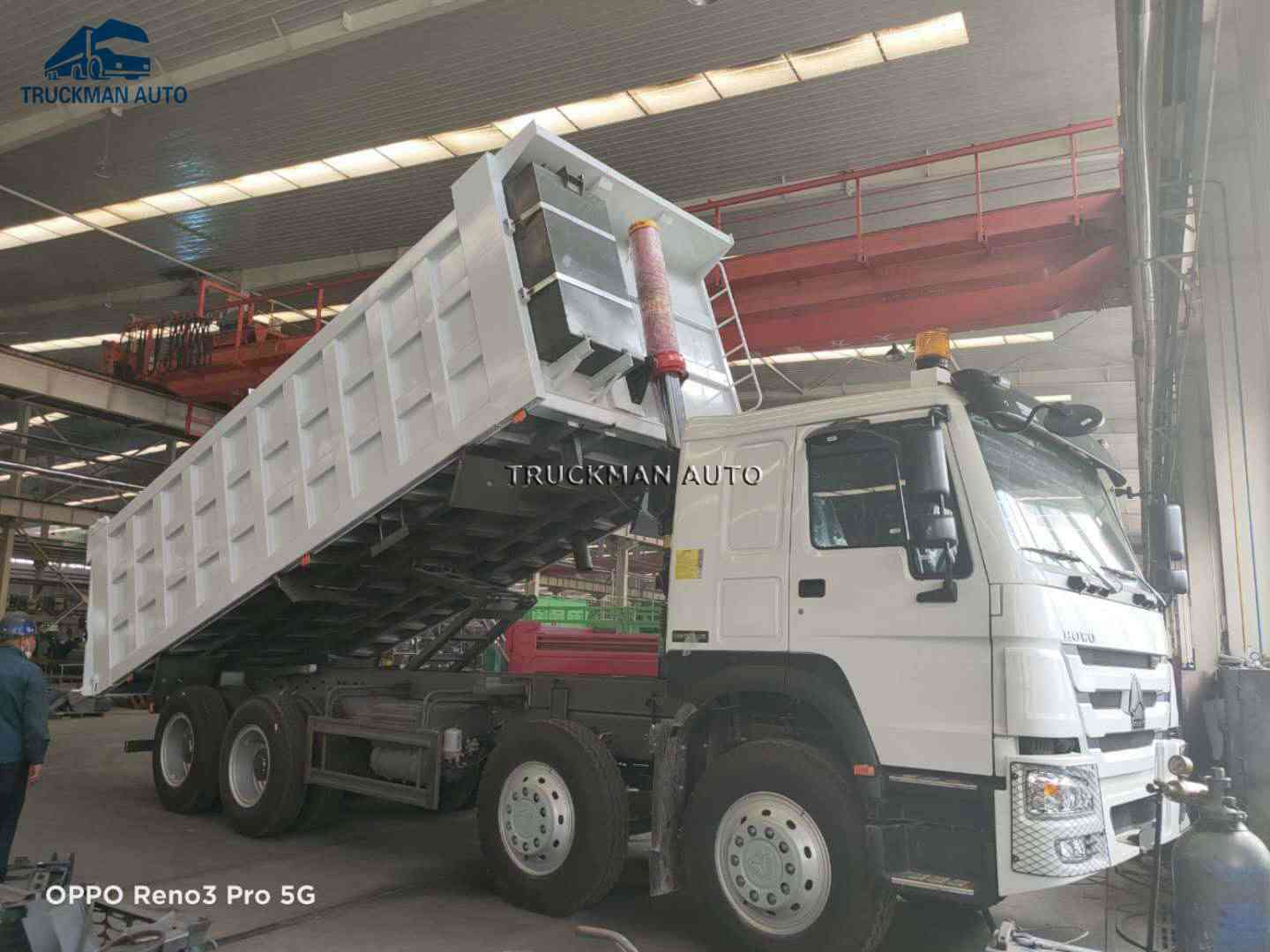

371HP SINOTRUCK Tipper Truck For Mauritania
-1. Main Information For SINOTRUCK Tipper Truck.
12 wheel SINOTRUCK tipper truck is very popular in Mauritania, according to local customers request, we choose the 12.00R24 model big tire, intercooler, oil pan protect cover for our sinotruck tipper truck. Also add the small door into the rear door, transport the long goods.
-2. Main Specification For SINOTRUCK Tipper Truck.
|
Model |
SINOTRUCK Tipper Truck |
|
Engine |
WD615.47. 371HP |
|
Cabin |
HW76 cabin, one bed, A/C. |
|
Gearbox |
HW19710, 10 forward and 2 reverse gear |
|
Tire |
12.00R24, 12 spare tire. |
|
Cargo Box |
7800x2300x1700mm, with small rear door |
|
Loading Tons |
40-50 Tons |
|
Fuel Tank Capacity |
400L |
|
Max Speed |
75km/h |

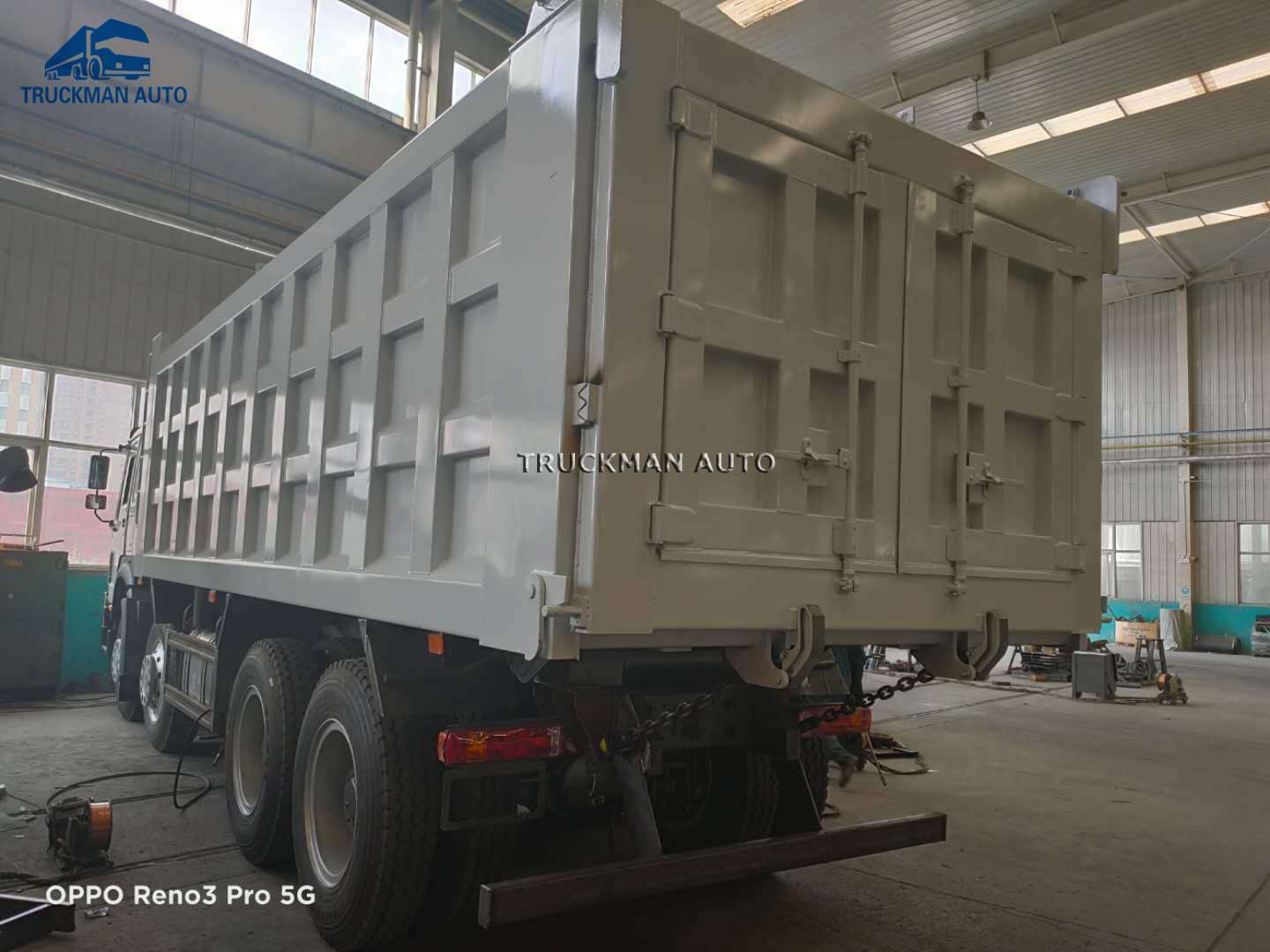

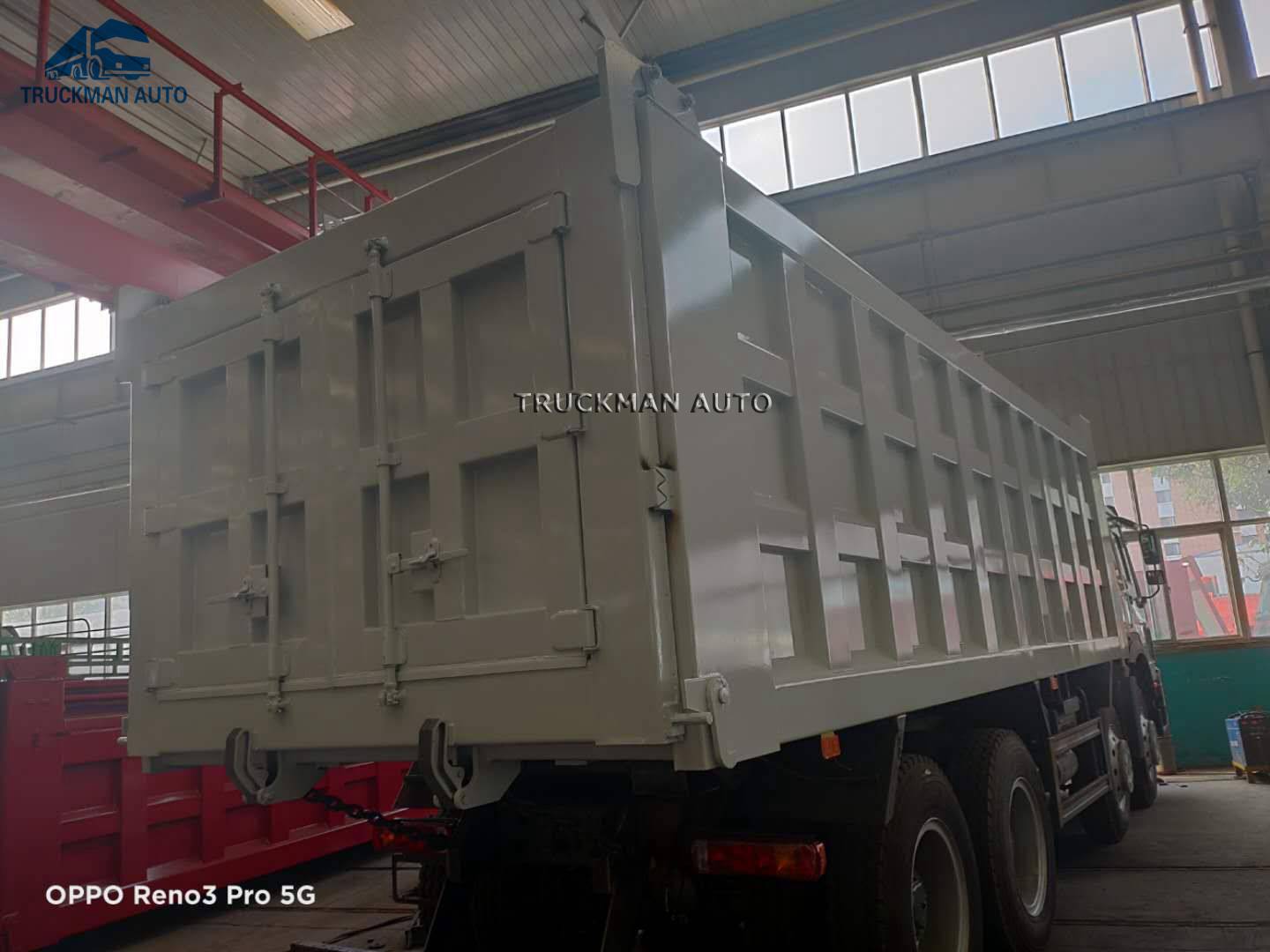

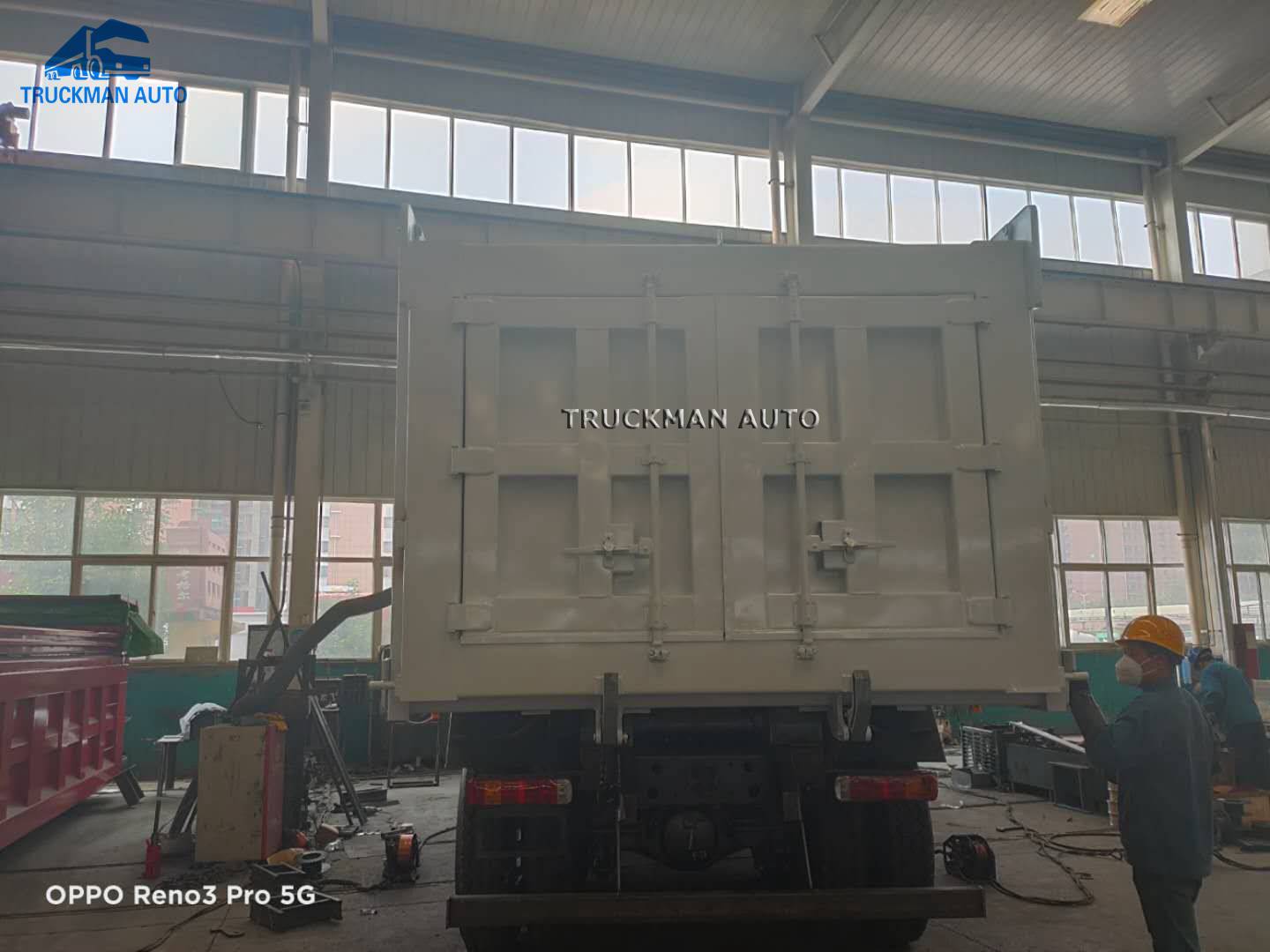

-3. SINOTRUCK Tipper Truck Cargo Box Information.
Cargo Box Detail.
|
Size |
7800x2300x1700mm, with small rear door |
|
Material |
Q345B, manganese plate |
|
Thickness |
Bottom 8mm, side 6mm. |
|
Loading Goods |
Sand, brick, gravel etc |
|
Lifting System |
Front hydraulic lifting |
|
Loading Tons |
40-50 Tons |
-. The cargo box have many kind of material, such as the normal plate, manganese plate, wearable plate and high strength steel.
-. According to the application, the cargo box have normal shape and U shape.
-. Thickness of cargo box could design according to loading goods, if loading sand, gravel, brick etc. The best thickness of cargo box suggest choose the side 6mm, bottom 8mm. If need loading big stone, suggest choose the wearable plate, and thickness of cargo box is side 10mm, bottom 12mm.
-. Lifting cylinder system also very important. Usually 6x4 tipper truck we suggest customers choose the middle type lifting system, and for 8x4 tipper truck, the front hydraulic lifting will more suitable.
